1 Safety Tips
It is expressly prohibited to modify or change products for safety reasons，repair or replacement
only allows the use of accessories specified by the manufacturer.
1.1 Explosion may result in death or serious injury.
When installing equipment in an explosive atmosphere, be sure to follow applicable local, national,
international standards, codes, and procedures. Be sure to install the equipment in Intrinsically safe
or non-flammable site operating procedures.
1.2 Process leaks can cause serious injury or death.
Care should be taken to lift the transmitter. If the process seal is damaged, the medium may leak at
the joint.
1.3 Failure to follow safe installation guidelines may result in death or serious injury.
The operations described in this manual are performed by professionally trained and qualified
professionals or end-user specialized professionals to complete.
2 Product Manual

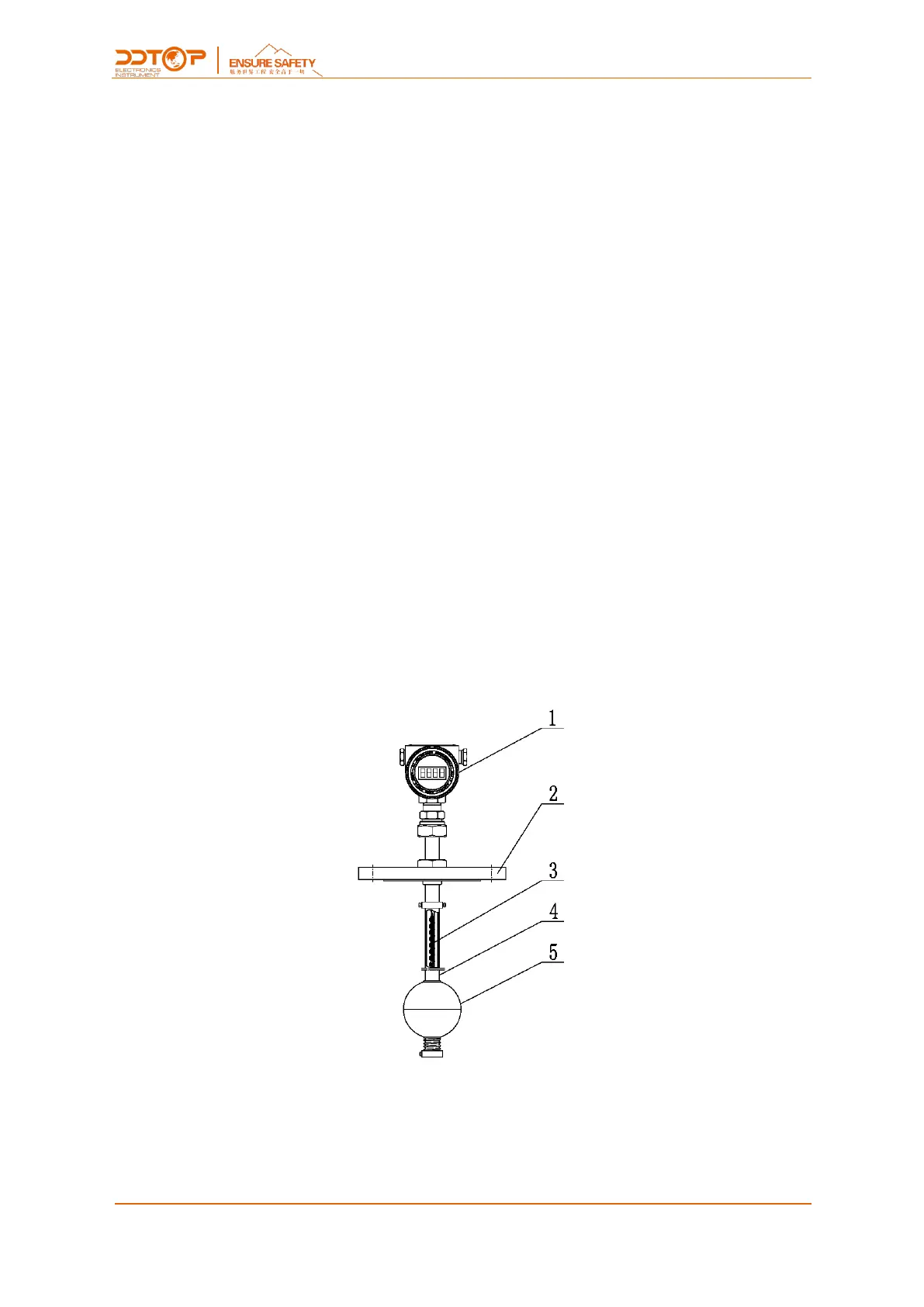

2.1 Product Basic Structure-Figure 1
Figure 1 Product Basic Structure
1. Meter head assembly, converter circuit and LCD screen
2. Flange, connection with equipment
