201
3
Complete
2

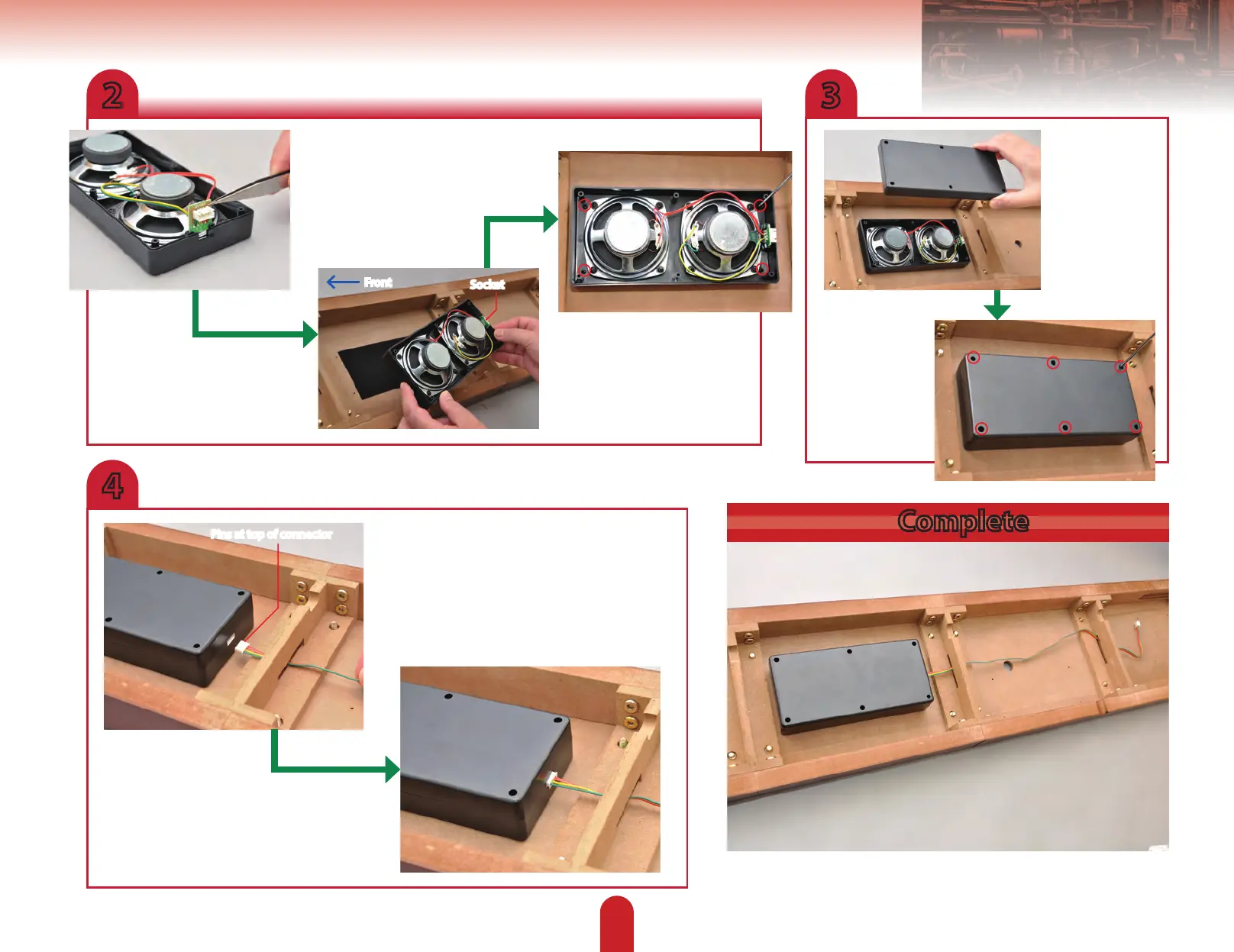

Lower the speaker
cover onto the
speaker. It does
not matter which
way round it goes,
but be careful not
to trap any wiring.
Secure the cover
with six more
speaker screws.
4
Use tweezers to slot
the speaker’s circuit
board into the mount
at the end of the
speaker housing.
Use four of the speaker screws
to secure it.
Lay the speaker down over
the protector, so that the
four holes at the edges
match those in the plate.
Feed the speaker cable through the
slot in the frame joint, then plug its
connector into the socket.
Make sure the part is tted securely.
Front
Socket
Pins at top of connector
To Next Page
