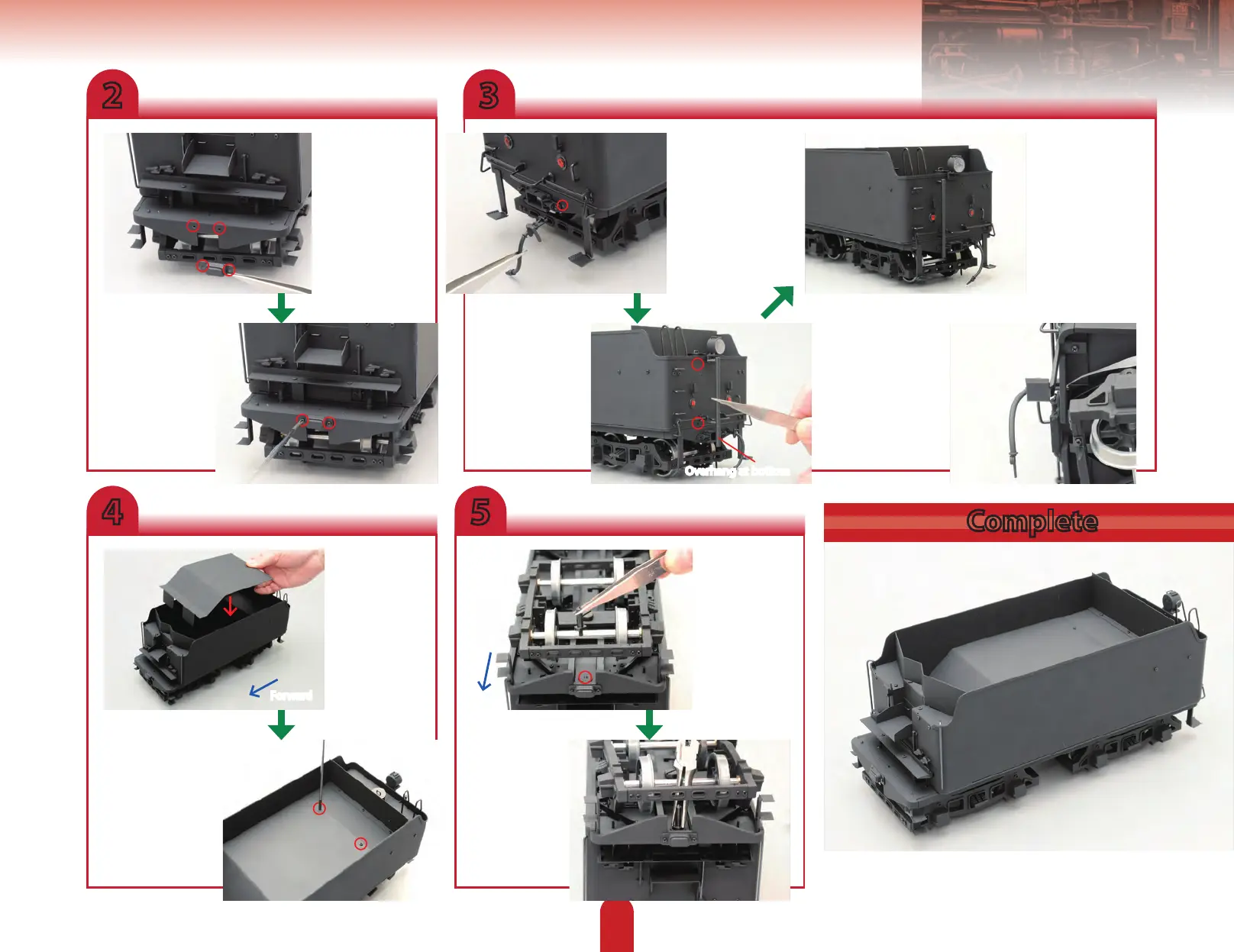

De Agostini Model Space C57 - Page 4

191
Your assembly
should look like
this.
Complete
Instant adhesive
54
2
Lower the
tender upper
plate into the
top of the
tender, as
shown.
Turn the tender
upside down and
t the drawbar
pin into the
circled hole using
tweezers. You can
remove the front
truck to make
this easier.
Now line up the
buer to the
circled holes at
the front of the
tender. It does
not matter
which way
round it goes.
Use pliers to
tighten the pin
into place.
Use two 2 x 4mm
screws to secure
the upper plate to
the tender via the
circled holes.
Use two more
2 x 4mm screws to
secure the buer
to the tender.
3
Fit the brake hose,
positioned as
shown on the rear
of the tender, into
the circled hole and
secure with SRA.
Once everything
is in place,
reinforce the
brake hose from
the back, using
instant adhesive.
Your assembly
should look
like this.
Now take the
overow pipe
from Stage 81
and use SRA to
secure it via the
two circled holes.
Forward
Front
Overhang at bottom
Complete
