SECOND SECTION

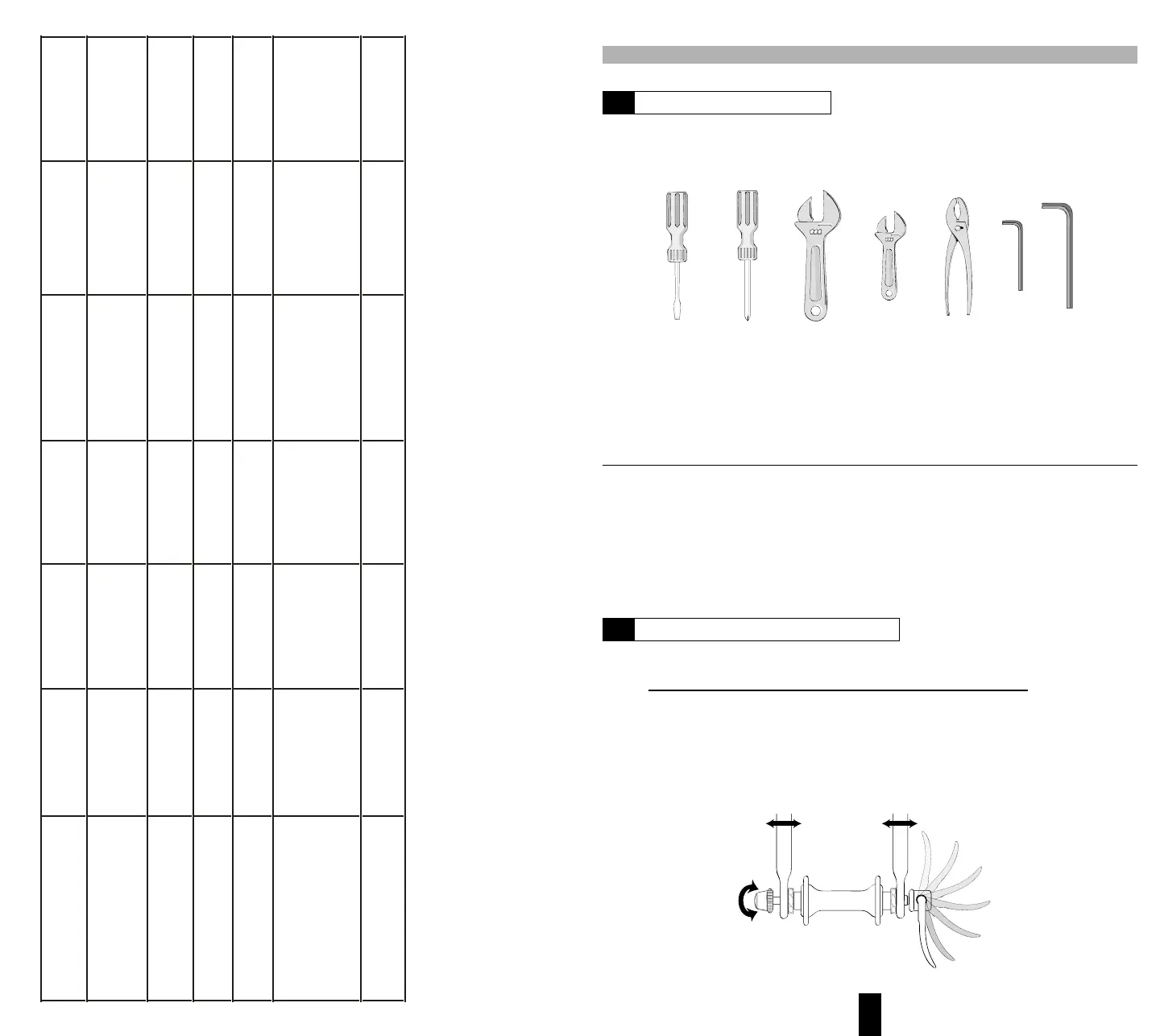

III The necessary tools
To assemble, adjust and repair your bicycle correctly, you should have certain
basic tools:
These tools are essential to carry out basic assembly. They will be useful for you
to carry out adjustments set out in this manual.
DECATHLON ADVICE :
Never forget to take a minimum amount of material when riding
- a chain rivet tool and a chain quick release
- a pump
- a multiple function tool
- tyre lever
IV Assembly and adjustments
1/ Adjust the bolt and quick fastener mechanism
The wheel axe is held in place by the force of the quick fastener pushing against a
counter shaft and pulling the tension adjustment bolt, with a skewer, against the
other counter shaft. The force is controlled by a tension adjustment bolt. Turning
the tension adjustment bolt clockwise increases the force for blocking; turning it
anticlockwise reduces it.
regulation
of force
open closed closed open
open positionopen position
closed positionclosed position
17
Medium size
standard
screwdriver
Phillips
screwdriver
10” adjustable
wrench
6” adjustable
wrench
Pliers Metric
allen wrenchs
Type of bike
Stem /
Handlebar
Stem / Fork Seat/Seat post Seat post/Frame
Front wheel/
Frame
Rear wheel/
Frame
Competition mountain
bike
5 7 8
Quick release or
8/10 5/7 carbon
frame
Quick-release Quick-release
Road Sport/Training 6 6
1 15mm screw 2
9mm screws
6/8 aluminium
frame
Quick-release Quick-release
Road Competition 5/6 6/7
1 15mm screw 2
9mm screws
5/7 carbon frame Quick-release Quick-release
Folding bike: Tilt 9 12 24 Quick release and 7 34 34
B'Original
Easy park 1
screw 20
Other 1
screw 12
Easy park 2
screw 9 Other 1
screw 15
22 Quick-release Quick-release 25/35
Urban sport (nework) 6 6 17
Quick release or
8/10
12/16 or quick
release
22/30 or quick
release
Torque of stem angle adjusting bolt = 18 Nm. if the tightening torque is indicated on the component, use this as a reference point
