DECKED MG3 - Mount Assembly

FLANGED
NUT
ASSEMBLY: MOUNT ASSEMBLY

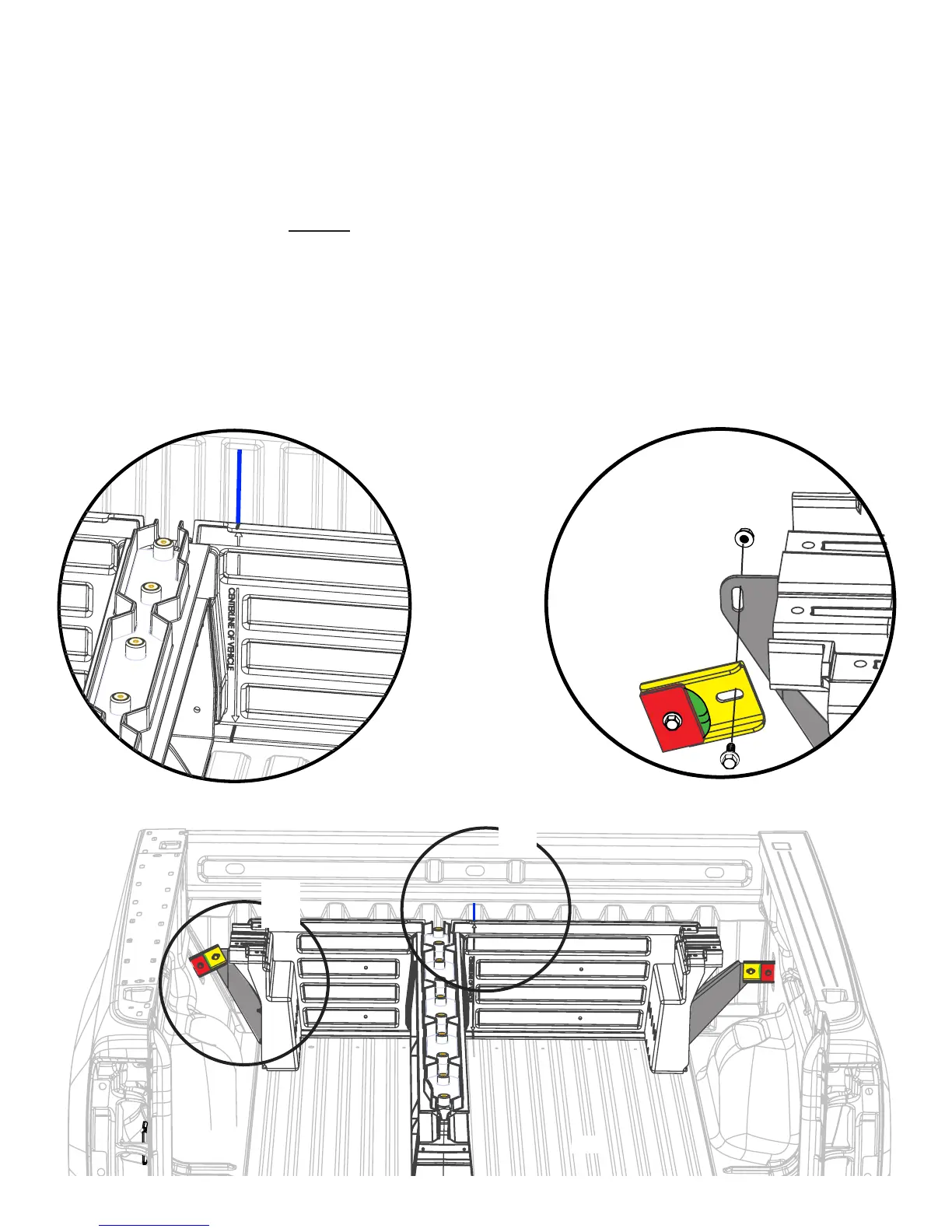

• DETAIL A: While supporting both ends, lift center vert + stud + cabside vert assembly in truck bed.
NOTE: Make sure centerline arrows on cabside vert are aligned with your centerline marks (blue).
• DETAIL B: Place stud brackets cabside of cabside brackets (yellow). Loosely fasten with 3/4" bolt and flanged nut;
BAG PREP-MG34.
• Repeat passenger side.
• Make sure assembly is still on centerline, then securely tighten both sides.
DETAIL B
B
A
DETAIL A
➡
CAB
➡
CAB
3/4" BOLT
MG3 & MG4 | V1 | Page 8
