DECKED MG3 - INSTALL; C-Channel

MG3 & MG4 | V1 | Page 9
INSTALL: CCHANNEL

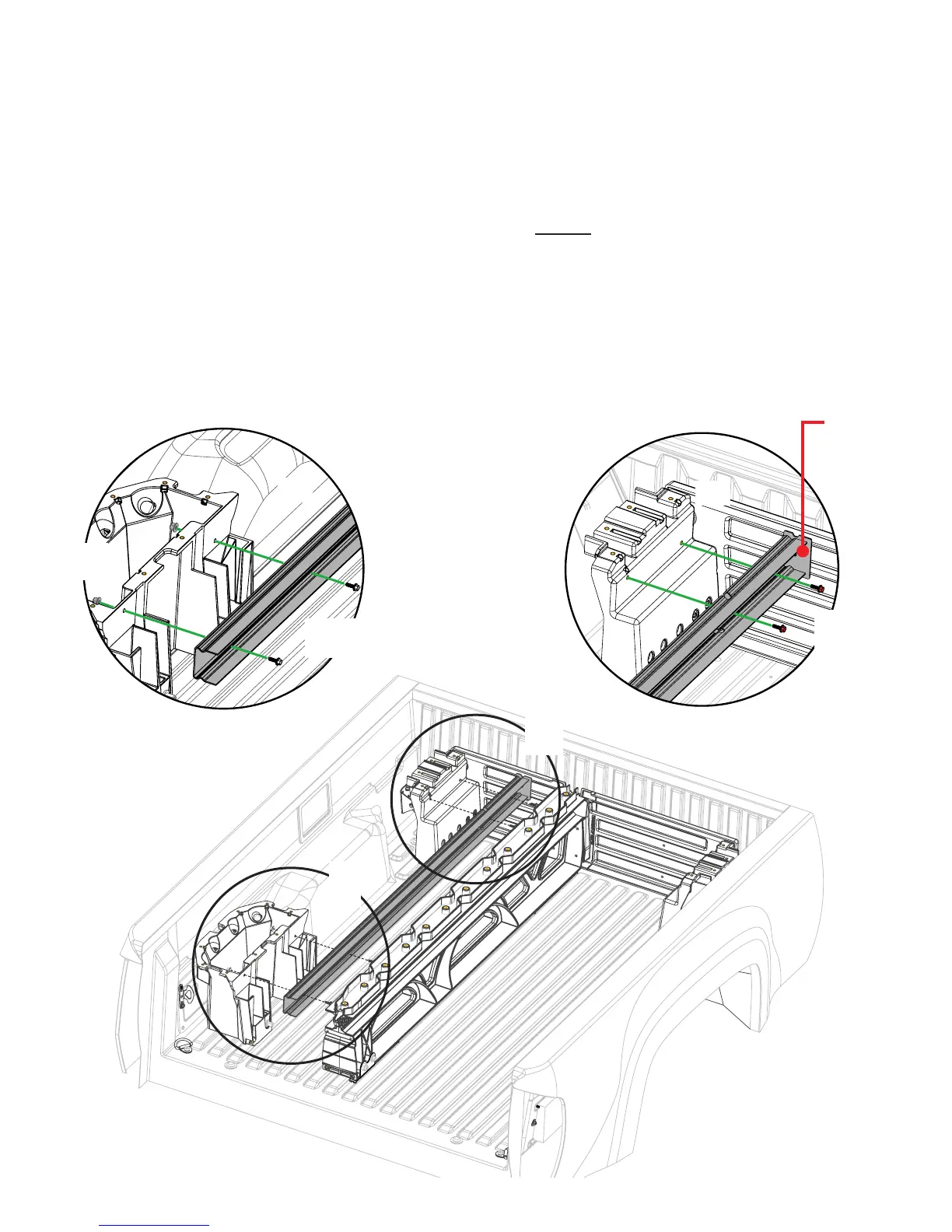

• Loosely place driver side ammo can at tailgate corner of bed.
• Place driver side C-channel on ledge of stud and ammo can with end plate cabside.
• DETAIL A: Insert two bolts through C-channel into ammo can and loosely fasten with nut; BAG S2, BAG N1.
• DETAIL B: Tightly attach C-channel to stud; BAG S1.
• Repeat passenger side.
DETAIL A DETAIL B
CCHANNEL
END PLATE
KEEP LOOSE TIGHTEN
A
B
S2
S1
N1
➡
CAB
➡
CAB
➡
CAB
