S1
➡
CAB
MG3 & MG4 | V1 | Page 10

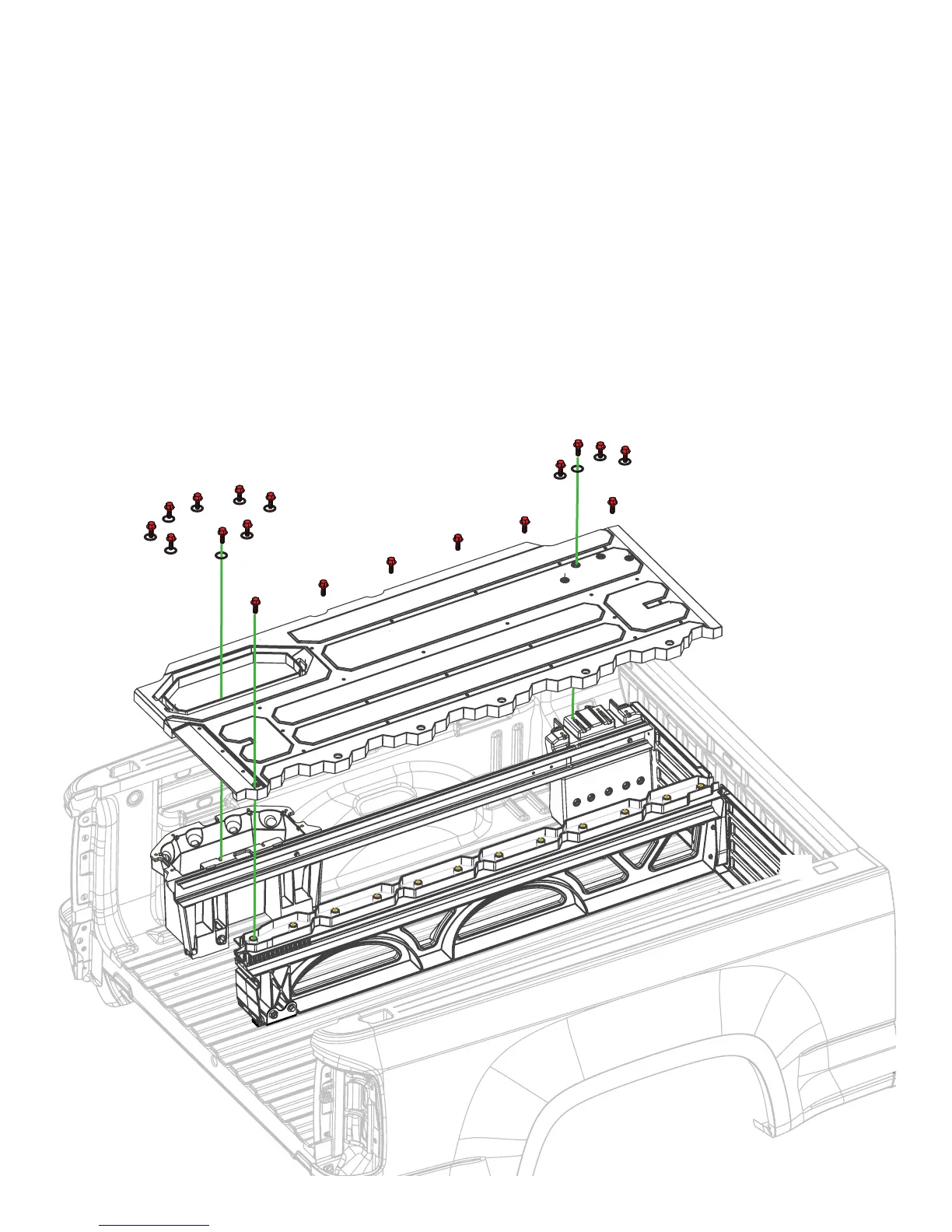

INSTALL: DECK HALVES
• Loosely place driver side deck panel on driver side stud, center vert and ammo can.
• Shift ammo can forward, rearward, L-R, as necessary to align with fully seated deck panel.
• Loosely assemble:
• Five (5'2" bed) or six (6'4" bed) bolts through deck panel into center vert; BAG S1.
• Four bolts with O-rings through deck panel into stud; BAG S1, BAG O-RINGS.
• Eight bolts with O-rings through deck panel into ammo can; BAG S1, BAG O-RINGS.
• Tighten all S1 bolts.
• Securely tighten driver side C-Channel/ammo can nut and bolt.
• Repeat passenger side (make sure you don't forget to securely tighten passenger side C-Channel/ammo can
nut and bolt).
