MG3 & MG4 | V1 | Page 6
HELPFUL TIP: This step seems like a waste of time,
but Dr. DECKED says it's important...don't skip out.
ASSEMBLY: ALIGN & TIGHTEN STUDS (YUP)
NOTE: This step ensures the studs are properly located before tightening bolts. It's important.

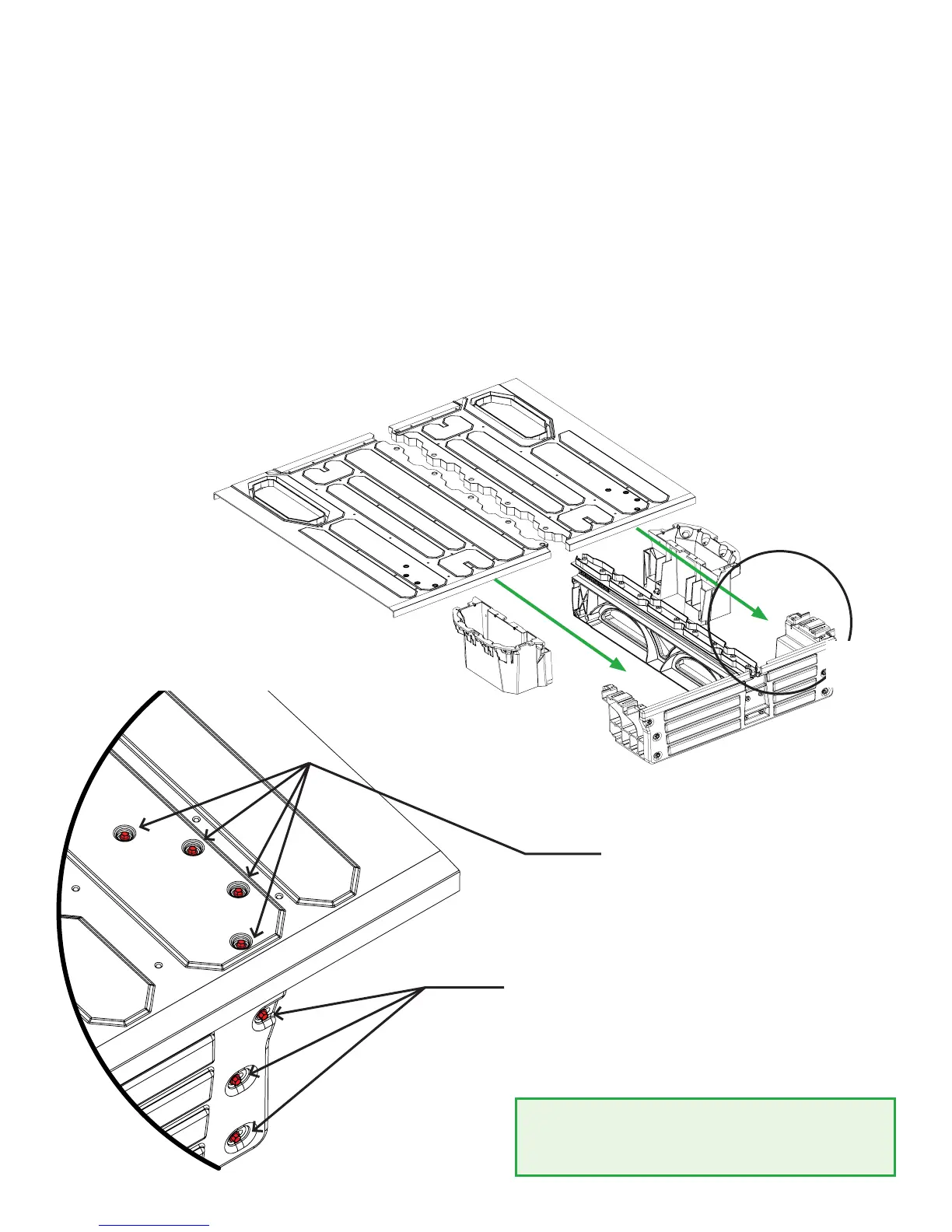

• Place ammo cans to support tailgate end of deck panels.
• Lift deck panels on center vert + stud + cabside vert assembly.
• Slide studs around L-R until deck panels are seated.
• DETAIL A: Loosely secure four bolts to hold decks onto studs; BAG S1.
• Now you can securely tighten the bolts that hold the studs to the cabside vert.
• Unbolt deck from studs, remove deck panels, save bolts, remove ammo cans and set aside for later assembly.
DETAIL A
S1
A
YOU WILL REMOVE AND SAVE THESE BOLTS
AFTER TIGHTENING CABSIDE VERT + SHIM
BOLTS
TIGHTEN AND SECURE
