Dectron DS Series User Manual

September 2020 5 Dectron DS Series – Outdoor OMM
Basic Information
Dehumidifier View and Options – SLX Cab

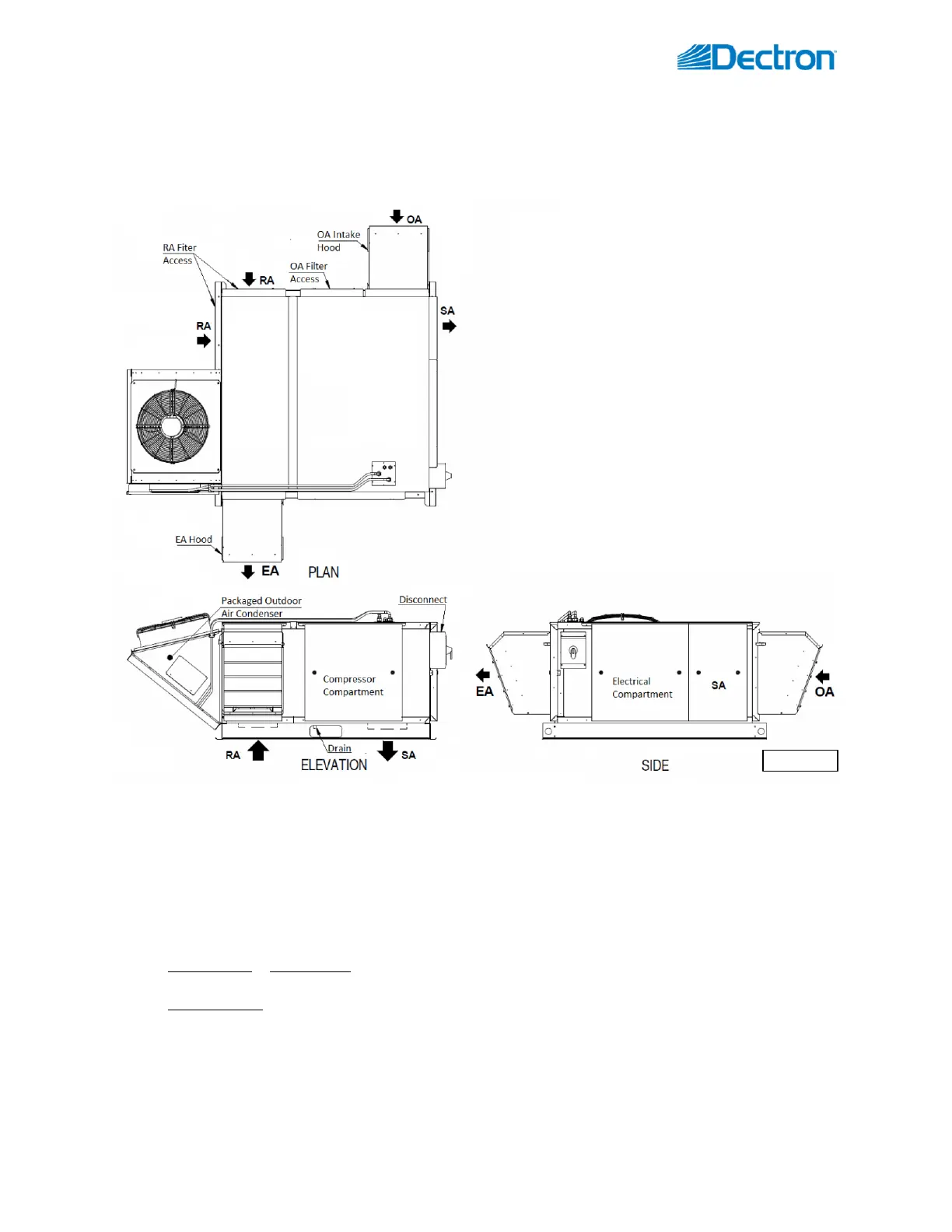

Standard DS020 – DS035 outdoor packaged dehumidifier’s general views and options* are shown on Pic.C.1.
* All available options (tonnage, ductwork connections, other options) are shown. Refer to the submittal and
other relevant documentation for your equipment options, dimensions etc.
** The pool water heating option relies on compressor-created excess heat and is used as an additional
heating source. It does not eliminate the need for a main pool water heater.
*** For specific details on space heating (hot water, gas, electric) option, refer to the submittal and other
documentation:
• Electric heater or hot water coil, depending on (capacity, model, size, etc., can be installed externally (fitted in the
supply air ductwork) or internally. Refer to your dehumidifier’s submittal documentation
• Gas-fired heater can be installed externally (within supply ductwork). Alternatively, the dehumidifier could be provided
with Outdoor Gas Heater package (dehumidifier with package is shown on Pic. C.2 below):
**** Built-in (packaged) Outdoor Condenser is standard option, however dehumidifier could be provided with
remote AC option as well (remotely installed Outdoor Condenser or Fluid Cooler).
Options:
• Outdoor, single-compressor dehumidifiers
4 to 7 tons’ capacity *.
• Return Air (RA) ductwork connection
options – bottom, left, horizontal.
• Supply Air (SA) ductwork connection
options – bottom, horizontal*.
• Outdoor Air (OA) intake - horizontal*.
• Optional Exhaust Air (EA) – horizontal*.
• Optional Pool Water Heating **.
• Optional Space Heating - hot water coil,
electric or gas heater ***.
• Packaged Air Conditioning (AC) option –
built-in Outdoor Air-Cooled Condenser
(OACC).****
Pic. C.1

Dectron DS Series Specifications

General

Type	Refrigerant Dehumidifier
Airflow	Varies by model
Capacity	Varies by model
Power Supply	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	5°C to 35°C
