LIMITED 1 YEAR WARRANTY
DEDENBEAR Products, Inc. warrants to the consumer that all DEDENBEAR Products purchased from an Authorized DEDENBEAR Reseller
will be free from defects in material and workmanship for a period of twelve (12) months from date of the original purchase. Products that fail
within this 12 month warranty period will be repaired or replaced at DEDENBEAR’s option, when determined by DEDENBEAR that the product
failed due to defects in material or workmanship. This warranty is limited to the repair or replacement of parts in the DEDENBEAR Product and
the necessary labor done by DEDENBEAR to effect the repair or replacement of the DEDENBEAR product. In no event shall DEDENBEAR’s
cost to repairor replace a DEDENBEAR under this warranty exceed the original purchase price of the DEDENBEAR Product. Nor shall
DEDENBEAR Products, Inc. be responsible for special, incidental or consequential damages or costs incurred due to the failure of a
DEDENBEAR Product. This warranty applies only to the original purchaser of the DEDENBEAR Product and is non-transferable. This warranty
also applies only to DEDENBEAR Products purchased from an Authorized DEDENBEAR Reseller. All implied warranties shall be limited in
duration to the said 12 month warranty period. Breaking the instrument seal, improper use or installation, accident, water damage, abuse,
unauthorized repairs or alterations voids this warranty. DEDENBEAR disclaims any liability for consequential damages due to the breach
of any written or implied warranty on all products manufactured by DEDENBEAR Products, Inc.
THUNDER
TRIG
SKIP
GND
+12V
TBRK
L L
Wire the Remote Display unit as shown. Use at least 18 gauge wire connecting the black wire to a solid chassis
ground and the red to +12 volts. Use a 5 amp fuse in the red wire to protect the Remote Display from damage.
Connect the display to your
THUNDER
using the transmitting cable included with the display unit. Slip the connec-
tors into the jacks and turn the lock ring clockwise to lock in place.
The display unit needs no set up, just power both units up and the Remote Display will show whatever is dialed in
to “YOUR E.T.” setting of the
THUND ER
. When you make a change to “YOUR E.T.” setting in the
THUN DER
and
the box returns to the run mode, the Remote Display will change accordingly.

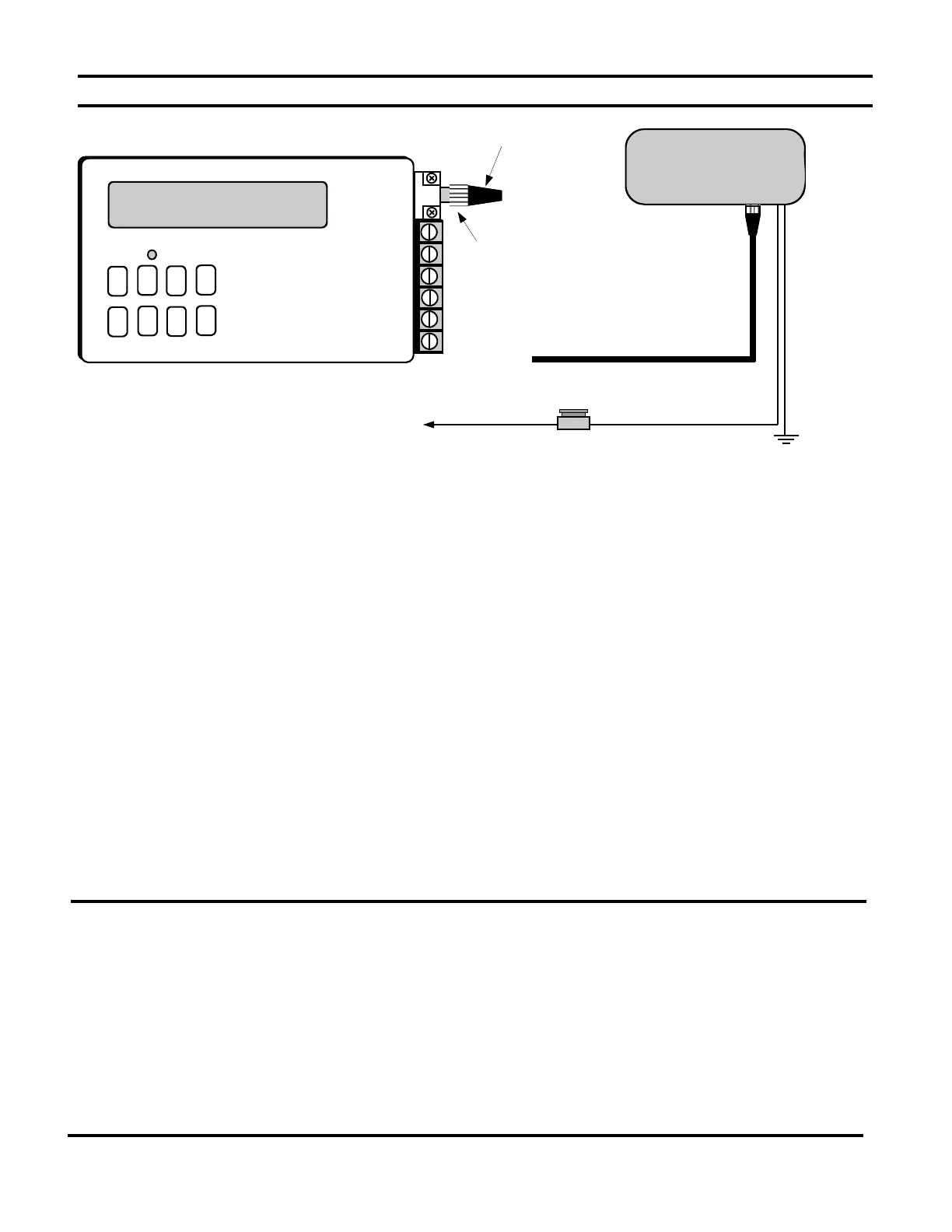

WIRING FOR REMOTE DISPLAY
LOCK RING
10.87
RED
BLACK
TRANSMITTING CABLE
CONNECTOR
FUSE 5 AMP
+ 12 or 16 Volts
© 2016 Dedenbear Products, Inc.
2650-1314-00 Rev. A 8/24/16
FOR SERVICE SEND TO:
DEDENBEAR PRODUCTS, INC 413 W. Elm St. Sycamore, IL 60178 USA (866) 248-6357
Email: service@autometer.com
