Dedicated Micros ©2006
36
Eco
Appendix D –Unit Serial and Network
Cables
10.0002

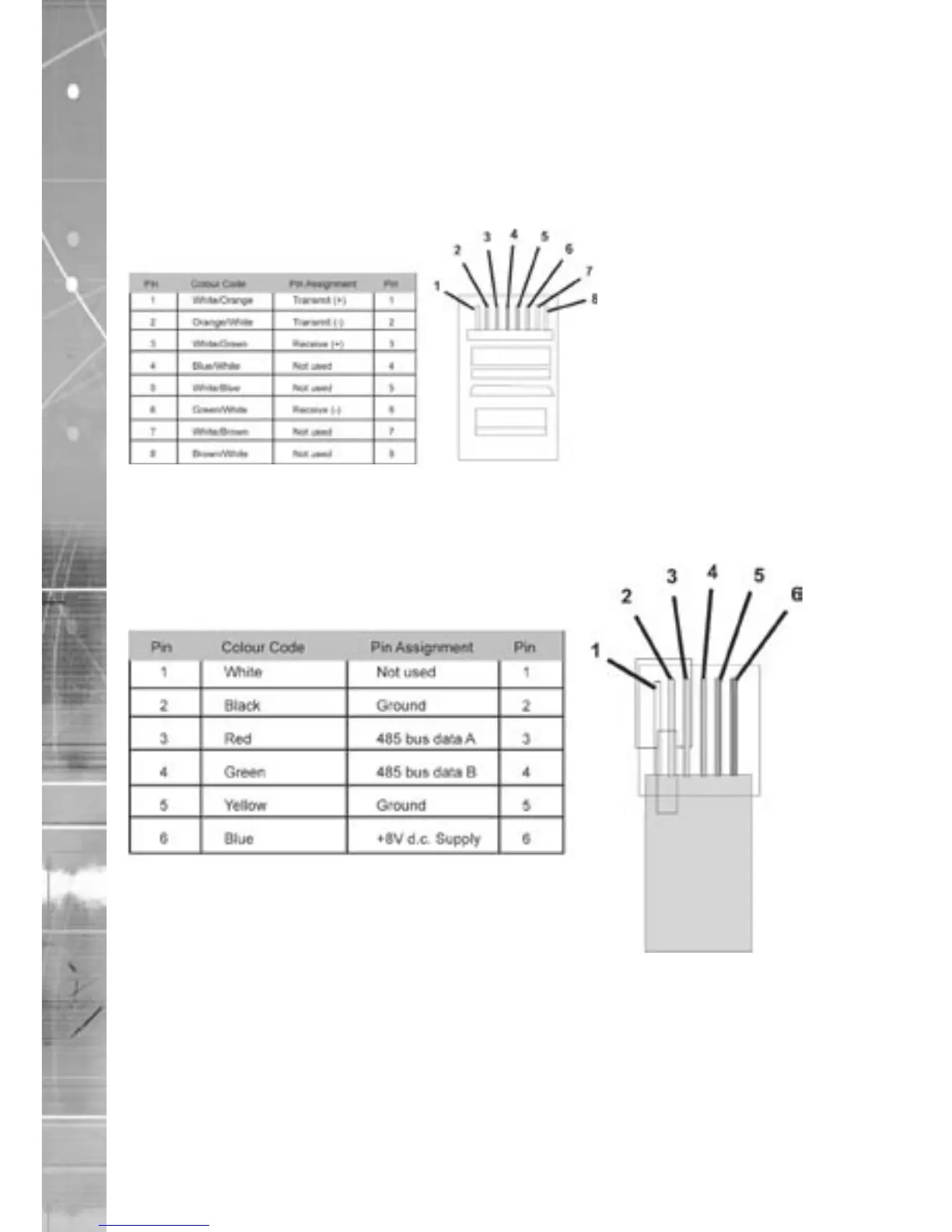

Straight-through Network Cable
A straight through network cable connects hosts to network devices; PC to switch, unit to Switch.
10.0003
DM 485 Bus Cable (supplied)
The DM 485 Bus cable is supplied for connectivity to peripheral DM devices such as Alarm Modules
and Relay Modules.
10.0004
