DeDietrich AMC 15 User Manual

Room-sealed model (C
13(X)
, C
33(X)
, C
63(X)
, C
93(X)
)
L
Total length of the flue gas outlet and air supply duct
Connecting the flue gas outlet
Connecting the air supply
With a room-sealed version, both the flue gas outlet and the air supply
openings are connected (concentrically). Refer to the table to determine
the maximum pipe length of the flue gas outlet pipes in the room-sealed
version.
Tab.18 Maximum chimney length (L)
Diameter 60/100 mm
80/125 mm
(1)
AMC 15
20 m 20 m
(1)
AMC 25
13 m 20 m
(1)
AMC 25/28 MI
11 m 20 m
(1)
AMC 35
9 m 20 m
(1)
(1) Retaining the maximum length, it is possible to use an extra 5 x 90º or 10 x
45º elbows.
Connection in different pressure areas (C
53(X)
)
L
Total length of the flue gas outlet and air supply duct
Connecting the flue gas outlet
Connecting the air supply
Important
An 80/80 mm flue gas adapter (accessory) must be fitted for this
connection.
A combustion air supply and flue gas outlet are possible in different
pressure areas and semi-CLV systems, The maximum permitted height
difference between the combustion air supply and the flue gas outlet is 36
m.
Important
Contact us for more information on usage in coastal areas.
Tab.19 Maximum chimney length (L)
Diameter 60 mm 70 mm 80 mm
90 mm
(1)
AMC 15
19 m 40 m 40 m
(1)
40 m
(1)
AMC 25
12 m 25 m 40 m
(1)
40 m
(1)
AMC 25/28 MI
10 m 22 m 40 m 40 m
(1)
AMC 35 7 m 14 m 37 m 40 m
(1) Retaining the maximum length, it is possible to use an extra 5 x 90º or 10 x
45º elbows.

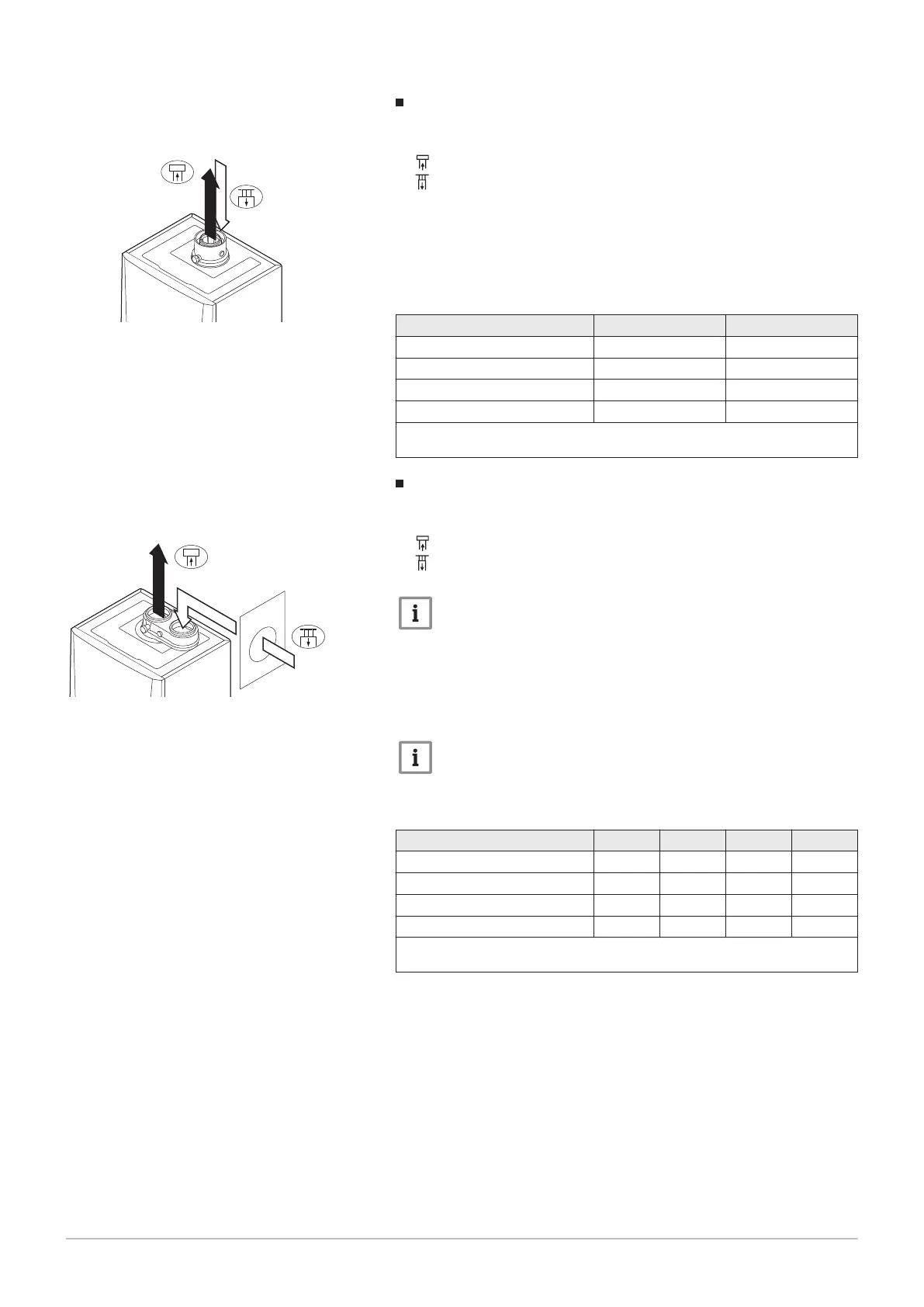

Fig.28 Room-sealed version
AD-0001357-01
L =
Fig.29 Different pressure zones
AD-0001212-01
L = +
6 Installation
34 AMC 7686707 - v.01 - 06092018
