Connecting the W Studio Micro to Your TV
For optimal performance, place or mount your W Studio Micro sound
bar in one of these locations:
• Directly under your TV, in front of the TV’s base
• On the wall directly above or below your wall-mounted TV
Wall Mounting
The W Studio Micro sound bar has two built-in keyhole slots so you
can wall-mount it beneath your wall-mounted television.
Note: Please make sure to use wall anchors that are of suitable
load-bearing capacity.
Connecting Your W Studio Micro to Your TV
1. Carefully unbox the W Studio Micro sound bar and subwoofer.
2. Place the sound bar on a flat surface below your TV. Connect the
power cable to the sound bar. Then connect the power cable to
the power supply. Finally, plug the power supply into a wall socket.
3. You can place the wireless subwoofer anywhere in your room
with access to an AC outlet, even inside an audio cabinet.
Optimal blending is achieved when the subwoofer is placed at the
front of your room, to the left or right of the sound bar.
4. Now, connect the included optical cable from your TV to the back
of the sound bar.
5. Adjust your TV’s audio settings to ensure it sends the audio signal to
external speakers. This usually turns OFF the TV’s internal speakers,
which is mandatory for good audio performance.
6. Power on the sound bar and subwoofer. Enjoy!
Note: More inputs available for your preferred setup.
Connecting the Wireless Subwoofer
The included W Studio Micro subwoofer is engineered for easy
set-up. When it powers up, it will automatically receive its wireless
signal from the sound bar. You can place the wireless subwoofer
anywhere in your room with access to an AC outlet.
To connect the wireless subwoofer to the W Studio Micro system,
simply plug the subwoofer into a nearby AC outlet and switch the
main power switch to ON.
If the wireless subwoofer stops receiving an audio signal, follow these
instructions to re-establish the connection:
1. Turn the subwoofer’s main power switch to OFF and wait
15 seconds.
2. Press the SYNC button on the back of the
W Studio Micro sound bar for three seconds.
Note: Pairing must happen within 30 seconds of pushing the SYNC
button. If nothing is paired during this time, the process will time out
via a failed tone.
3. Turn the subwoofer’s main power switch back to ON.
4. Note the Power and Status LEDs on the rear panel of the
subwoofer. The Status LED will flash until paired. The Power LED
will turn green upon pairing. Two green LEDs mean the subwoofer
has successfully paired.
5. A successful tone will sound when the subwoofer has
successfully paired.

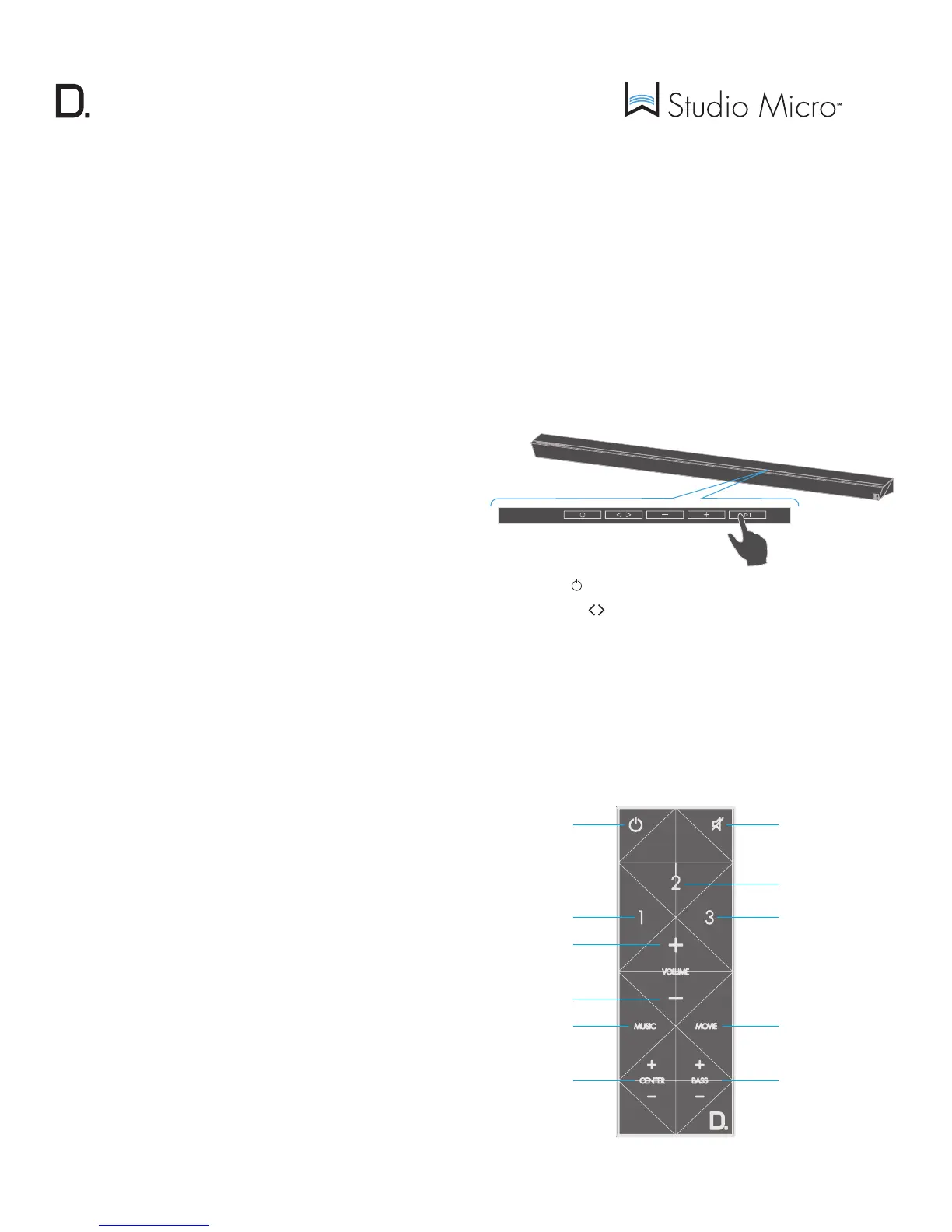

Sound Bar Button Controls
1. Power: Press to turn on/off the sound bar
2. Source (Symbol ): Press to switch between OPT 1, OPT 2 and AUX 3
3. Down Volume: Press – to decrease volume of sound bar
4. Up Volume: Press + to increase volume of sound bar
5. Play/Pause: Press to play / pause when streaming music; press to mute
when using sources 1, 2 or 3 for watching TV / movies
Remote Control Functionality
Power on/off
OPT 1
Volume up
Volume down
Center channel
volume up/down
Optimized
listening mode
for music
OPT 2
Mute
AUX 3
Optimized listening
mode for TV &
movies
Subwoofer volume
up/down
