Page 13

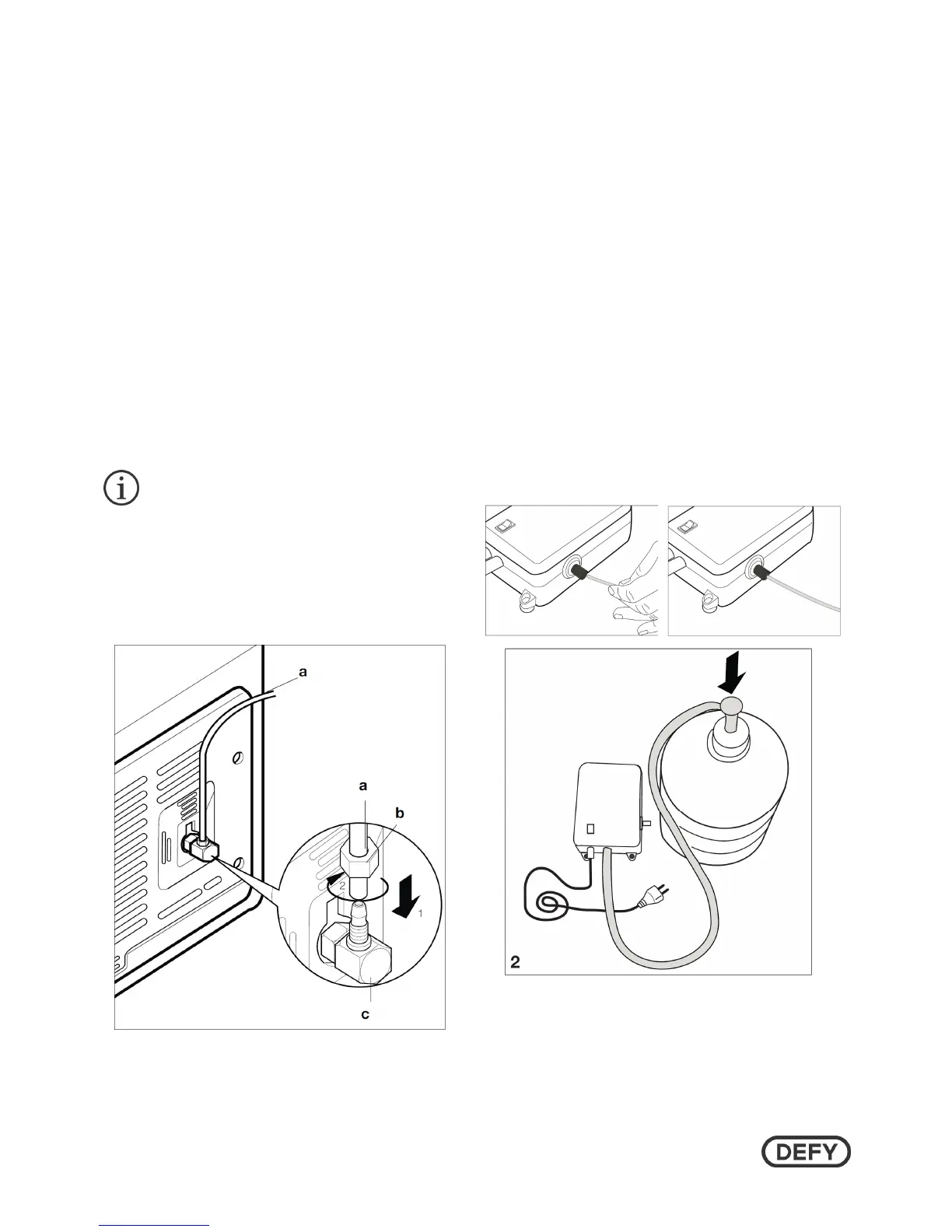

Water connection to the refrigerator
Please follow the instructions carefully.
Connection of the Water Pipe to the
Refrigerator
1. After installing the union onto the water
pipe, fit the water pipe to the refrigerator
inlet valve by pressing downwards firmly.
2. Fit the union as seen in the above figure,
by squeezing it by hand onto the
refrigerator inlet valve.
Parts:
a- Water Pipe,
b- Union,
c- Valve
Note:
You should not need to tighten the union
with a tool to achieve a water tight assembly.
In case of a leak use a correctly sized
spanner to tighten the union.
Connection of Water Hose to a Jug
(in some models)
To connect water to the refrigerator from a
jug, a pump is needed.
Follow the instructions below. Start by
connecting one end of the water pipe from
the outward flow of the pump and the other
end onto the refrigerator inlet valve as
described on the “water connection to the
refrigerator”.
1. Complete the connection by pushing the
pump inlet water pipe into the inlet of the
pump as shown in figure A.
2. Place and fix the pump pipe into the jug
as shown in figure A.
3. After completing the connection, plug in
and run the pump.
To ensure efficient operation of the pump,
wait for 2-3 minutes after starting the pump.
Note:
Please refer to your pump user manual
whilst making the water connection. There is
no need of a water filter when a jug is used.
A pump must be used when using a jug.
Figure A
