Assembly

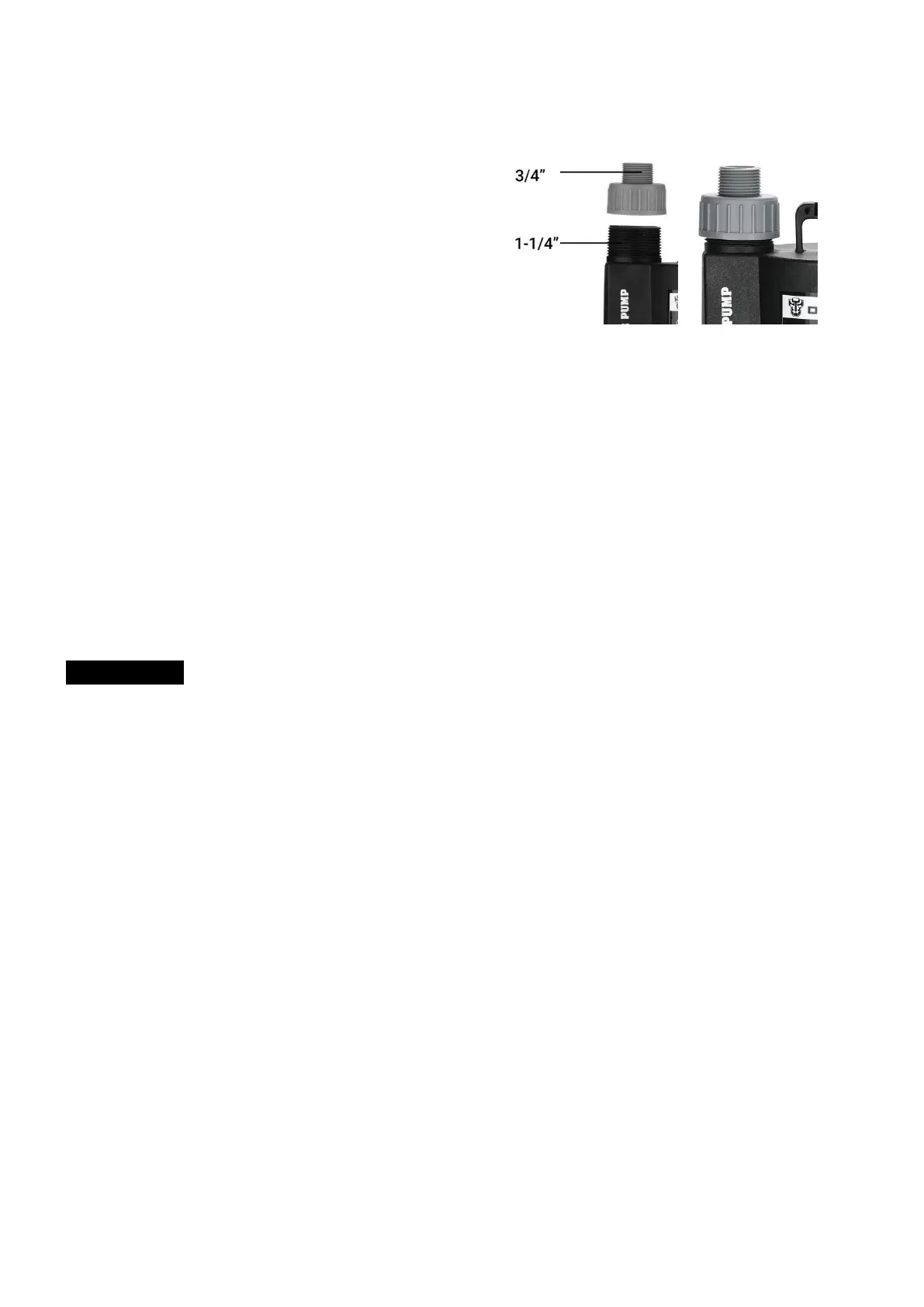

Hose Connection
The output hose fitting and adapter allows
connection of GHT 3/4", NPT 1-1/4" hose
(From Up to Down), depending on your
individual requirement or applications.
Remark: the comming fitting/adapter may
vary according to different countries or
markets. Please refer to the package, sales
details or your dealer.
Installation
1. Install the pump on a hard level surface in the water. If necessary, place bricks
operation blocks under the pump to raise it off the bottom. Do not place the pump
directly in mud, sand or silt or on rocky surfaces as these materials can clog or cause
damage to the pump.
2. Connect a hose to the pump discharge. Use either the supplied garden hose adapter
or other hose fitting (sold separately). Choose the best size hose or pipe for your
application.
NOTE: To keep friction loss as low as possible, do not use a hose that is smaller than
3/4".
Operation
⚠ WARNING: After having read these instructions carefully, you can set your pump to
work, reconsidering the following item:
Check if the pump rests on the ground.
Check if pressure cord has been attached properly.
Check if the voltage/frequency of the receptable corresponds to that of te pump.
Make sure that water and humidity can never come to the mains supply.
Avoid pump running dry.
1. Connect the plug into a 100-120 volt AC grounded outlet. The use of a GFCl is
strongly recommended.
2. After the power is connected, the water pump starts to run. After the power is
disconnected, the water pump stops running.
3. Do not let the pump run dry. The pump depends on water for cooling and lubrication.
Operating the pump without water may cause the motor to overheat or cause damage to
internal parts. It may shorten the life of your pump. Pumping fluids above 95°F (35°C)
also shortens the life of the pump.
