Technical data
Wood: 25mm
Steel: 10mm
Concrete: 13mm
Intended Use
The machine is intended for impact drilling in brick, concrete and stone as well as for drilling in wood, metal and
plastic. Machines with electronic control and right/left rotation are also suitable for screw driving and
thread-cutting.
Operation
Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to
the mains data.
⚠ WARNING: Always pull the power plug before making adjustments to the equipment.

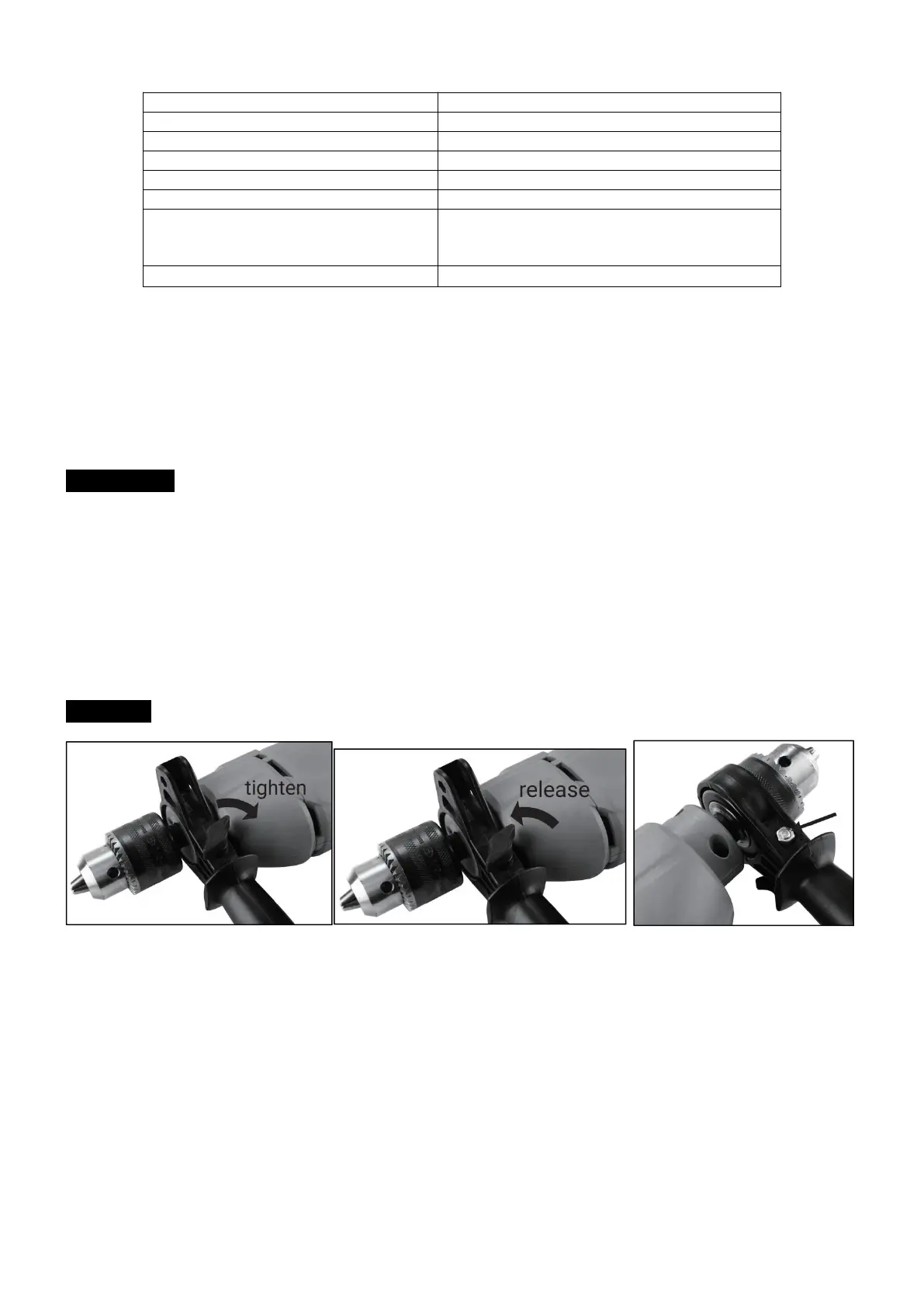

Auxiliary handle
The auxiliary handle (2) enables you to achieve better stability whilst using the hammer drill. Do not use the tool
without the auxiliary handle.
The auxiliary handle (2) is secured to the hammer drill by a clamp. Clockwise the knob (3) to tighten the clamp, and
turn the knob anti-clockwise will release the clamp.
a) The supplied auxiliary handle (2) must first be fitted. To do this, the clamp must be opened by turning the handle
until it is wide enough for the auxiliary handle to be slid over the chuck (1) and on to the hammer drill.
b) After you have positioned the auxiliary handle (2), turn it to the most comfortable working position for you.
c) Now anti-clockwise the knob (3) again until the auxiliary handle is secure.
d) The auxiliary handle (2) is suitable for both left handed and right-handed users.
CAUTION: There is a nut to help fix the auxiliary handle on the chuck, don’t lost it, otherwise the handle cannot
be fixed.
Fitting and adjusting the depth gauge
The depth gauge is held in place by the auxiliary handle (2) by clamping. The clamp can be released and tightened
by turning the knob (3).
a) Release the clamp and fit the depth gauge in the recess (10) provided for it in the auxiliary handle.
b) Set the depth gauge to the same level as the drill bit.
c) Pull the depth gauge back by the required drilling depth.
d) Turn the handle on the auxiliary handle (2) until it is secure.
e) Now drill the hole until the depth gauge touches the workpiece.
Fitting the drill bit
This hammer drill is fitted with a keyless chuck (1).
a) Open the chuck (1). The drill bit opening (1) must be large enough to fit the drill bit into.
b) Select a suitable drill bit. Push the drill bit as far as possible into the chuck opening.
c) Close the chuck (1) with the chuck key (11). Check that the drill bit is secure in the chuck (1).
d) Check at regular intervals that the drill bit or tool is secure (pull the mains plug).
