What to do if the Del Medical Equipment table won't turn on?
First, ensure the switch at the wall power source is turned on and the circuit breaker is also on. Check that the Emergency Stop button is reset to the up position. Also, inspect the line fuses FL1 & FL2, and fuses F2 & F4.
What to do if Del Medical Equipment table won't raise or lower but other functions work?
Check the motor fuse F1. If it keeps blowing, replace the DC motor controller board. Verify the 24V power supply is working correctly; a green LED should be lit when the table is on. If not, check the power supply’s fuse; if it’s OK or keeps blowing, replace the power supply. Also, check the DC motor speed control; a green LED should light up when the up or down pedals are pressed. If it doesn’t, replace the DC motor speed control. If the LED does light up, check and replace the control’s fuse if necessary. If the fuse blows again quickly, check for and remove any mechanical obstructions in the rack lift assembly. If none are found, replace the drive motor.
Why don't any of the table locks work on my Del Medical Equipment?
This could be due to a lack of power to the locks. Check fuse F3 and the function of relay K301. If necessary, replace the relay.
What to do if Del Medical Equipment table raises but doesn't lower?
The issue might be with the collision avoidance switches. Test and adjust these switches. If a switch is faulty, replace it. Also, check the mechanical and electrical operation of the down treadle switch S13 and limit switches S102-A and S102-B, replacing any faulty ones. Check for 24 VDC across terminals A1 and A2 on relay K101 when the down pedal is pressed. If 24 VDC is present, replace the relay; if not, replace the power supply.
What to do if Del Medical Equipment table lowers but doesn't raise?
The problem may be a faulty treadle up switch or up limit switch. Check the mechanical and electrical operation of the down treadle switch S12 and limit switches S101-A and S101-B, replacing any faulty ones. Check for 24 VDC across terminals A1 and A2 on relay K102 when the up pedal is pressed. If 24 VDC is present, replace the relay; if not, replace the power supply.
What to do if one lock pedal works, but the other doesn't on my Del Medical Equipment?
The lock treadle switch may be faulty. Check the mechanical and electrical operation of lock treadle switches S11 & S12. If a switch is faulty, replace it.
Describes the manual's focus on safety and the importance of adhering to guidelines.
Outlines the manufacturer's responsibilities and limitations regarding equipment use and potential hazards.
Explains the meaning of various symbols used on equipment labels and in documentation.
Details the conventions used for warning and caution statements within the manual.
Provides specific warnings and precautions for operating the EV-650 Elevating Table.
Explains the function and proper use of the emergency stop button for technicians.
Introduces the purpose, scope, and content of the EV-650 Installation, Operation & Service Manual.

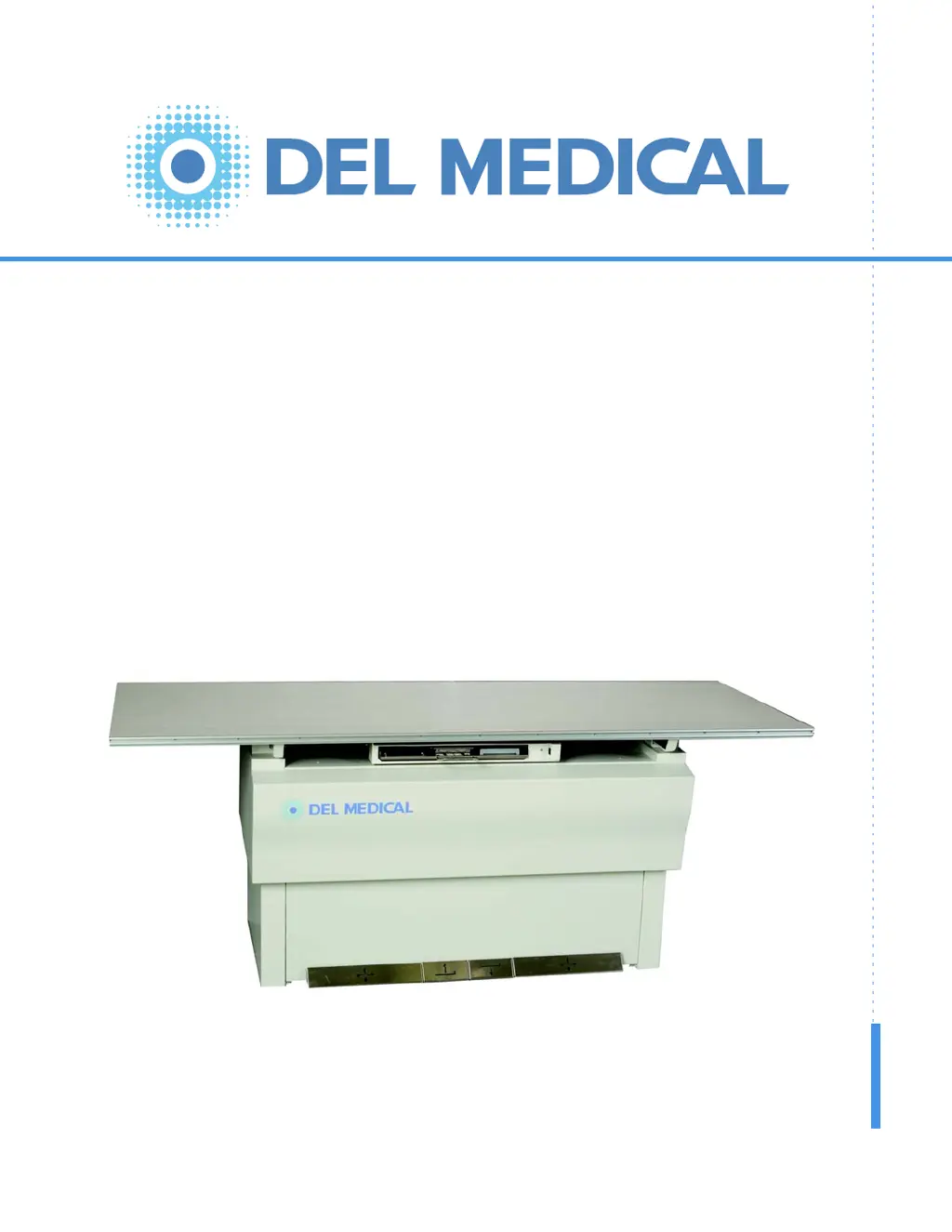

Provides a general description of the EV-650 elevating radiographic table.
Details the physical measurements and key dimensions of the EV-650 table.
Specifies the minimum clearance needed around the table for safe installation and operation.
Lists the electrical, mechanical, and environmental specifications for the EV-650 table.
Defines the abbreviations and acronyms used throughout the manual.
Lists available optional accessories that can be added to the EV-650 table.
Provides step-by-step instructions for the installation of the EV-650 elevating table.
Details critical safety measures to be followed during table operation.
Lists operational parameters and compatibility information for the table.
Describes the function and operation of the table's various controls.
Explains the steps required to remove the cassette tray from the bucky.
Details the operation and function of the emergency stop button for technicians.
Provides a schedule for routine periodic maintenance tasks.
Instructions for cleaning the exterior surfaces of the table and base.
Procedure for lubricating the lift racks to ensure smooth operation.
Guide for checking and adjusting the tension of the drive chain.
Introduces the maintenance and adjustment procedures covered in this chapter.
Step-by-step guide for removing the front panels of the table.
Procedure for locating and replacing fuses F2, F3, and F4.
Procedure for locating and replacing fuses F1, FL1, and FL2.
Procedure for replacing the fuse on the 24V power supply board.
Procedure for replacing the fuse for the DC motor speed control.
Instructions on how to manually raise or lower the tabletop.
Procedure to change the table's input voltage from 120V to 240V.
Procedure to change the table's input voltage from 240V to 120V.
Adjusting the table's mid-point elevation restart mode between manual and automatic.
Procedure for adjusting the height at which the table stops at its mid-point.
Testing and adjusting the collision avoidance switches for proper function.
Introduces the chapter on replacing major assemblies and components.
Steps to remove front panels for accessing internal components.
Procedure for replacing the main chassis assembly.
Procedure for replacing the foot treadle assembly.
Procedure for replacing the K301 relay.
Procedure for replacing the drive motor assembly.
Procedure for replacing the 24V power supply board.
Procedure for replacing the motor controller board.
Procedure for replacing the DC motor speed control unit.
Procedure for replacing the DC motor speed control relay K103.
Procedure for replacing the emergency stop switch.
Procedure for replacing a treadle switch.
Procedure for replacing the left and right table locks.
Procedure for replacing the height limit switches.
Procedure for replacing the bucky lock mechanism.
Procedure for replacing the collision avoidance switches.
Procedure for replacing relays K101 and K102.
Procedure for replacing the in-out table lock mechanisms.
Introduces the troubleshooting chapter and its structure.
Provides an index and charts to help diagnose and solve table malfunctions.
Guidance on using electrical schematics for troubleshooting.
Details connector pinouts on the main chassis for electrical diagnostics.
Presents the electrical schematics for the EV-650 elevating table.
Information and contact details for ordering replacement parts and accessories.
Guidance on how to interpret and use the illustrated parts list.
A list of frequently ordered parts for the EV-650 table.
Detailed parts breakdown and illustration for the overall table assembly.
Detailed parts breakdown and illustration for the inner frame assembly.
Detailed parts breakdown and illustration for the drive frame assembly.
Detailed parts breakdown and illustration for the drive shaft assembly.
Detailed parts breakdown and illustration for the lower frame assembly.
Detailed parts breakdown and illustration for the upper frame assembly.
Detailed parts breakdown for the SID/Limit switch cam plate assembly.
Detailed parts breakdown and illustration for the treadle channel assembly.
Detailed parts breakdown and illustration for the main chassis assembly.
Detailed parts breakdown and illustration for the upper shroud assembly.
Detailed parts breakdown and illustration for the bucky carriage assembly.
Detailed parts breakdown for the right-hand support bracket assembly.
Detailed parts breakdown for the left-hand support bracket assembly.
Detailed parts breakdown and illustration for the transverse lock assembly.
Detailed parts breakdown for the collision avoidance assemblies.
Detailed parts breakdown and illustration for the SID/Limit switch assembly.
Detailed parts breakdown and illustration for the cable chain assembly.
Detailed parts breakdown and illustration for the bucky cover/harness assembly.
Lists available options and accessories for the elevating table.
General| Brand | Del Medical |
|---|---|
| Model | EV-650 |
| Category | Medical Equipment |
| Language | English |
