Del ozone Eclipse-1 - Section 1: General Information; 1 A Description; 1 B Specifications; 1 C Warranty Summary

1B Specications
Ozone Output:
Ozoneoutput(+10%): Eclipse-1 (EC-1) .......0.25 g/hr
Eclipse-2 (EC-2) ........0.5 g/hr
Eclipse-4 (EC-4) ........1.0 g/hr
Flowrate: 15scfh
Power Requirements:
Domestic:
EC-1 . . . . 120V, 60 Hz, 1Ø, 0.06 Amp
. . . . . . . . 240V, 60 Hz, 1Ø, 0.03 Amp
EC-2 . . . . 120V, 60 Hz, 1Ø, 0.12 Amp
. . . . . . . . 240V, 60 Hz, 1Ø, 0.06 Amp
EC-4 . . . . 120V, 60 Hz, 1Ø, 0.24 Amp
. . . . . . . . 240V, 60 Hz, 1Ø, 0.12 Amp
International:
EC-1 . . . . 240V, 50 Hz, 1Ø, 0.03 Amp
EC-2 . . . . 240V, 50 Hz, 1Ø, 0.06 Amp
EC-4 . . . . 240V, 50 Hz, 1Ø, 0.12 Amp
Shipping Weight:
EC-1: Approx. 3.5 pounds / 1.6 kg
EC-2: Approx. 5.5 pounds / 2.5 kg
EC-4: Approx. 10.5 pounds / 4.8 kg
Location Requirements:
Mounting:Wall mount in a clean, protected area.
AmbientTemp:30°F - 120°F (0°C - 50°C)
1
SECTION 1 General Information
1A Description
The DELZONE
®
Eclipse Corona Discharge (CD) series ozone
generators described in this manual are designed to provide
thebenetsofozonatedwaterinanenvironmentallysafeand
effective manner. The high quality, specially engineered compo-
nentsensureefcientozoneoutputandreliableperformance.
As a result of proper use of the DELZONE
®
Eclipse CD ozone gen-
erators, unpleasant effects of traditional chemical use are virtu-
ally eliminated. The DELZONE
®
Eclipse CD ozone generators are
safe and harmless to your equipment when installed properly.
SECTION 2 Installation
2A Location
The DELZONE
®
Eclipse units are designed for wall mount-
ing. See Figure 1. Mount generator in a clean, protected
area, either indoors or outdoors (Preferably out of direct
Sunlight). Locate generator out of reach of sprinklers or
drainage spouts. Allow sufficient access for maintenance
and all tubing and electrical wires. Ozone generator should
be installed at least (not less than) one foot above the maxi-
mum water level. Note: Injector manifold needs to be installed
after all other equipment or possible failure may occur.
2B Wall Mounting
1. Refer to Figure 1 to mark the locations for the four mount-
ing screws.
2. Install screws (or other hardware appropriate for mounting
surface) through the four mounting holes built in to the top
and bottom end caps on the Eclipse.
2C Electrical
2C-1. Main Power: Connect the DELZONE
®
Eclipse to the pool
timing clock so that the DELZONE
®
Eclipse operates simultane-
ously with the pool pump. The circuit must be protected by a
ground-fault circuit interrupter (GFCI) installed in accordance
to electrical code. Refer to the IMPORTANT SAFETY INSTRUC-
TIONS at the beginning of this manual for important wiring
information.
NOTE: The standard DELZONE
®
 Eclipse is equipped with
apowercord that terminates witha NEMA plug.Forunits
equippedwithaconduittting,connecttheBlackwiretoLine,
theWhitewiretoNeutral,andtheGreenwiretoGround.
2C-2. Grounding Lug: Using a 6-14AWG conductor, connect
the Grounding lug on the right side of the DELZONE
®
Eclipse
to an appropriate earth contact.

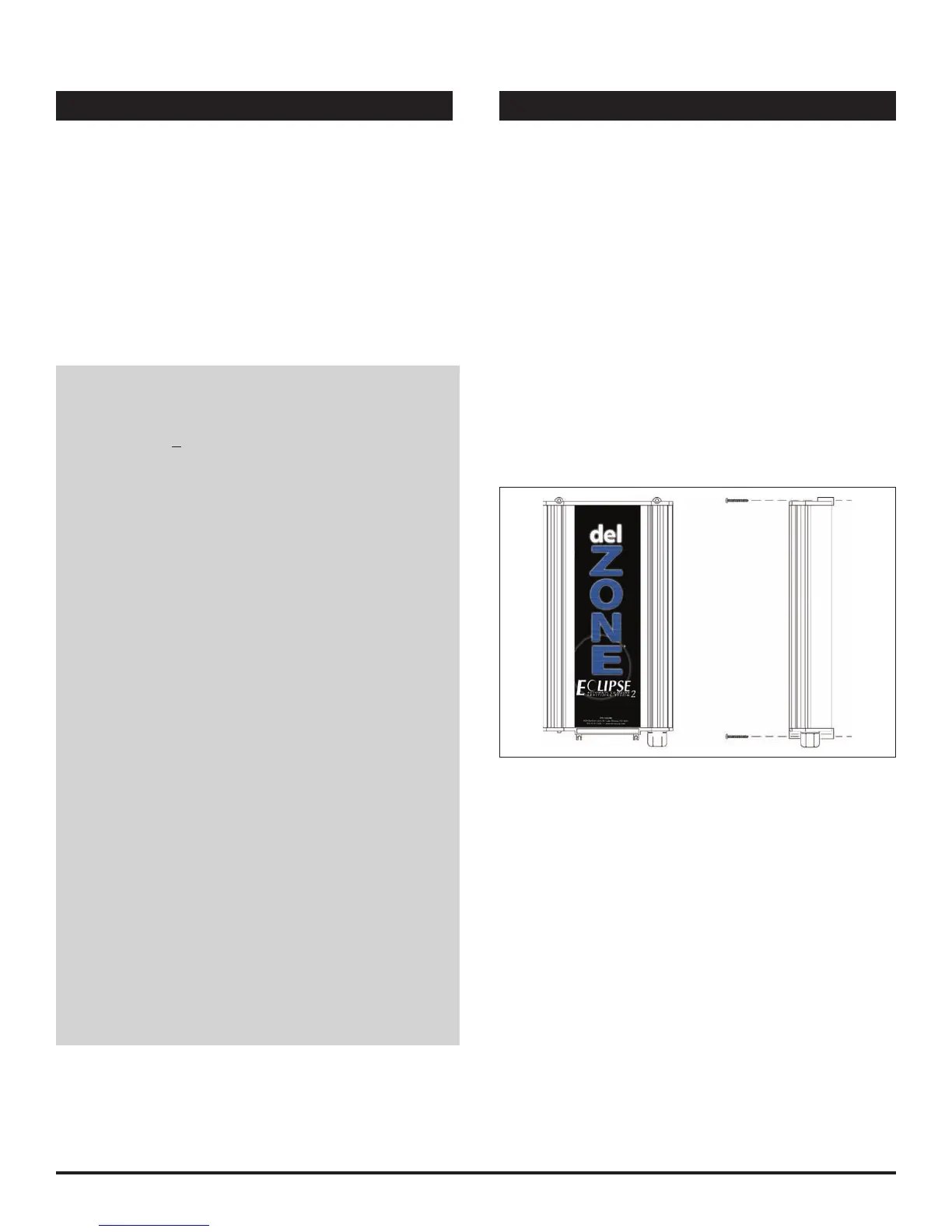

Figure 1 Wall Mount
DELZONE
®
Eclipse 1, 2, & 4 Corona Discharge Ozone Generators
1C Warranty Summary
Limited Warranty:
1 year warranty on entire generator. See Warranty section (page
5) for limitations and details on obtaining warranty service.
