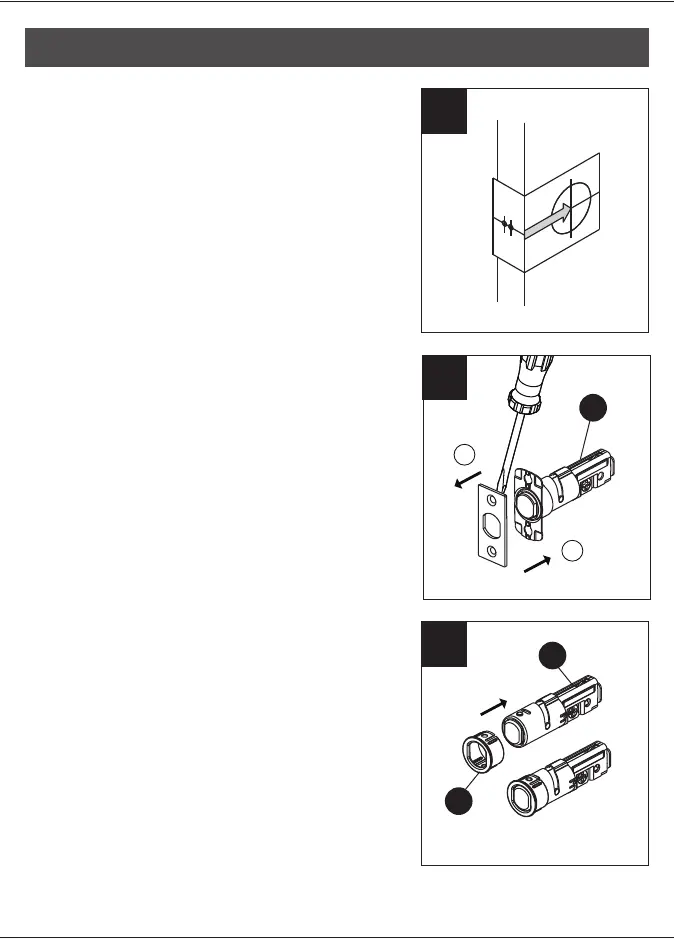

1. Backset Determination
Backset is a distance from door edge to
centre of hole on door face.
Adjustable latch fits both backset of
2 3/8" (60 mm) and 2 3/4" (70 mm).
2. Change Latch Face
Determine which latch mounting method will
be used and make necessary adjustments.
No adjustment required for square latch
face plate.
a. Use a flat screwdriver to separate the
face plate.
b. Snap selected latch face plate onto back
plate.
Drive-in Latch
Drive-in Installation
Remove original latch faceplate.
Align the (I) as illustrated and
snap into the latch case.
drive-in sleeve
a
b
D
D
I
ASSEMBLY INSTRUCTIONS
