Delem
V0802, 4.14

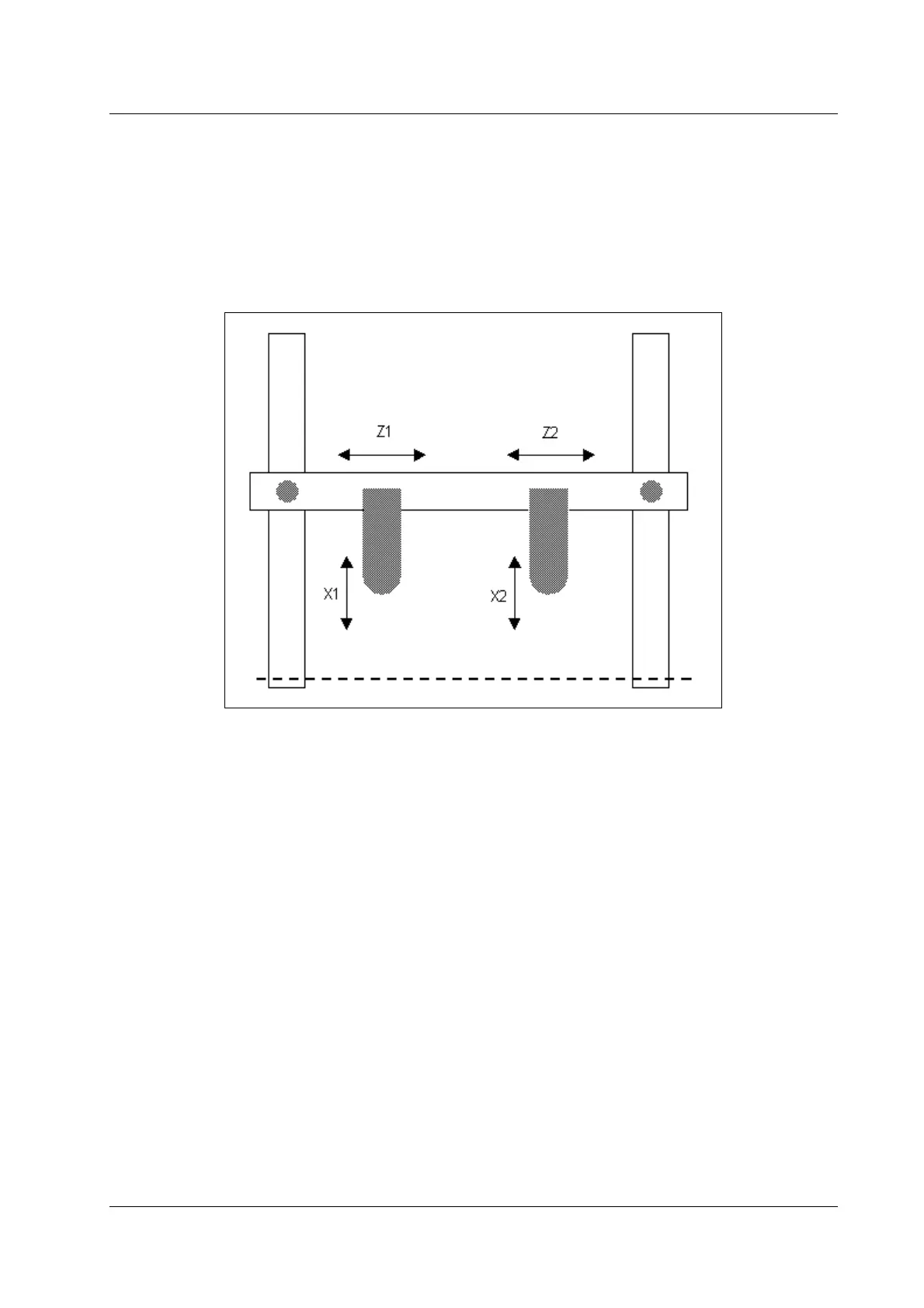

Crossbeam
With this construction both gauges are mounted on one beam. Different positions for X1 and X2
are achieved by turning the beam. The parameter ‘backgauge type’ should be programmed to 1.
In case of a crossbeam construction, the four distances A, B, C and D should be programmed to
describe the dimensions of the gauge construction. These dimensions will be used in the
calculation of gauge positions.
Figure 4.5.c
