Delem
V1101, 9.2
9.2 Digital part support
9.2.1 Installation
Install the following equipment for the part support function:
• DM01 module
• drive system (motor drive and motor or a hydraulic system)
• the part support arm
• a potentiometer for a position feedback signal.
DM01
Part Su
ort
An.
out
+/-10V
Potentiometer si
nal
Drive s
stem
An. in

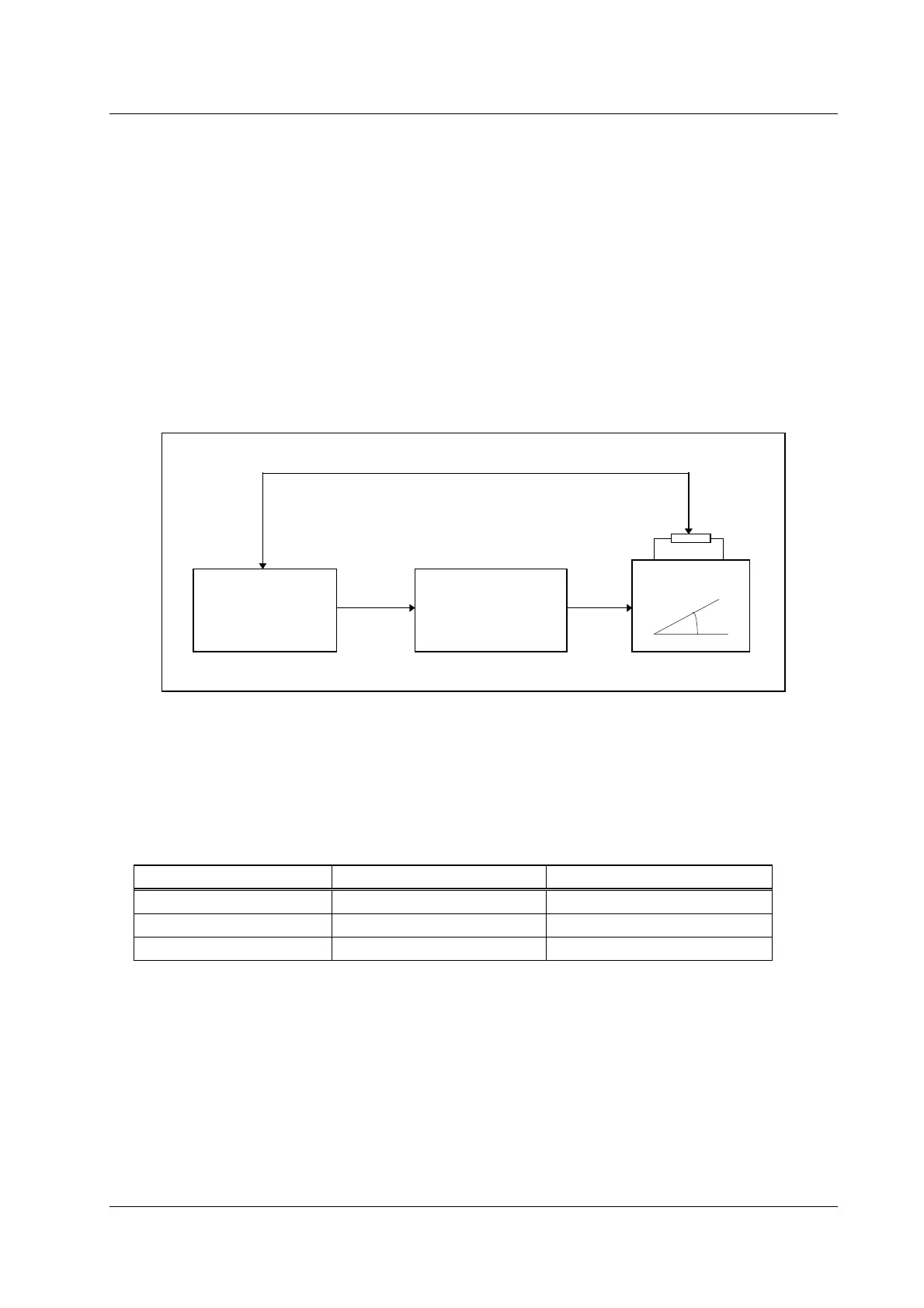

Figure 9.2.a
See drawing number 9024-112 for proper connection of a DM01 module.
In the following table, the definitions for control signal and part support movement are
explained.
Control signal DM01 voltage potentiometer movement part support
> 0 bigger up
0 equal none
< 0 smaller down
In order to achieve acceptable results with a part support system, the system should meet several
requirements.
