Delem
V1101, 9.3

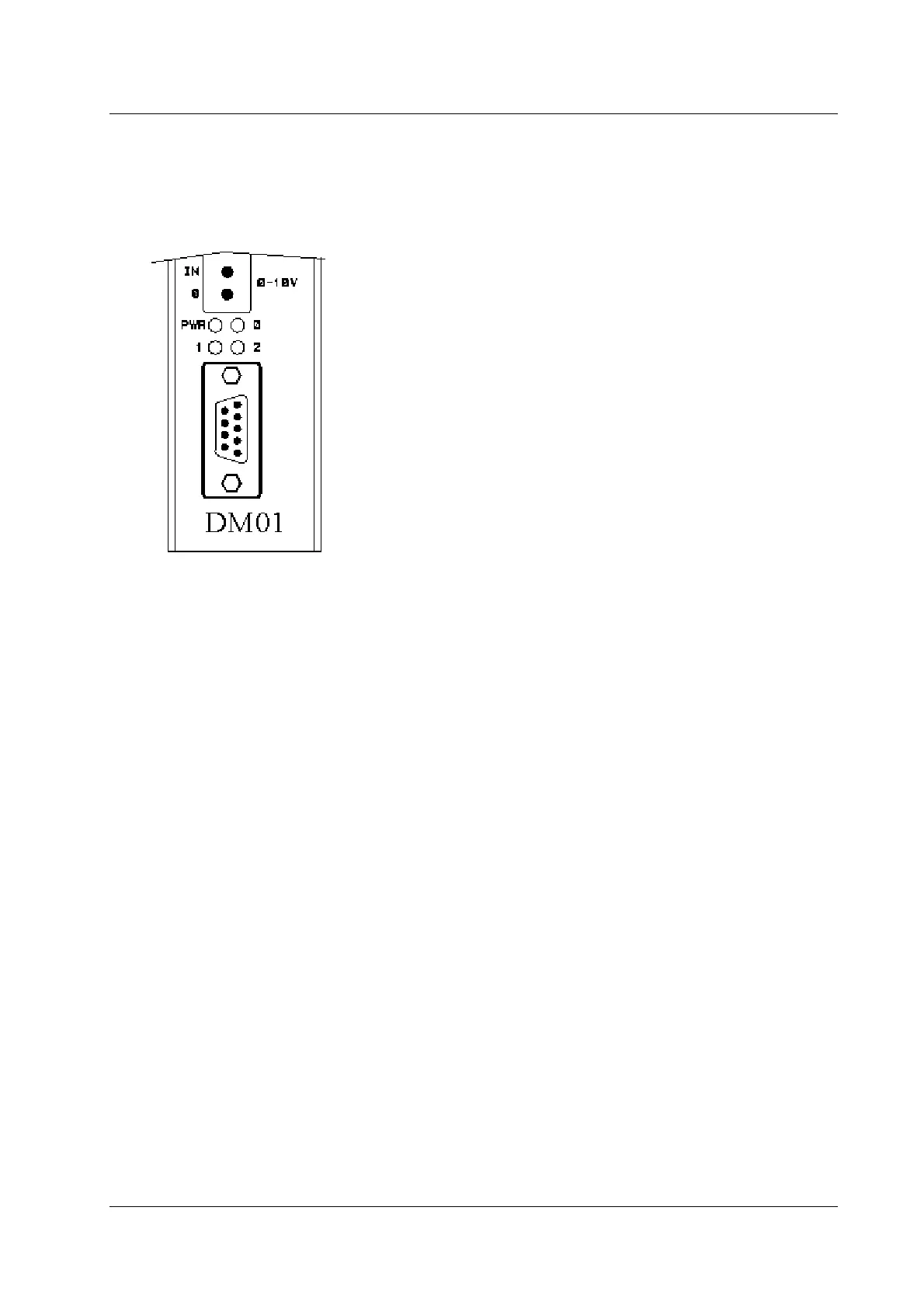

Like every Delem module, the DM01 module for the part support has several LED's on the front
which indicate the status of the module.
When used for a part support, the LED's 1 and 2 have the following meaning:
Diag 1
Diag 2
Part support disabled OFF OFF
Part support enabled ON OFF
Part support angle larger than
minimum angle.
OFF ON
