Delem
V1101, 3.50
Parameter 50: Machine length between the cylinders
Range : 0 - 15000
Default : 2000
Units : mm
Function
The length of machine table between the cylinders will be used to compute the table deflection.
Description
This parameter is used to compute the machine table deflection. The table deflection is only
computed when a crowning adjustment device is connected. (See chapter 6).
You have to program the machine length between the mid position of the 2 cylinders. See also
machine parameters ‘Inertia under beam’, and ‘Inertia upper beam’.

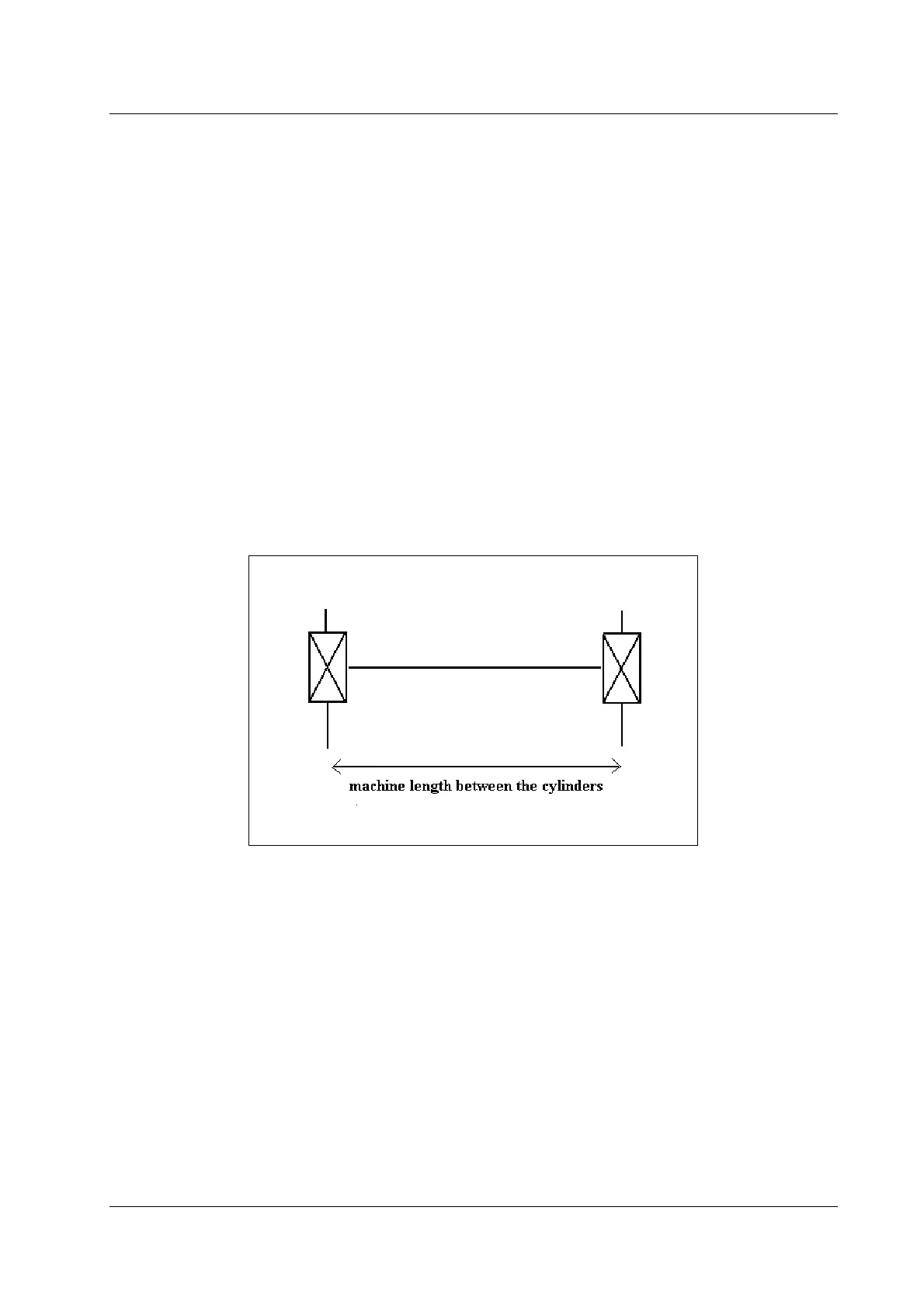

Figure 50.a
