Delfield 4400P Series User Manual

16 Part Number: 9295093A 02/21
Installation Section 2

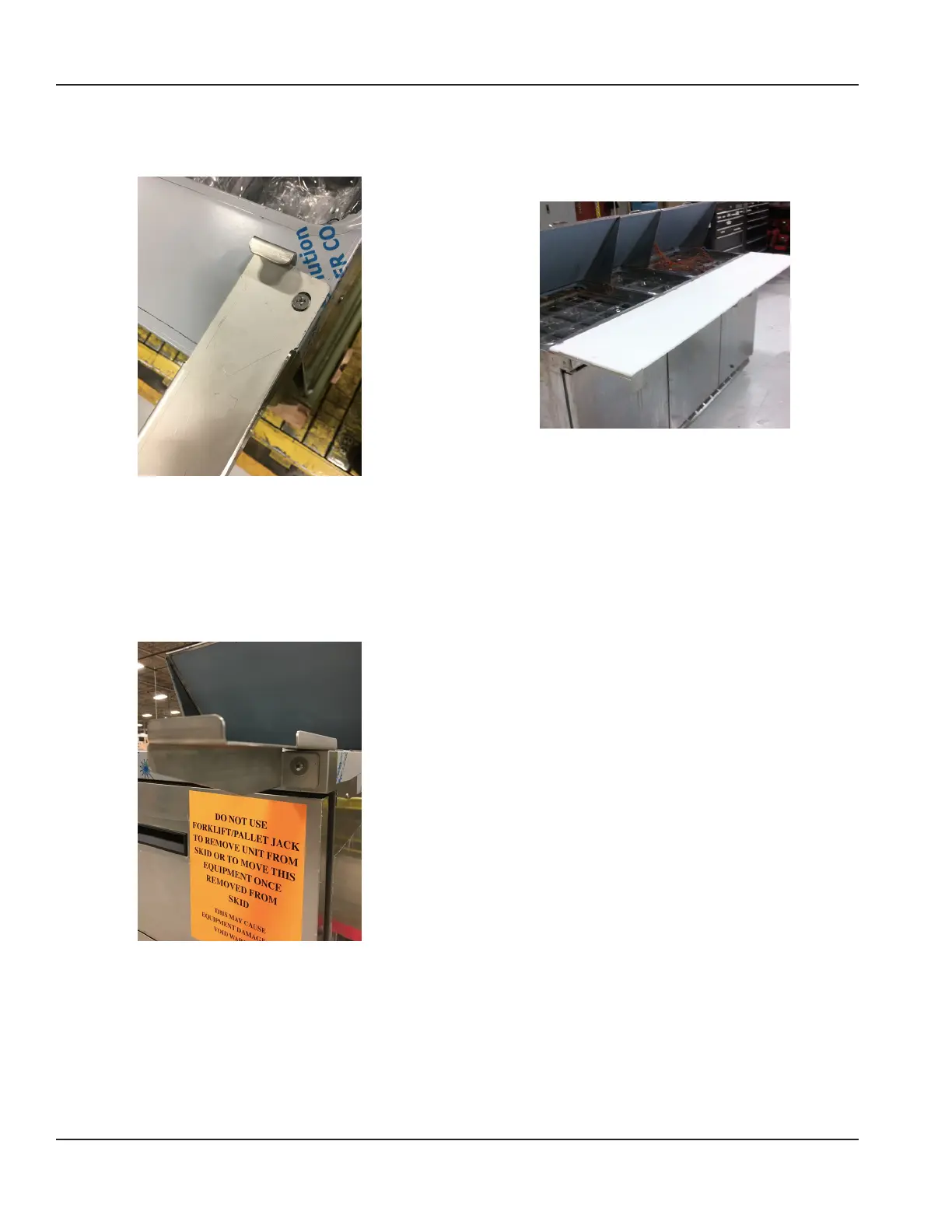

Heavy Duty Cutting Board Bracket Mounting Instructions
1. Attach each bracket to the top of the unit with one flat
head screw (9324092).
Top
2. Attach each bracket to the face of the unit with one
fender washer (9324043) and one pan head screw
(9321519).
• Some adjustment to align the brackets may be
necessary once the cutting board is installed.
• Do not over tighten the screws.
Face
3. Install the cutting board onto the brackets.
• Make final bracket adjustments so the cutting board
sits flush in the brackets.
• Tighten screws.

Delfield 4400P Series Specifications

General

Brand	Delfield
Model	4400P Series
Category	Refrigerator
Language	English
