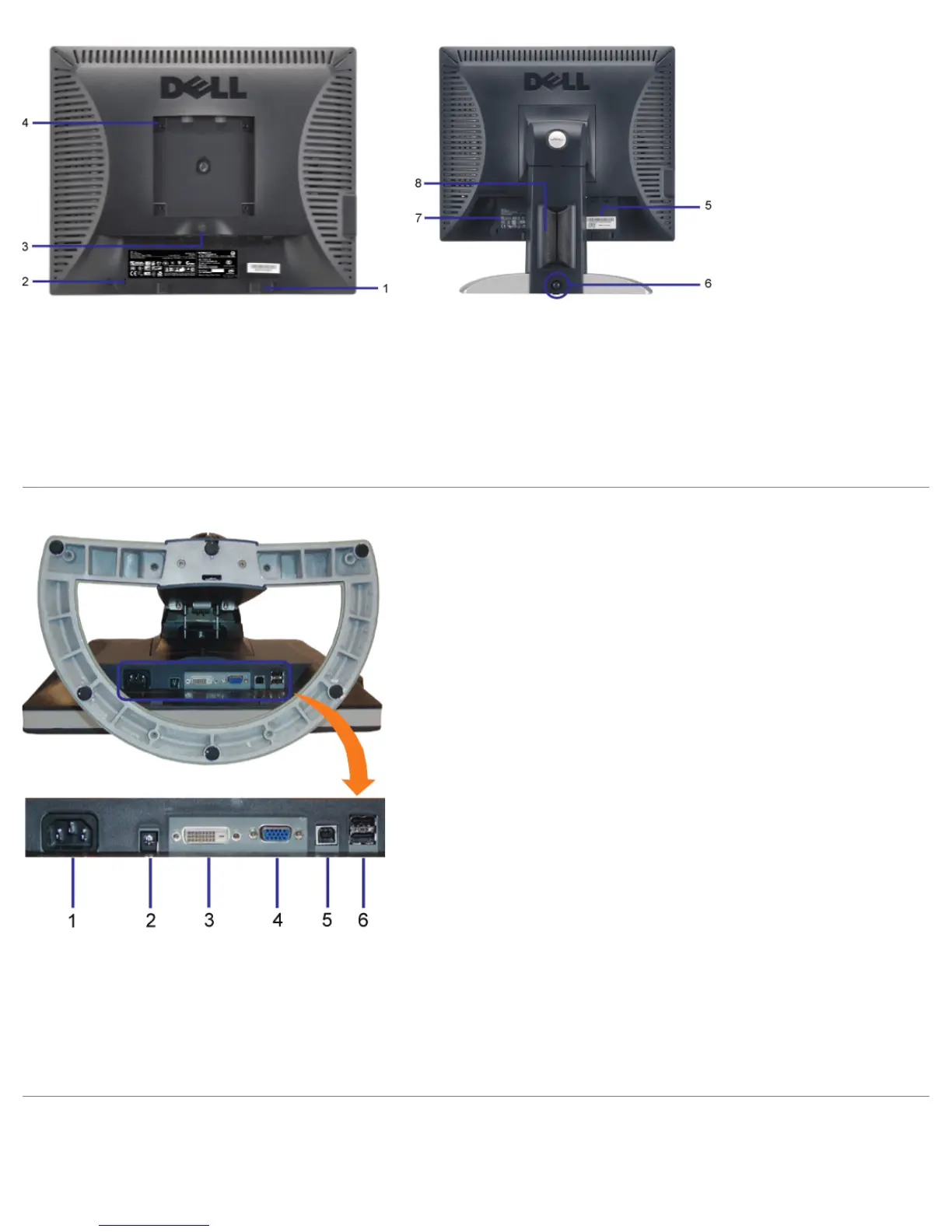

1. Dell Soundbar mounting brackets — Attach the optional Dell Soundbar.
2. Security lock slot — Attach a lock to secure your monitor.
3. Stand removal button — Press to release the stand.
4. VESA mounting holes (100mm [Behind attached base plate]) — Use to mount the monitor.
5. Barcode serial number label — Refer to this label if you need to contact Dell for technical support
6. Lock down/release button — Push the monitor down, press the button to unlock the monitor, and then lift the monitor to the desired height.
7. Regulatory rating label — Lists the regulatory approvals.
8. Cable holder — Help organize cables by placing them in the holder.
Bottom View
1. Power connector - Connect the power cable
2. Dell Soundbar power connector - Connect the power cord for the Soundbar (optional)
3. DVI connector - Connect your computer DVI cable
4. VGA connector - Connect your computer VGA cable
5.
USB upstream connector - Connect the USB cable that came with your monitor to the monitor and the computer. Once this cable is connected you can use the USB
connectors on the side and bottom of the monitor.
6.
USB connector - Connect your USB devices. You can only use this connector after you have connected the USB cable to the computer and USB upstream connector on
the monitor.
