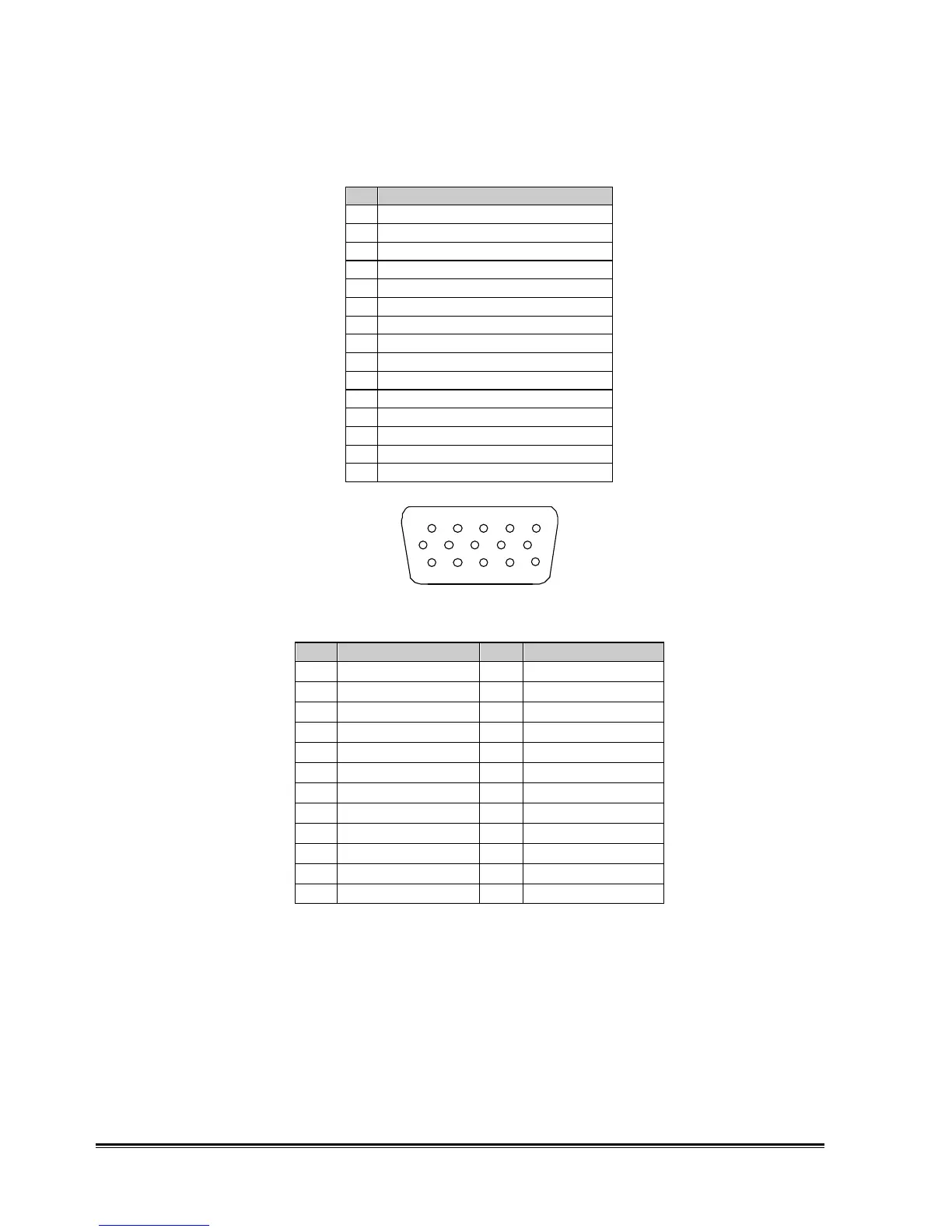

Appendix 1 – Video Connector
Analog input I: 15-pin D-SUB connector
PIN
SIGNAL
1 RED VIDEO
2 GREEN VIDEO
3 BLUE VIDEO
4 GND
5 Self-test (Cable detector)
6 RED GND
7 GREEN GND
8 BLUE GND
9 PC5V
10 SYNC GND
11 GND
12 DDC DATA (SDA)
13 HORIZONTAL SYNC(H+V)
14 VERTICAL SYNC
15 DDC CLOCK (SCL)
1 5
6 10
11 15
15-pin D-SUB female
Digital input: 30-pin DVI-D connector
Pin Signal assignment Pin Signal assignment
1 TMDS RX2- 13 Floating
2 TMDS RX2+ 14 +5V Power
3 TMDS Ground 15 Ground
4 Floating 16 Hot Plug Detect
5 Floating 17 TMDS RX0-
6 DDC Clock 18 TMDS RX0+
7 DDC Data 19 TMDS Ground
8 Floating 20 Floating
9 TMDS RX1- 21 Floating
10 TMDS RX1+ 22 TMDS Ground
11 TMDS Ground 23 TMDS Clock+
12 Floating 24 TMDS Clock-
