Dell 2007FPB User Manual

9/20/12
Documentation
8/10
support.dell.com/support/edocs/monitors/2007FP/en/ug/about.htm#Front View
12 Floating
13 Floating
14 +5V / +3.3V power
15 Self test
16 Hot Plug Detect
17 TMDS RX0-
18 TMDS RX0+
19 TMDS Ground
20 Floating
21 Floating
22 TMDS Ground
23 TMDS Clock+
24 TMDS Clock-

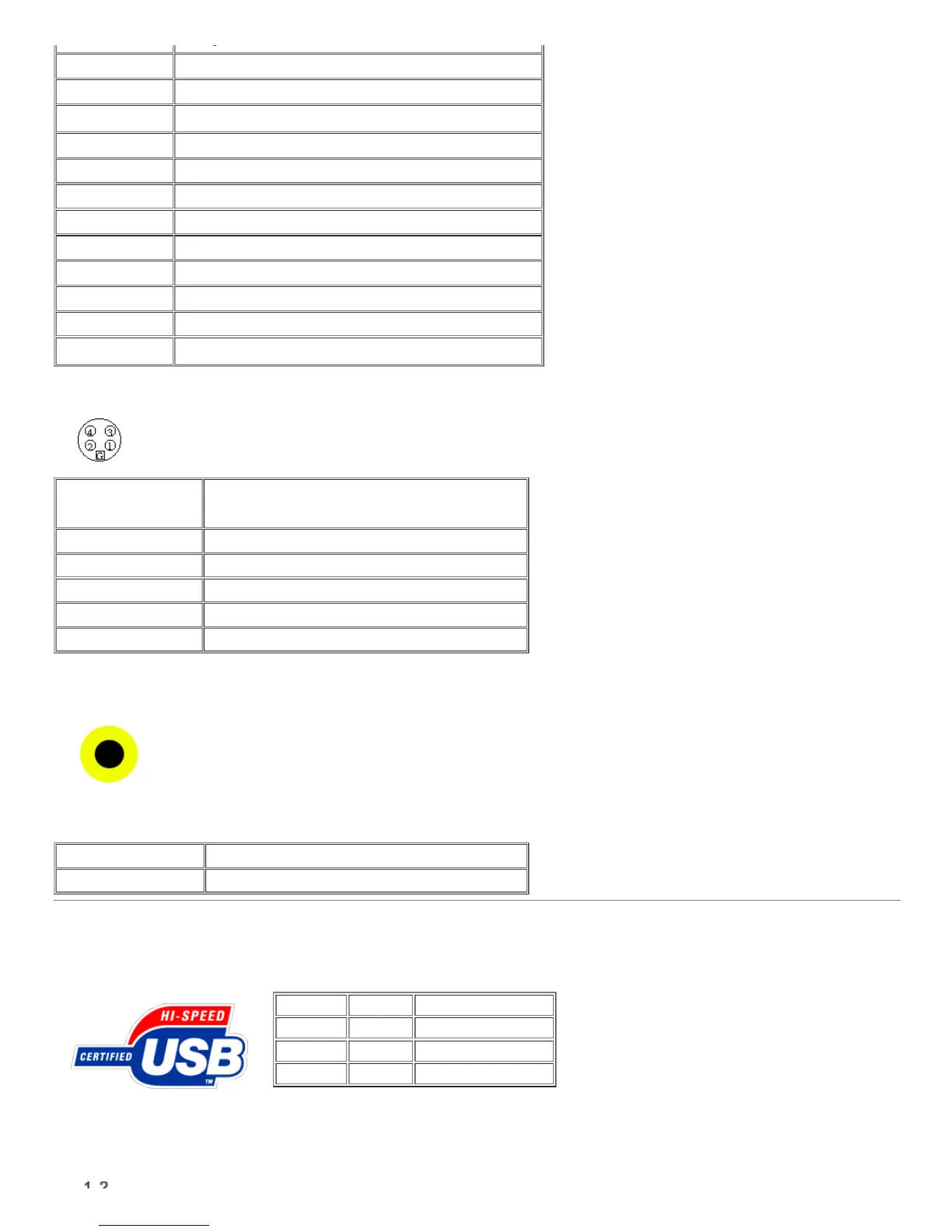

S-video Connector
Pin Number 5-pin Side of the Connected Signal Cable (Cable not included)
1 GND
2 GND
3 LUMA
4 CHROMA
5 GND
Composite Video Connector
Pin Number 1-pin Side of the Connected Signal Cable (cable not included)
1 LUMA COMPOSITE CHROMA
Universal Serial Bus (USB) Interface
This monitor supports High-Speed Certified USB 2.0 interface.
Data Rate Power Consumption
High speed 480 Mbps 2.5W (Max., each port)
Full speed 12 Mbps 2.5W (Max., each port)
Low speed 1.5 Mbps 2.5W (Max., each port)
USB Upstream Connector
