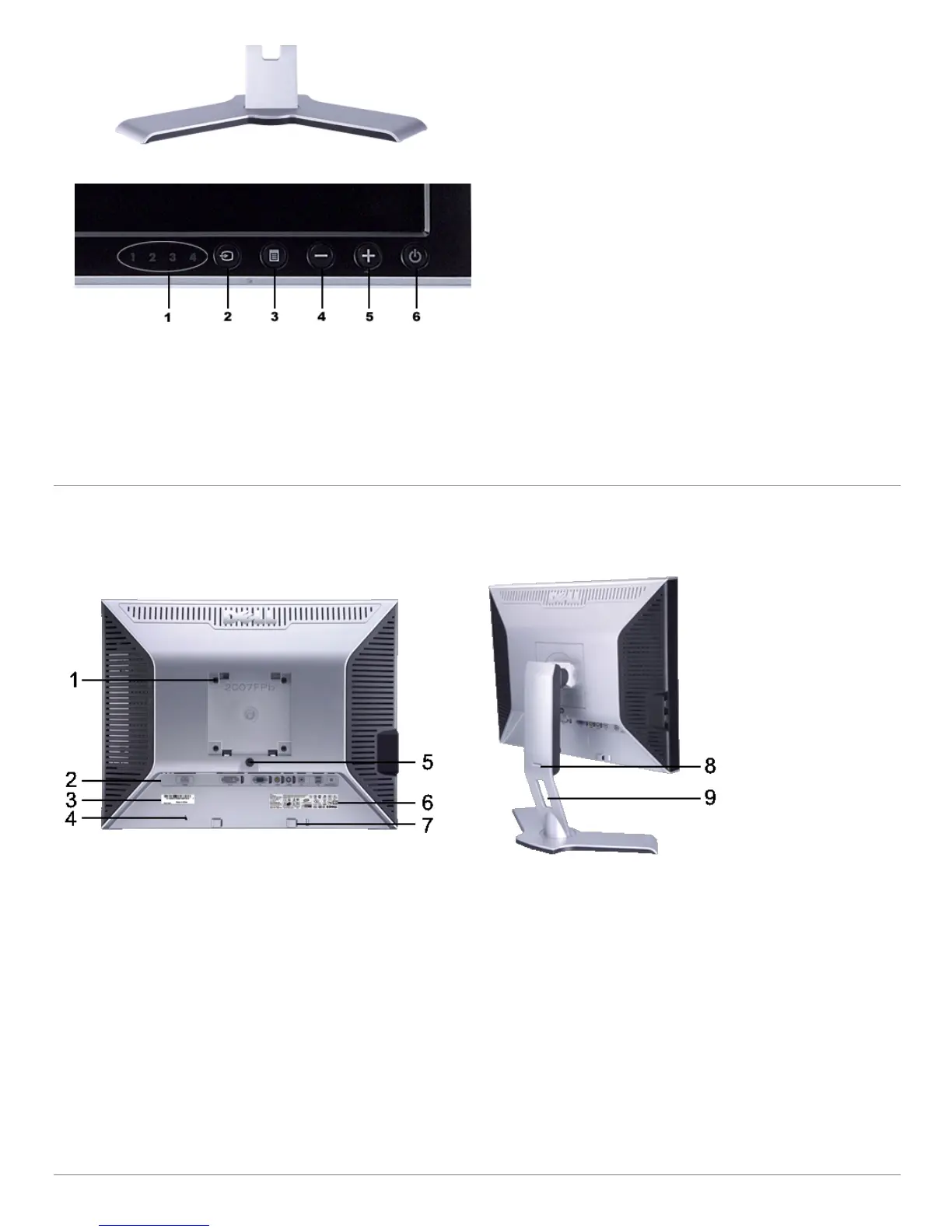

1 Input indicators
2 Input Source Select
3 OSD Menu / Select
4 Down (-)
5 Up (+)
6 Power button (with power light indicator)
Back View
1
VESA mounting holes (100mm)
(Behind attached base plate)
Use to mount the monitor.
2 Connectors label Indicate the positions and types of connectors.
3 Barcode serial number label
Refer to this label if you need to contact Dell for
technical support.
4 Security lock slot
Use a security lock with the slot to help secure your
monitor.
5 Monitor Lock/Release Button Press to release the stand from the monitor.
6 Regulatory rating label List the regulatory approvals.
7 Dell Soundbar mounting brackets Attach the optional Dell Soundbar.
8
Lock down/release button
Push the monitor down, press the button to unlock
the monitor, and then lift the monitor to the desired
height.
9 Cable management hole
Help organize cables by placing them through the
hole.
