Dell 2707WFP - Universal Serial Bus (USB) Interface

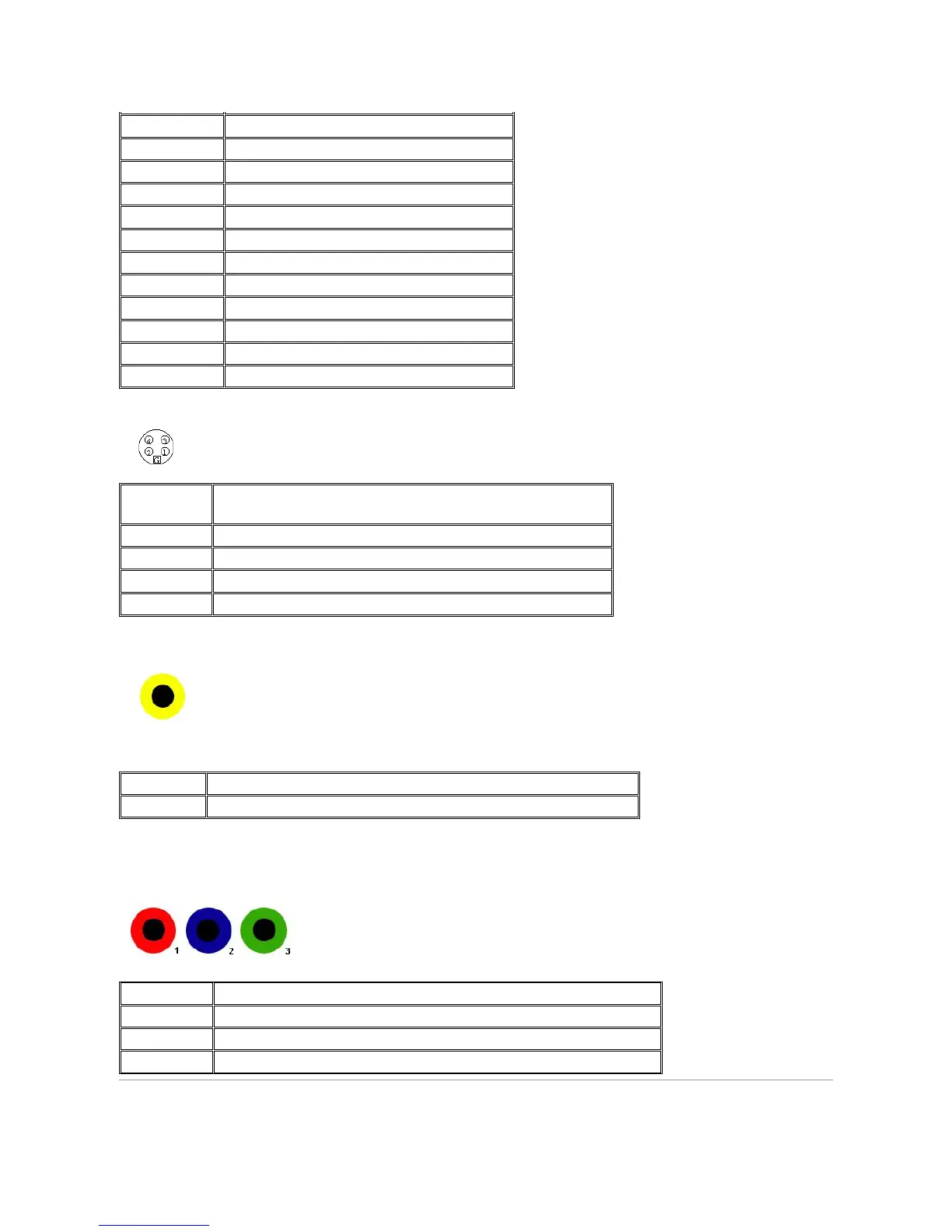

S-video Connector

Composite Video Connector

Component Video Connector

Universal Serial Bus (USB) Interface
13
Floating
14
+5V / +3.3V power
15
Self test
16
Hot Plug Detect
17
TMDS RX0-
18
TMDS RX0+
19
TMDS Ground
20
Floating
21
Floating
22
TMDS Ground
23
TMDS Clock+
24
TMDS Clock-
Pin Number
5-pin Side of the Connected Signal Cable (Cable not included)
1
GND
2
GND
3
LUMA
4
CHROMA
Pin Number
1-pin Side of the Connected Signal Cable (cable not included)
1
LUMA COMPOSITE CHROMA
Pin Number
3-pin Side of the Connected Signal Cable (Cable not included)
1
Pr (Color differential signal)
2
Pb (Color differential signal)
3
Y (Luminance signal)
