66 Maintenance

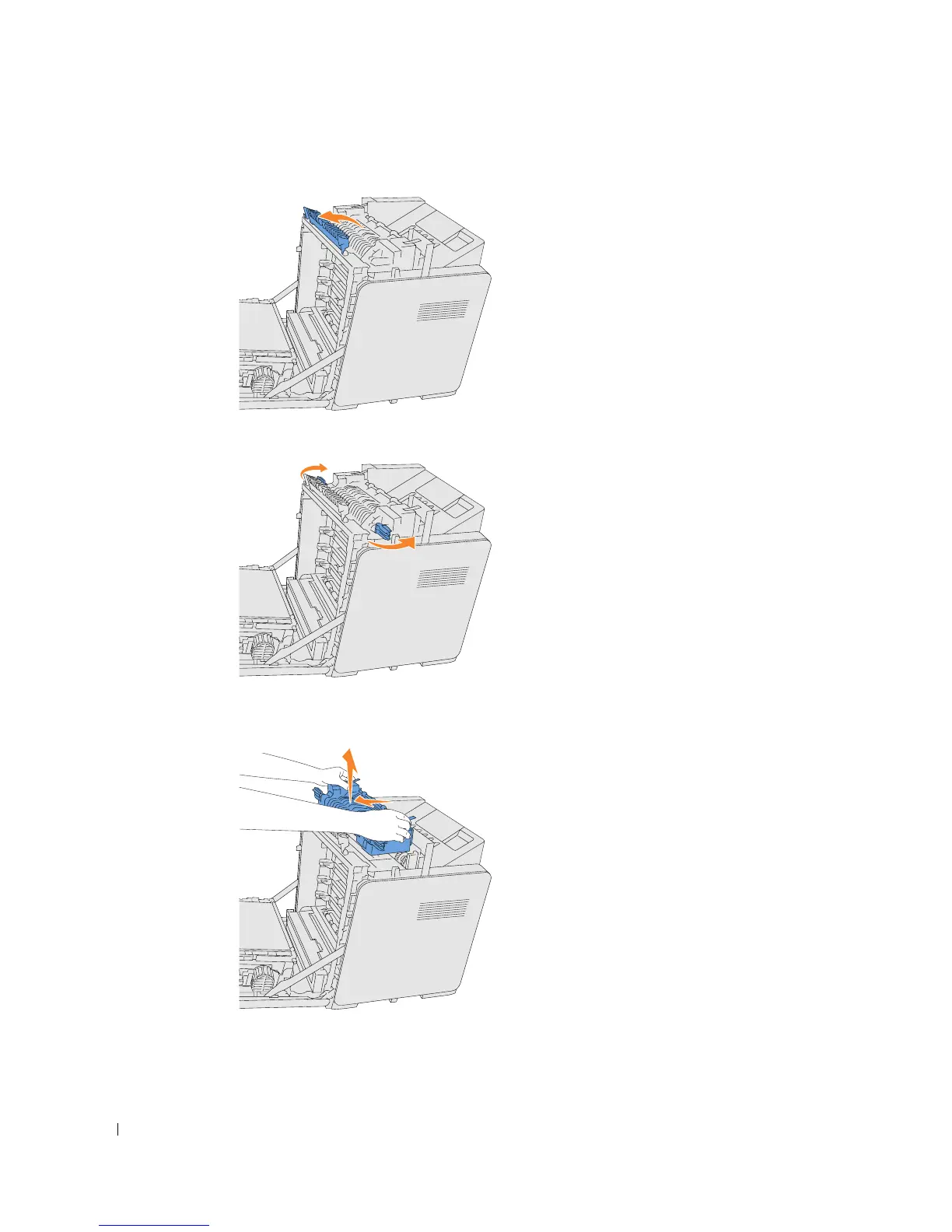

3. Lift the chute gate to its upright position.
4. Release the levers at both ends of the fuser.
5. Hold both sides of the installed fuser, pull it towards the front of the printer to release the
connection on the right side, then lift upward to remove.
