74 Maintenance

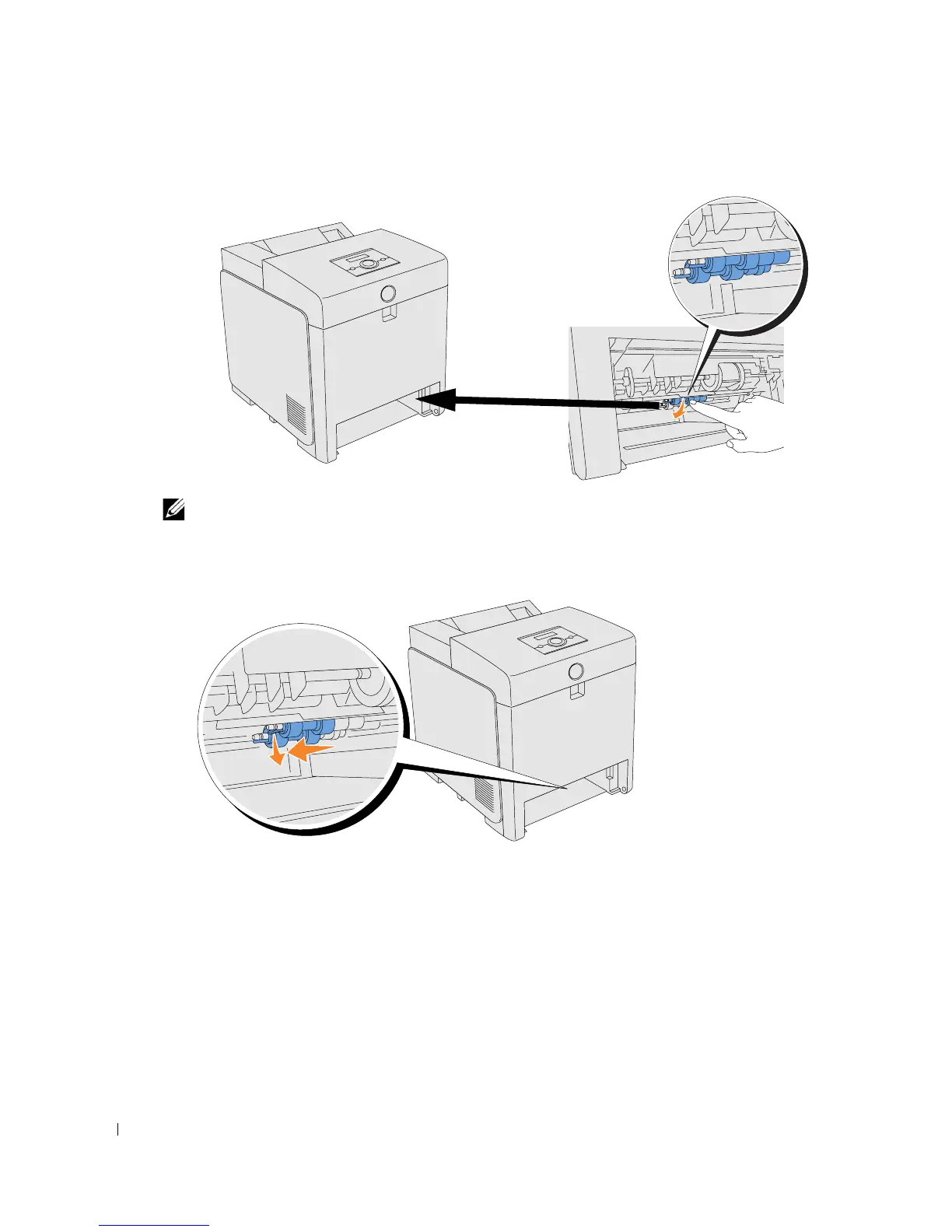

2. Turn the separator roller until the roller hook can be seen.
NOTE: The roller is located approximately 165 mm (6.5 in.) inside the machine as measured from the face
of the paper tray opening.
3. Pull the separator roller hook out of the groove on the axle, and then slide the separator roller
to the left.
