78 Maintenance

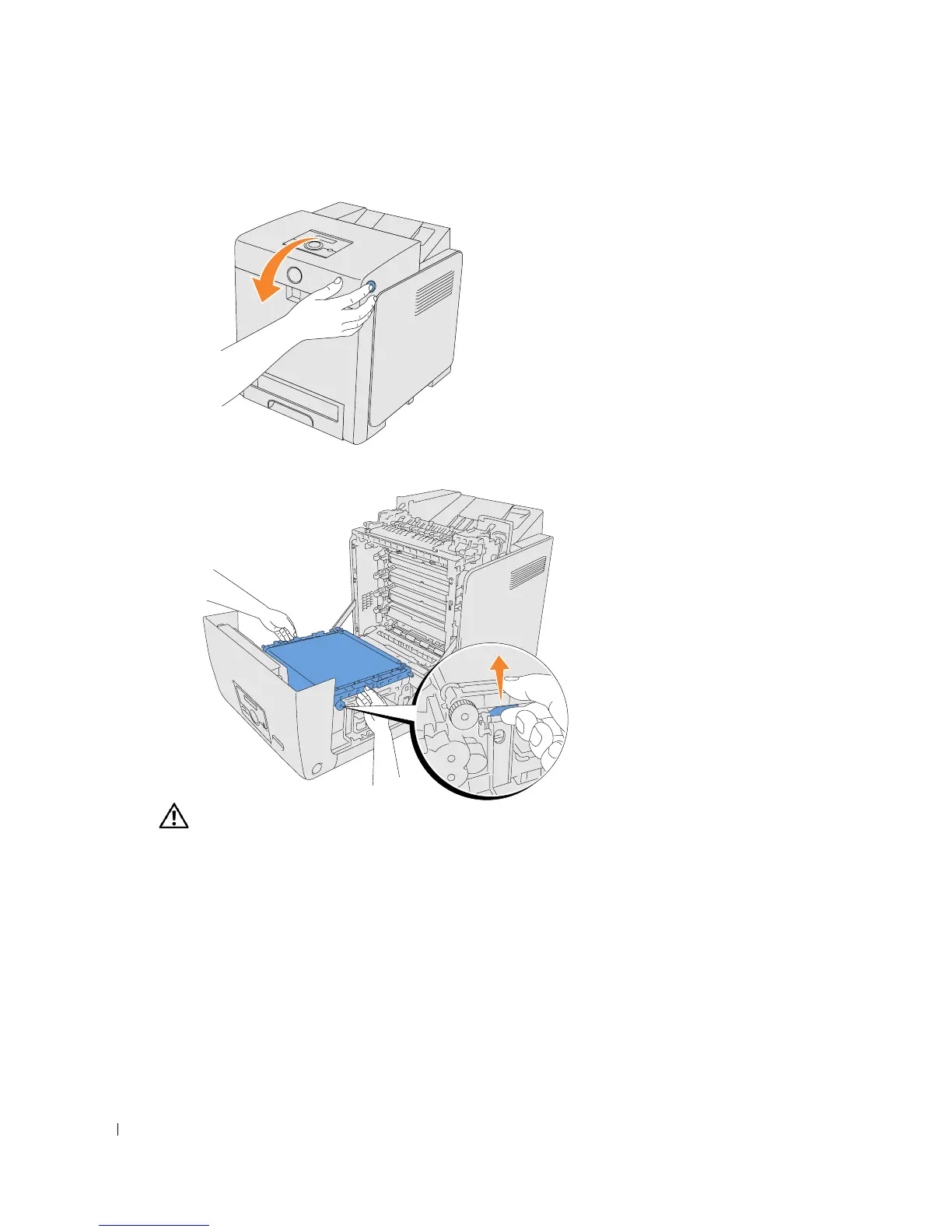

2. Push the side button and open the front cover.
3. Pull up on the belt release levers and rotate the belt unit up as shown in the illustration.
CAUTION: Do not touch the inside of the printer. Some parts may be hot. Allow time for the printer to
cool before attempting to remove parts in this area.
