Dell 4210X - 2 Connecting Your Projector

Connecting Your Projector 9
2
Connecting Your Projector
CAUTION: Before you begin any of the procedures in this section, follow the
Safety Instructions as described on page 7.

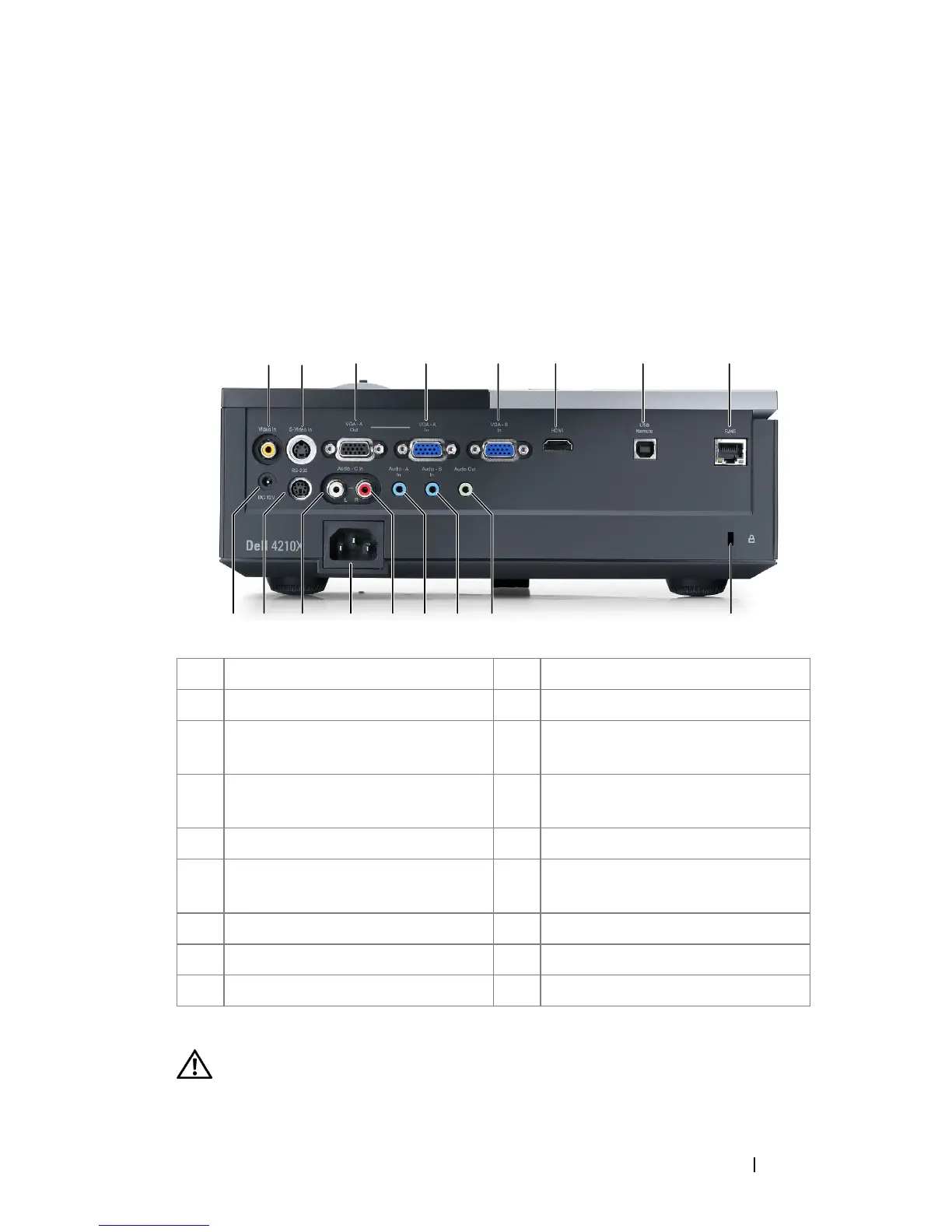

1 Composite video connector 10 Audio output connector
2 S-video connector 11 Audio-B input connector
3 VGA-A output
(monitor loop-through)
12 Audio-A input connector
4 VGA-A input (D-sub) connector 13 Audio-C right-channel input
connector
5 VGA-B input (D-sub) connector 14 Power cord connector
6 HDMI connector 15 Audio-C left-channel input
connector
7 USB remote connector 16 RS232 connector
8 RJ45 connector 17 +12V DC out connector
9 Security cable slot
3 4 5 6 7 81 2
910111213151617 14
