Dell Alienware 13 - Page 59

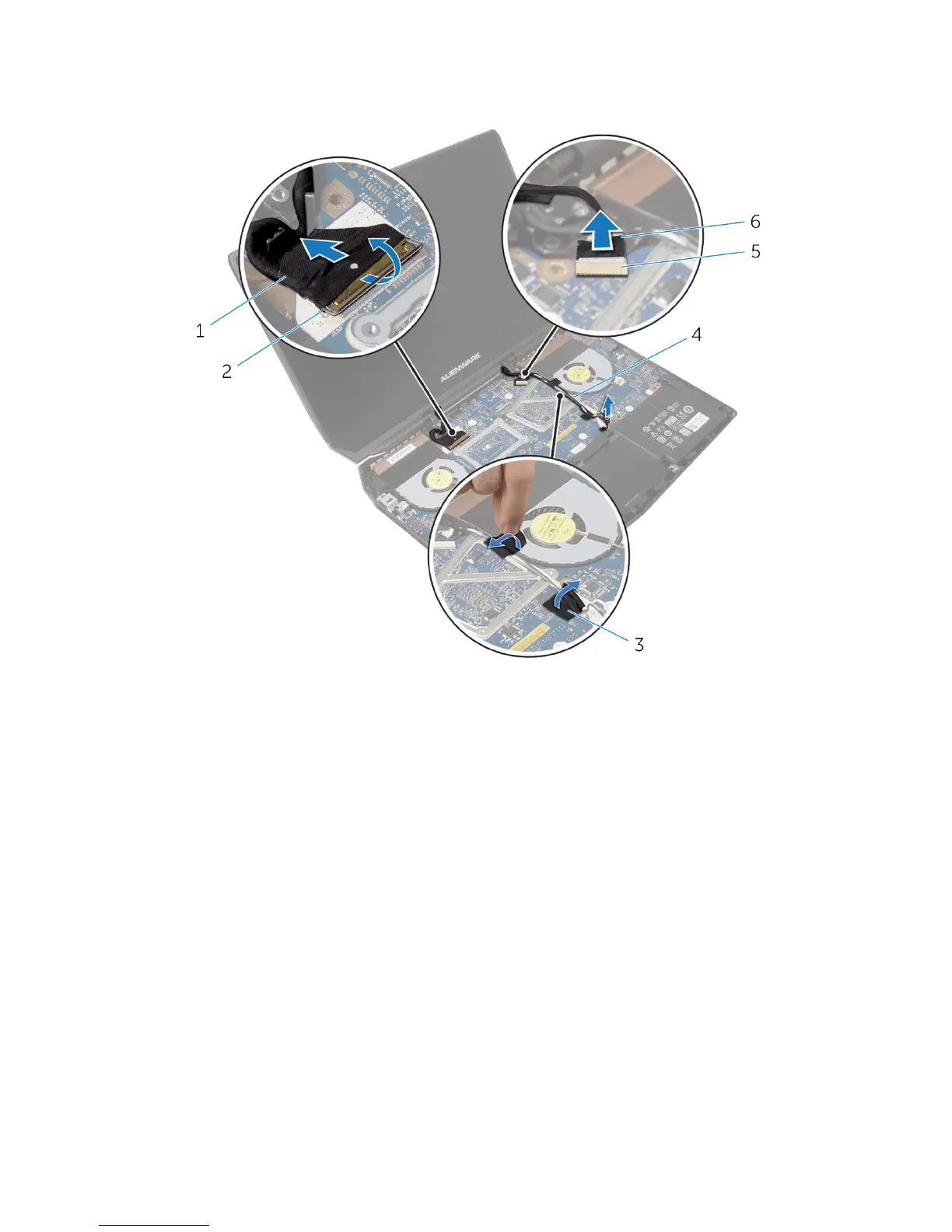

13 Disconnect the logo-board cable from the system board and remove it
from the routing guides on the display hinges.
1 display cable 2 connector latch
3 adhesive tapes (2) 4 antenna cables (2)
5 connector 6 logo-board cable
59
