Dell Alienware 15

To Next Page

To Previous Page

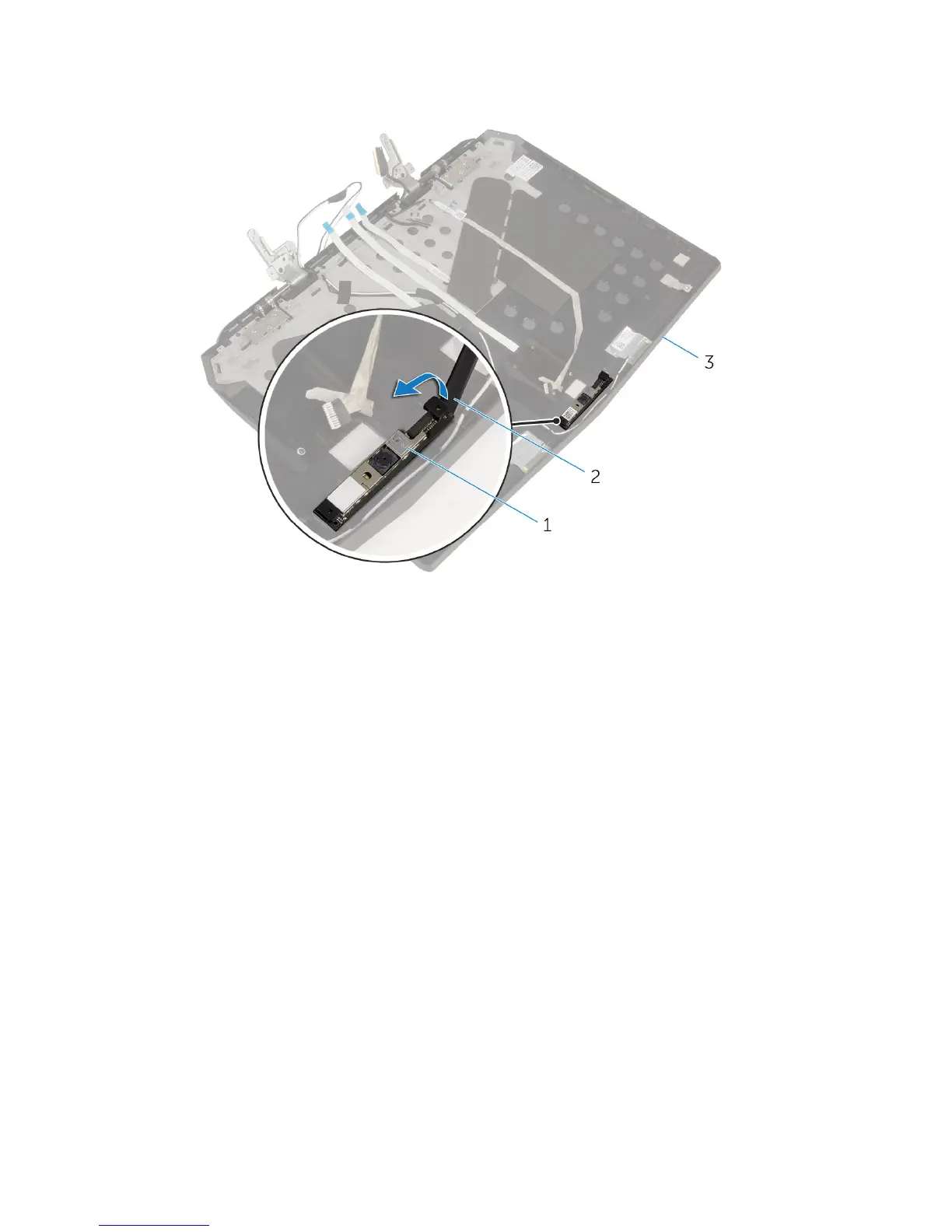

2 Note the location of the camera module and pry it off the display back-

cover using a plastic scribe.

1 camera module 2 plastic scribe

3 display back-cover

101
