Procedure

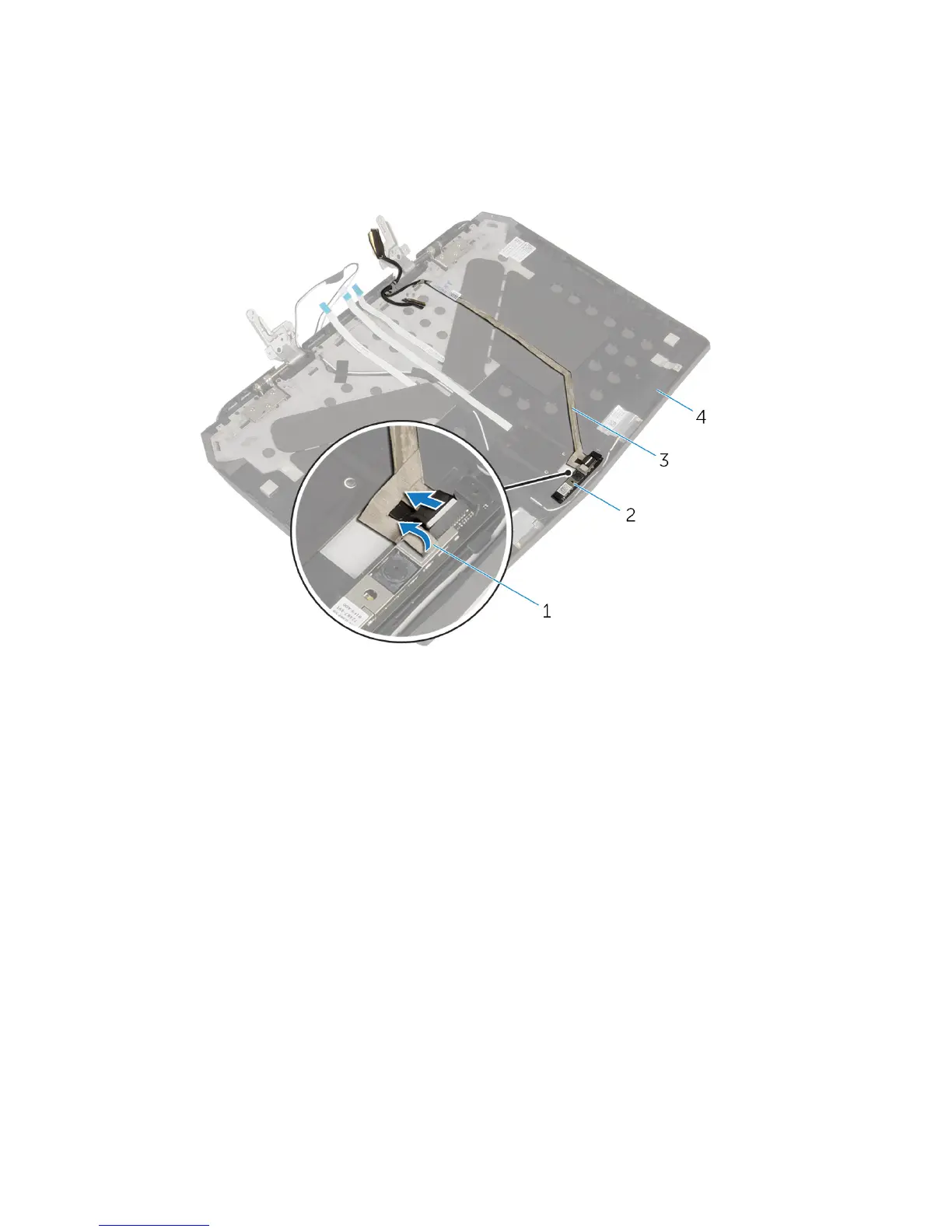

1 Peel off the tape that secures the camera cable to the camera and

disconnect the camera cable from the camera module.

1 tape 2 camera module

3 camera cable 4 display back-cover

100
