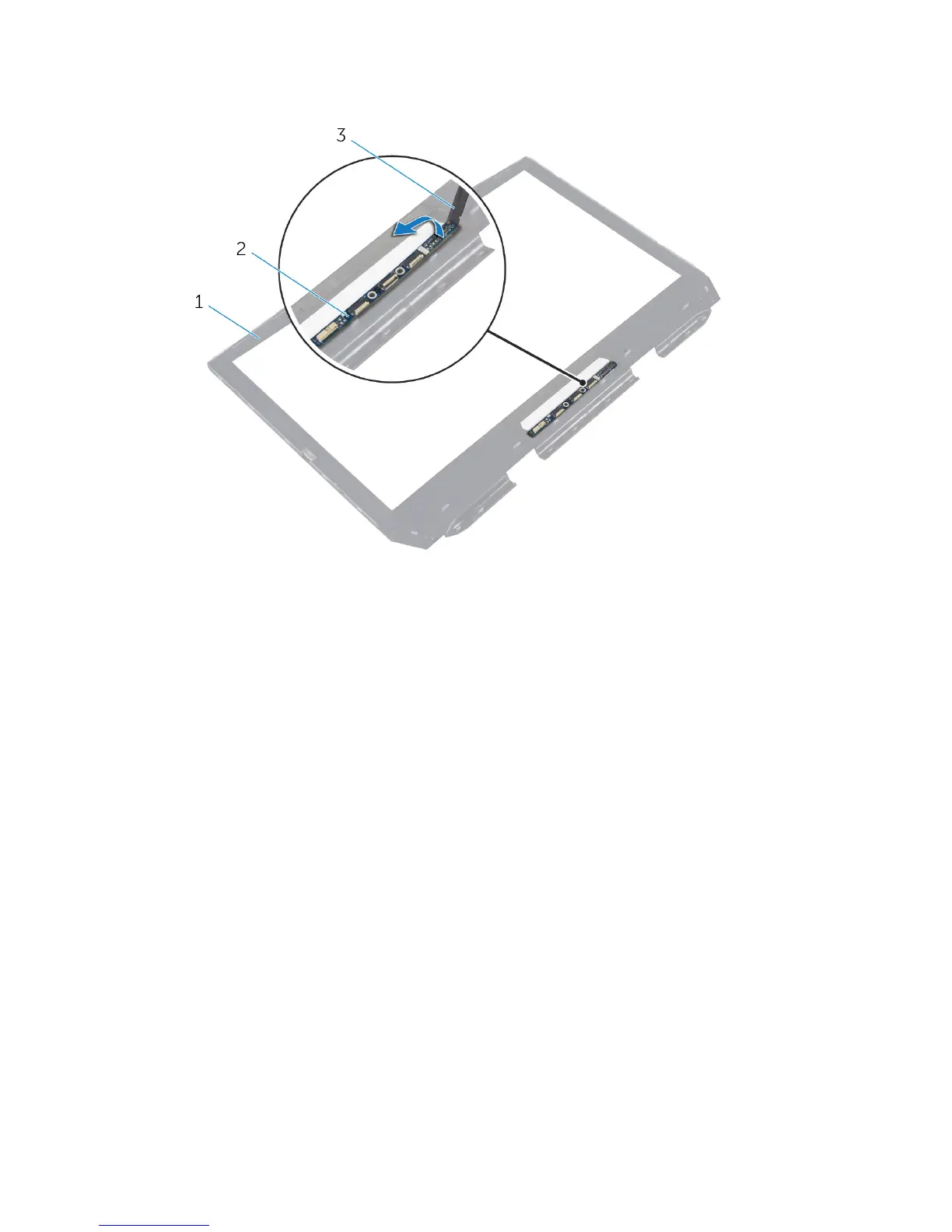

2 Note the location of the logo board and pry the logo board off the display

bezel using a plastic scribe.

1 display bezel 2 logo board

3 plastic scribe

112
