Dell Alienware 15 - Page 37

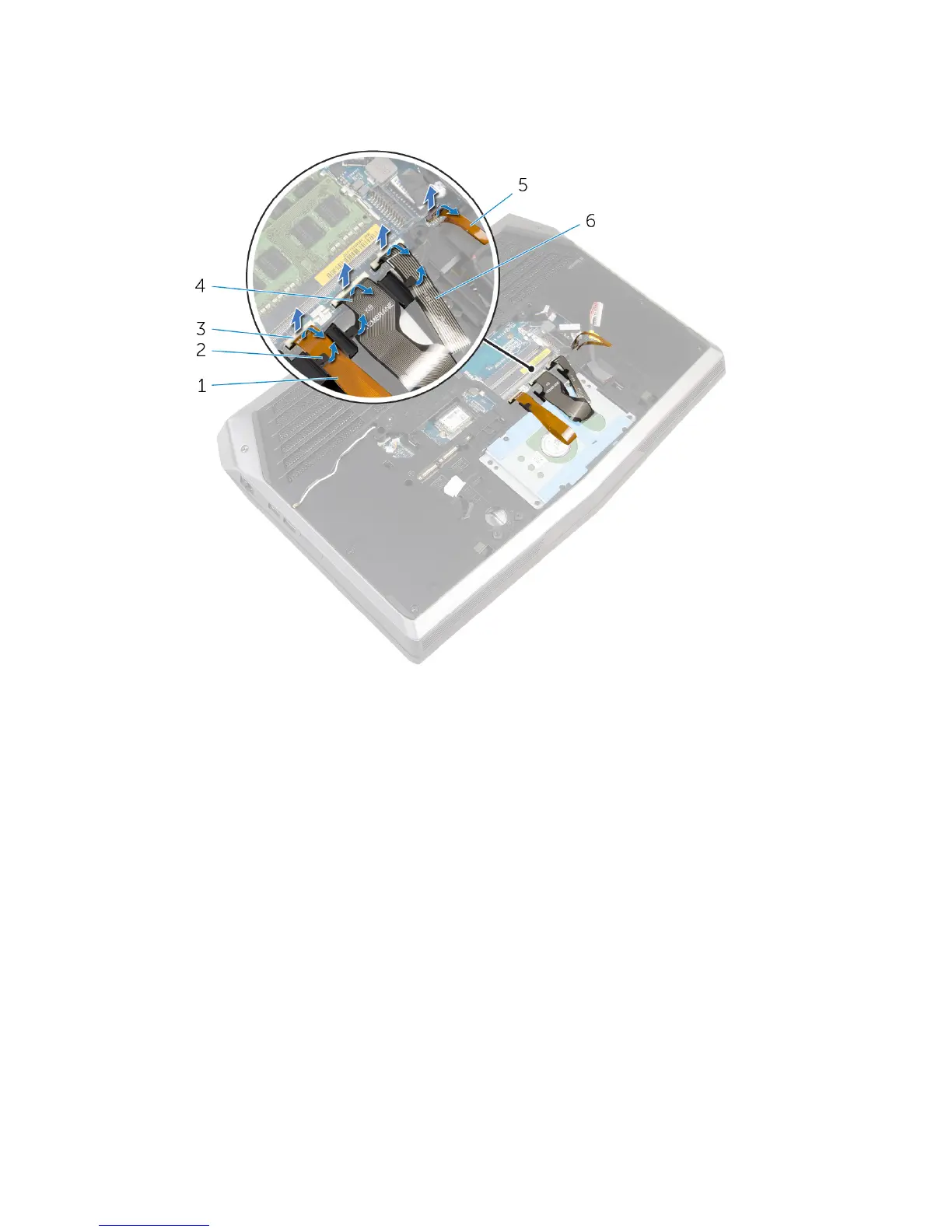

2 Lift the latches and disconnect the keyboard-backlight cable, keyboard
cable, macro-keys cable, and macro-keys backlight cable from the system
board.
1 keyboard-backlight cable 2 routing guides (3)
3 latches (4) 4 keyboard cable
5 macro-keys backlight cable 6 macro-keys cable
37
