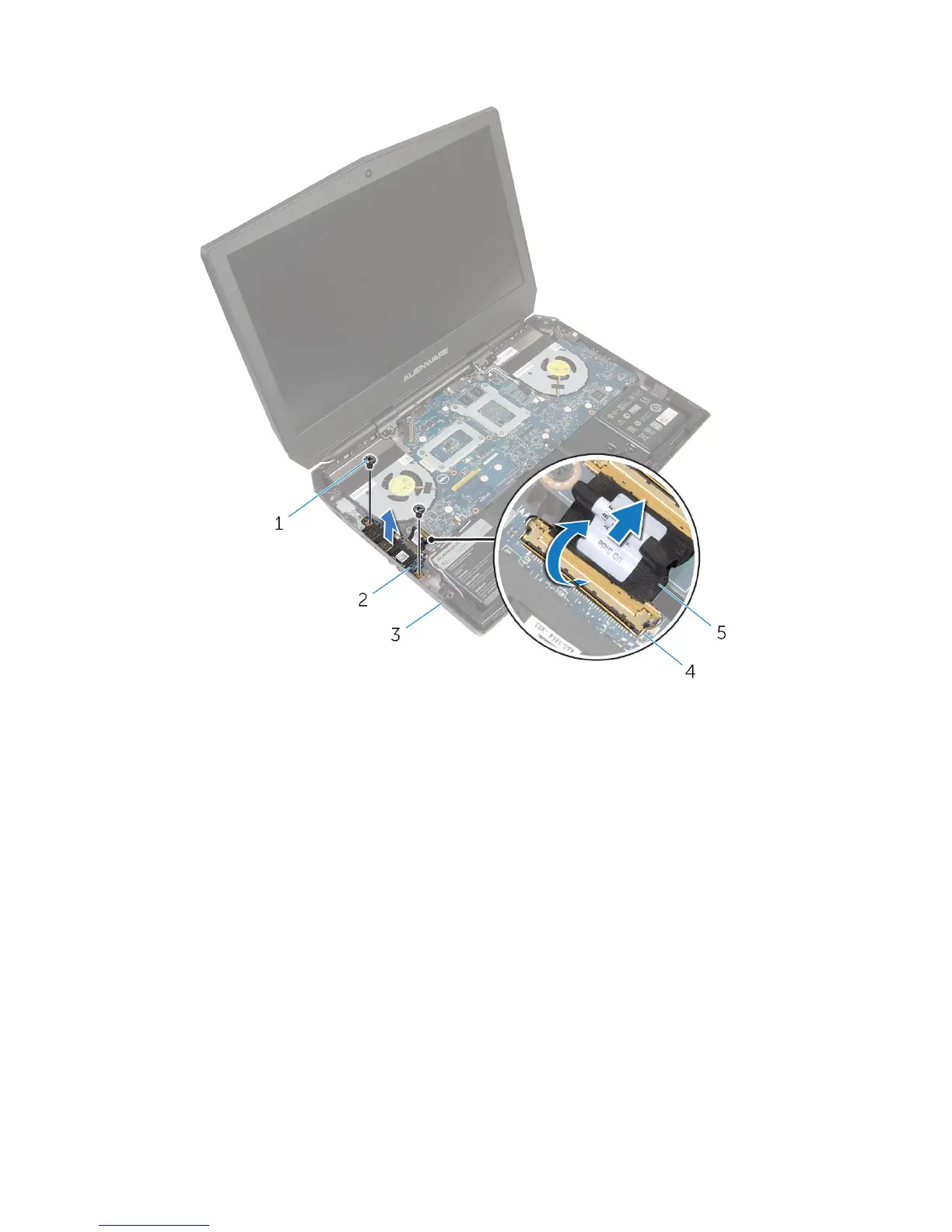

3 Lift the I/O board off the computer base.

1 screws (2) 2 I/O board

3 computer base 4 latch

5 I/O-board cable
