Dell Alienware 15

To Next Page

To Previous Page

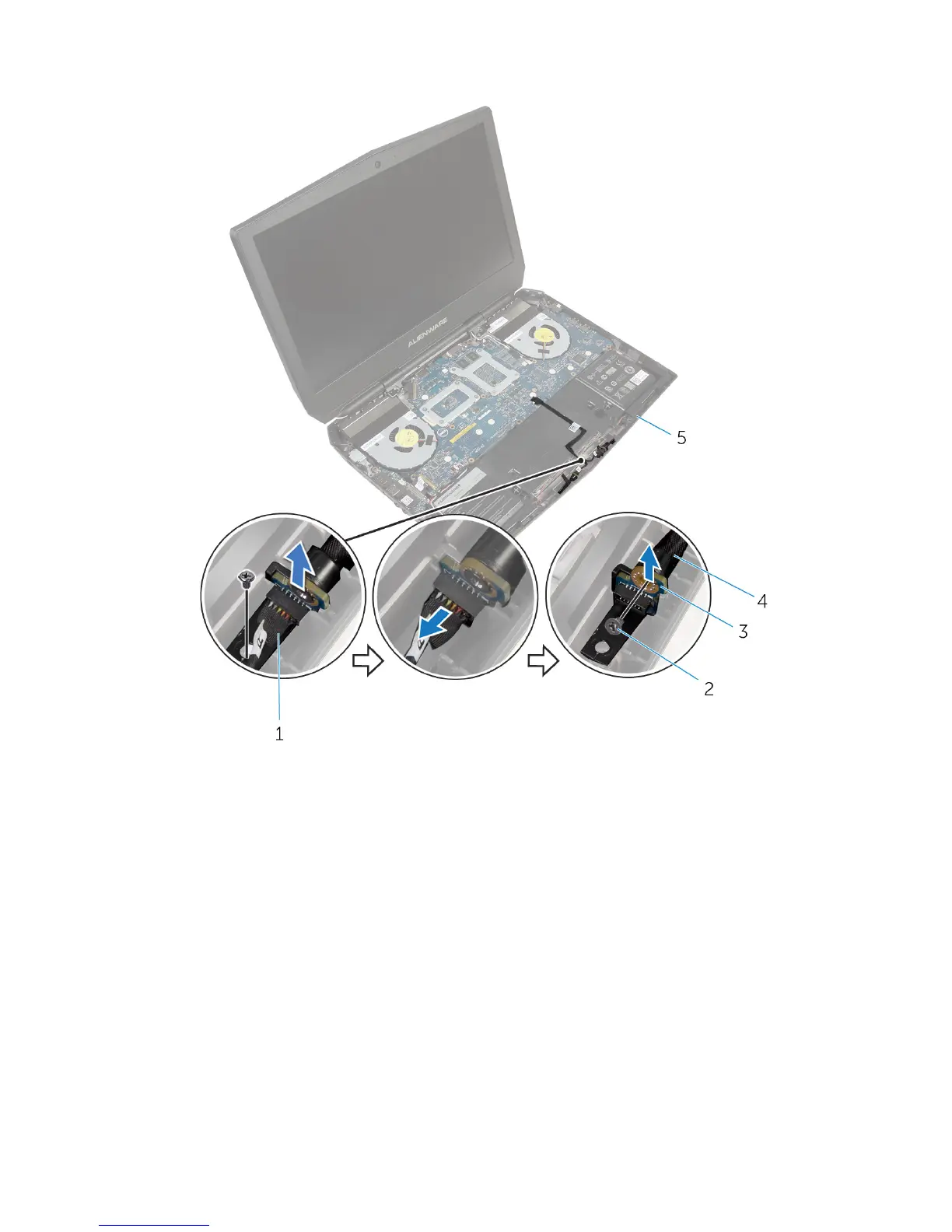

4 Lift the front AlienFX LED boards of the tubes.

1 front AlienFX LED board

cables (2)

2 screws (4)

3 front AlienFX LED boards (2) 4 tubes (2)

5 computer base
