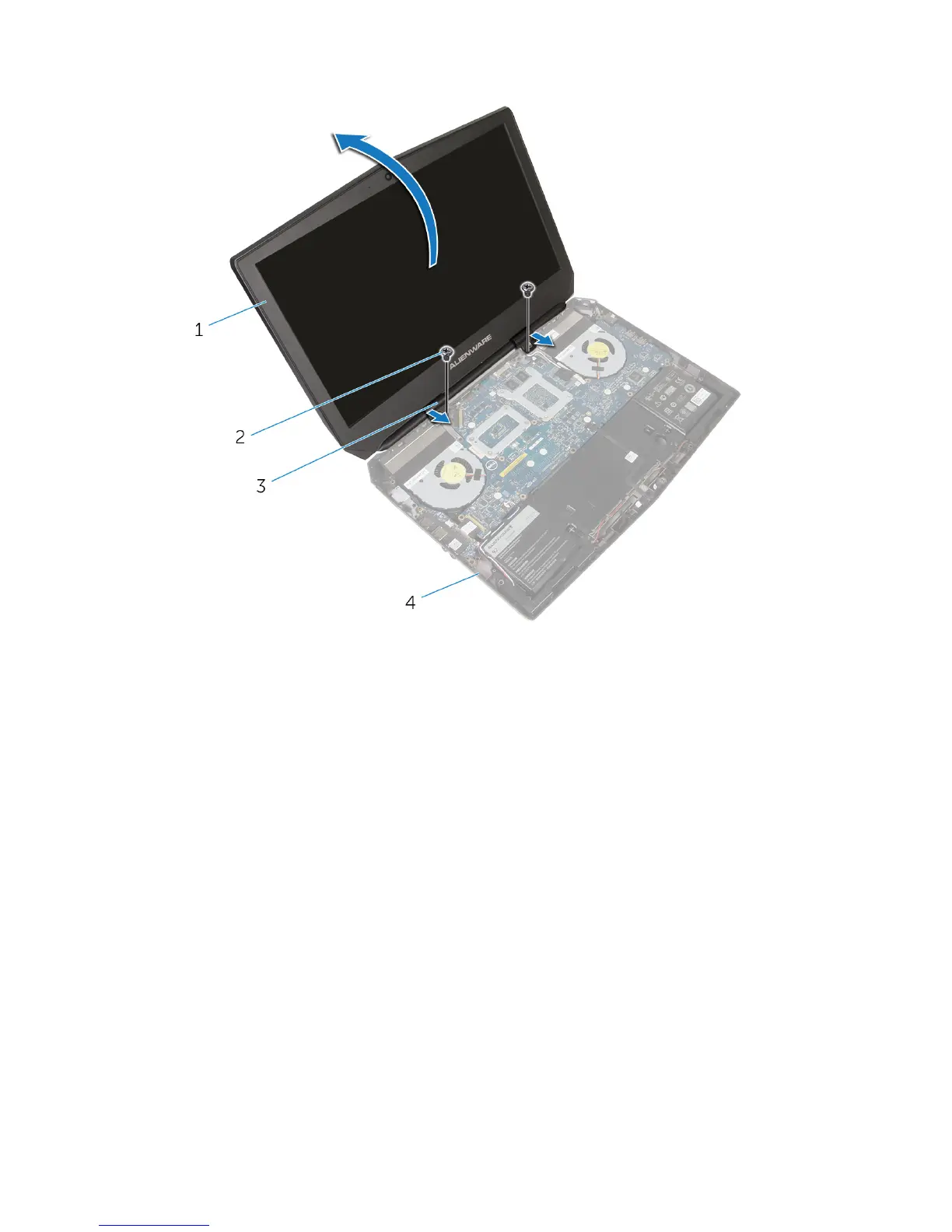

3 Remove the hinge covers from the computer base.

1 display assembly 2 screws (2)

3 hinge covers (2) 4 computer base
