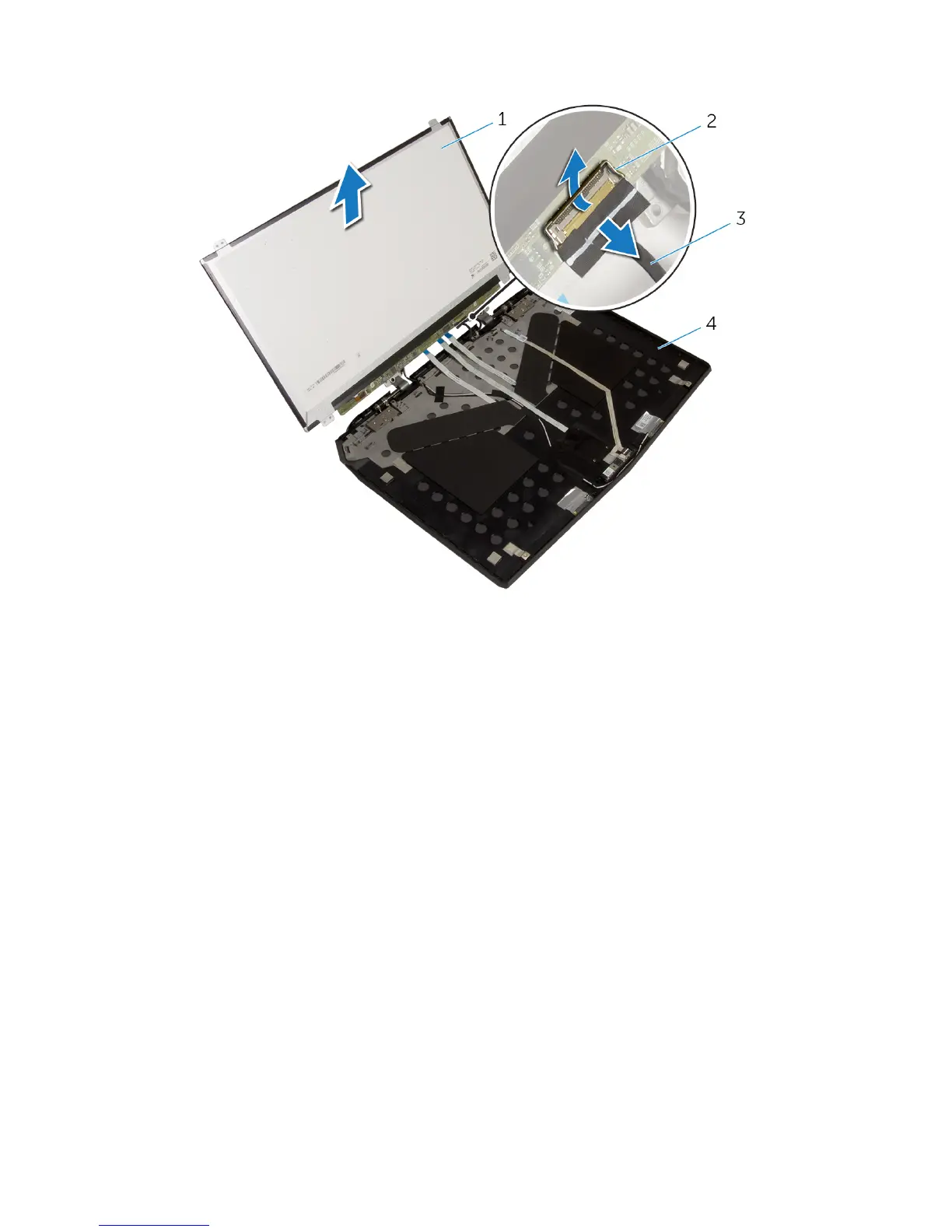

4 Lift the display panel off the display back-cover.

1 display panel 2 latch

3 display cable 4 display back-cover
