Dell D11S Service Manual

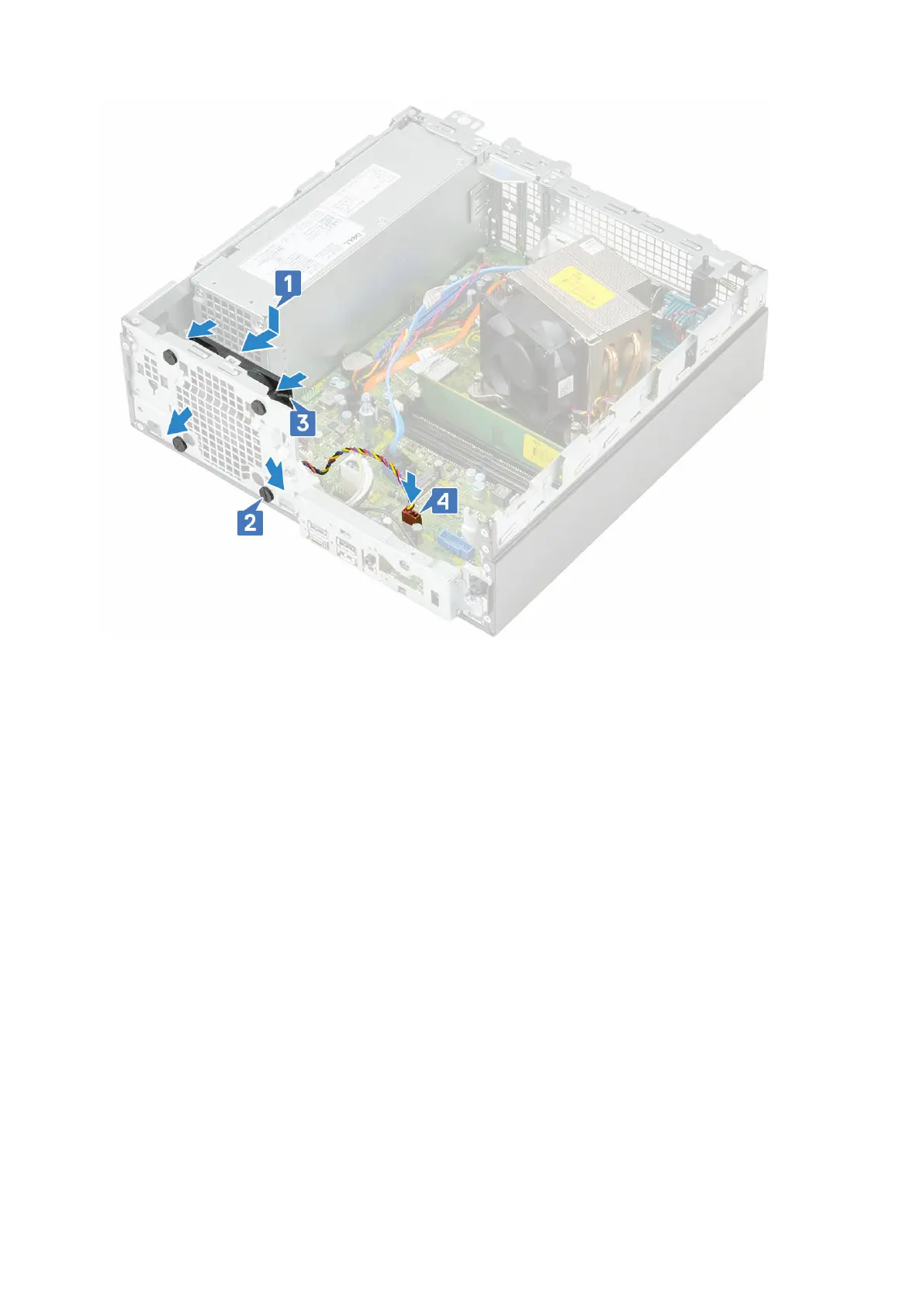

2. Install the:
a) Hard drive and optical drive module
b) Front bezel
c) Side cover
3. Follow the procedure in After working inside your computer.
System board
Removing system board
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a) Side cover
b) Front bezel
c) Hard drive and optical drive module
d) Heat sink and heat sink fan
e) Processor
f) Memory module
g) M.2 PCIe SSD card
h) Intel Optane card
i) SD card reader
j) M.2 2230 WLAN card
3. To remove the I/O panel:
a) Remove the screw that secures the I/O panel [1].
b) Rotate the I/O panel and remove it from the system [2].
Removing and Installing components
83

Dell D11S Specifications

General

Network	Gigabit Ethernet
Graphics	Intel GMA 3000
Optical Drive	DVD-ROM
USB Ports	8
Hard Drive	80 GB - 500 GB SATA
