Dell DD6300 - Page 60

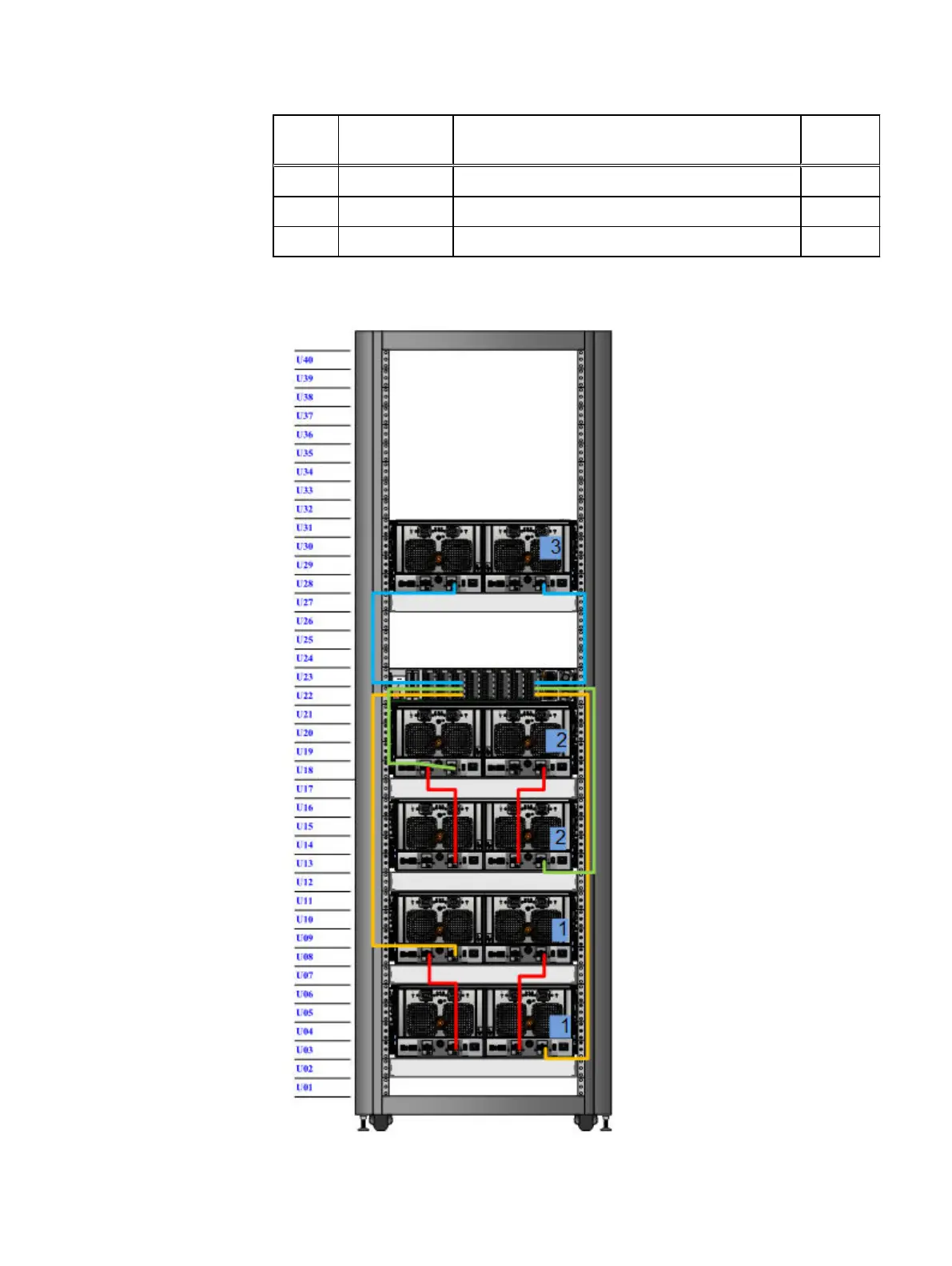

String
(Loop)
I/O - Port Shelf Port Length
a
2 I/O 2 - Port 1 B controller port 0 of the highest number shelf in V2 2M
3 I/O 7 - Port 2 A controller port 0 of shelf V3.1 2M
3 I/O 2 - Port 2 B controller port 0 of the highest number shelf in V3 2M
a.
Cable lengths shown are designed for Data Domain racks. Longer cables (up to 5M) can be
used.
Connect Cables and Power on
60 Data Domain DD6300, DD6800, and DD9300 Systems 6.1 Hardware Overview and Installation Guide
