Adding Parts 79

Card Removal

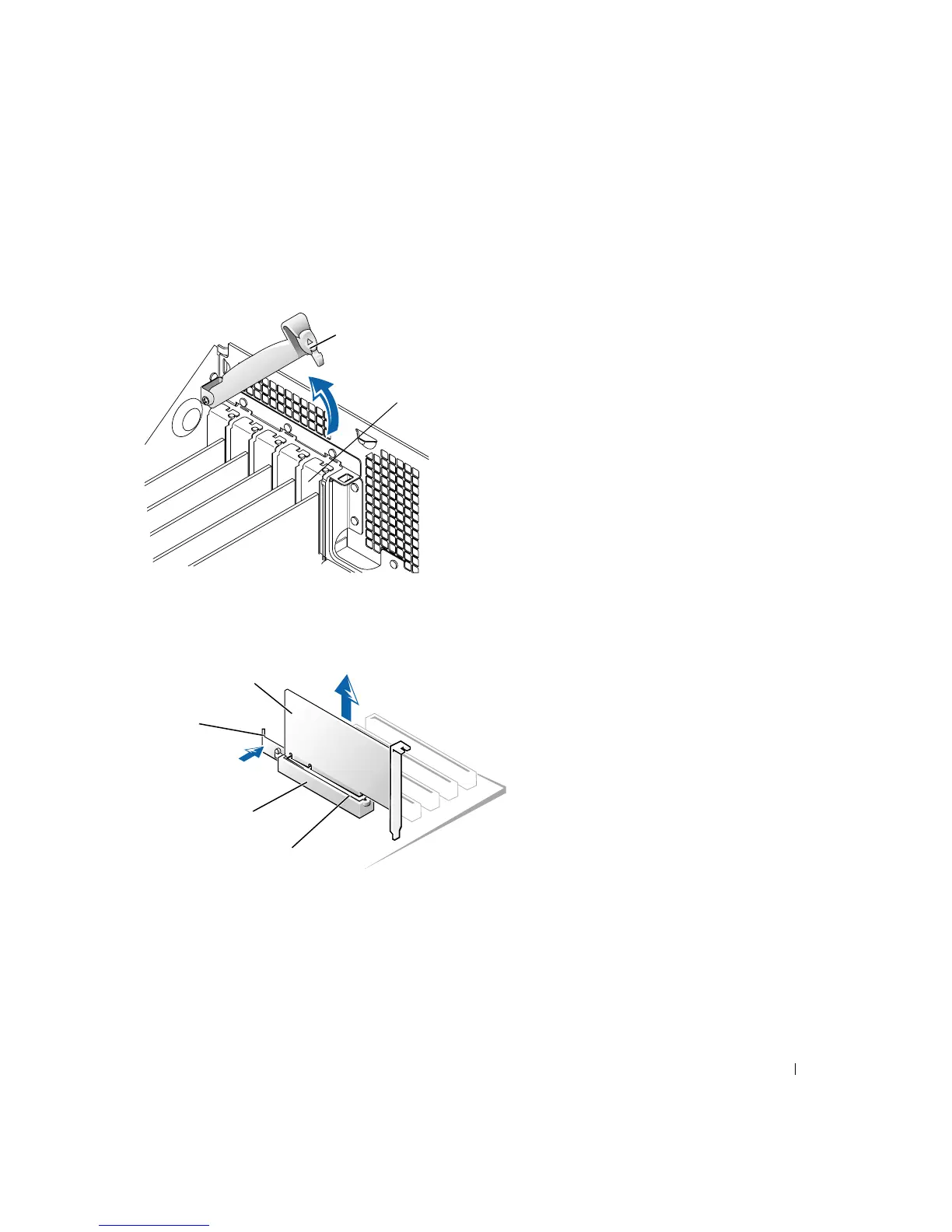

1 Remove the filler bracket by raising the card retention arm and sliding

the bracket up.

2 On the card clip, press the tab toward the card slot.

3 Pull the card up and out of the card clip.

tab

filler bracket

card clip

lever

AGP card

card clip

slot connector
