Dell Dimension 5100C - Power Supply DC Connector Pin Assignments; DC Power Connector P1

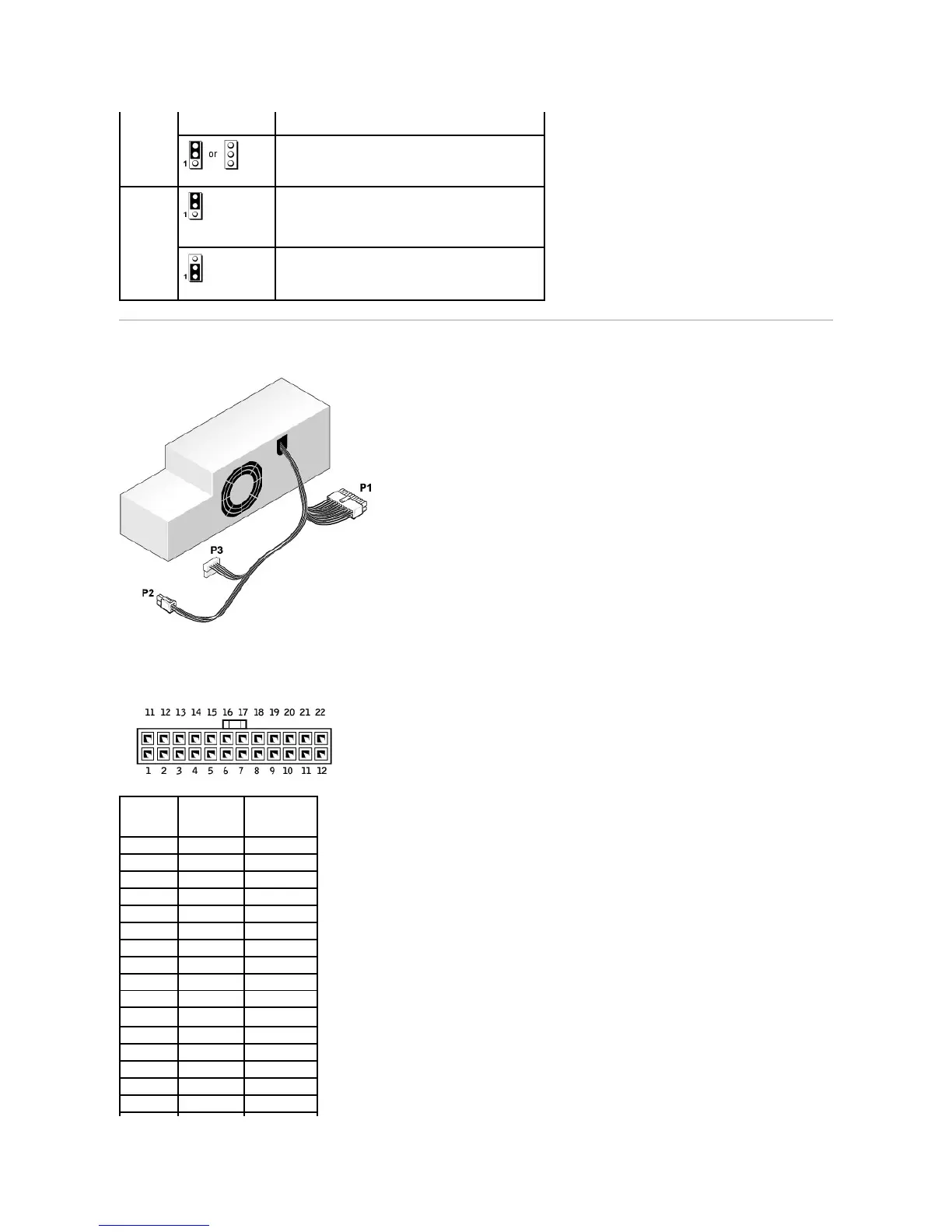

Power Supply DC Connector Pin Assignments

DC Power Connector P1
(default)
Password features are disabled.
RTCRST
(default)
Real-time clock reset in normal operation.
Clear CMOS settings.

Pin Number

Signal Name

18-AWG Wire
1
+3.3 VDC
Orange
2
+3.3 VDC
Orange
3
COM
Black
4
+5 VDC
Red
5
COM
Black
6
+5 VDC
Red
7
COM
Black
8
POK*
Gray
9
+5 VFB
Purple
10
+12 VDC
Yellow
11
+12 VDC
*
Yellow
12
+3.3 VDC
Orange
13
+3.3 VDC
Orange
14
-12 VDC
Blue
15
COM
Black
16
PS_ON*
Blue
