Removing and Installing Parts 91
3
Slide the card fan bracket onto the hooks on the inside of the computer cover.
4
Press the top edge of the card fan bracket toward the computer cover until it clicks.
5
Route the card fan cable through the cabling slots.
6
Plug the card fan cable into the card fan connector (PCI FAN) on the system board (see
page 75).
7
If you removed drive rails in step 2, you may attach them to the side of the card fan bracket
for convenient storage.
8
Close the computer cover (see page 107).
NOTICE: To connect a network cable, first plug the cable into the network device and then plug it into
the computer.
9
Connect your computer and devices to their electrical outlets, and then turn them on.

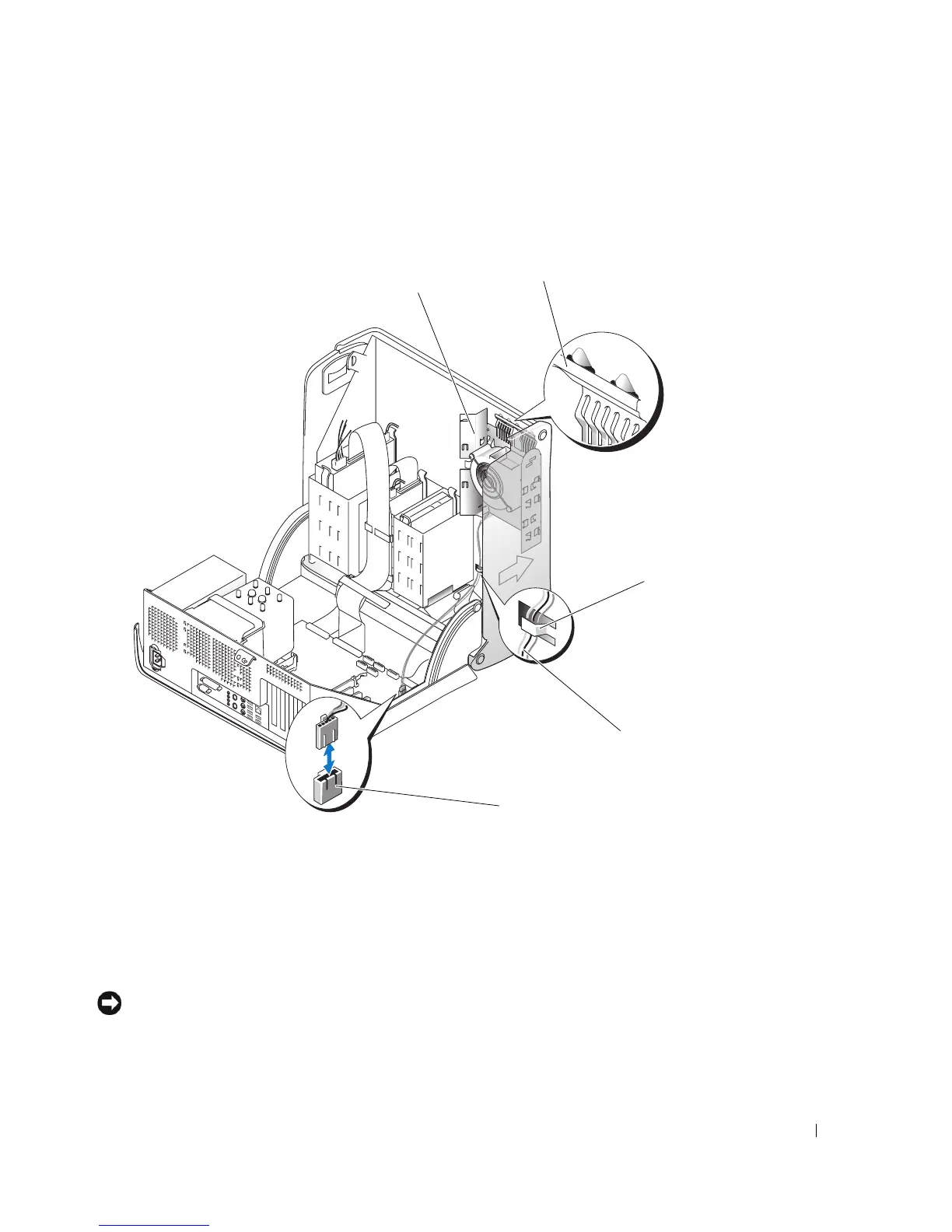

card fan bracket
top edge of
card fan bracket
card fan cable
cabling slot
card fan connector
on system board
