Removing and Installing Parts 99
4

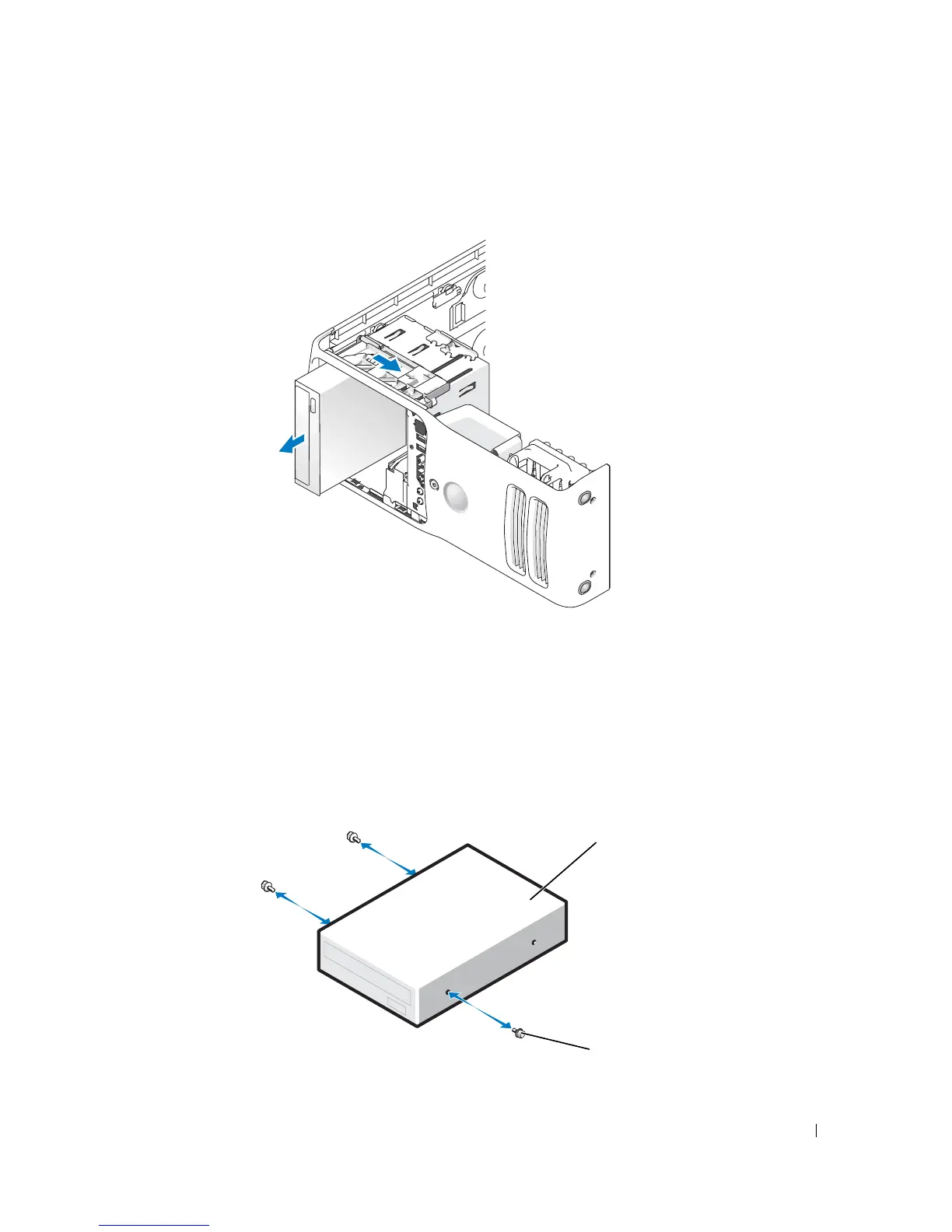

Slide the drive release mechanism to the right to release the shoulder screw and slide the drive
out to remove it from the drive bay.
Installing a CD/DVD Drive
1
If you are installing a new drive, unpack the drive and prepare it for installation.
Check the documentation that accompanied the drive to verify that the drive is configured
for your computer. If you are installing an IDE drive, configure the drive for the cable select
setting.
2
If you are installing a new drive, remove the three shoulder screws from the inside of the drive-
panel insert and attach the screws to the new drive.
CD/DVD drive
shoulder screws (3
