15" LCD Color Monitor Dell E157FPc
17

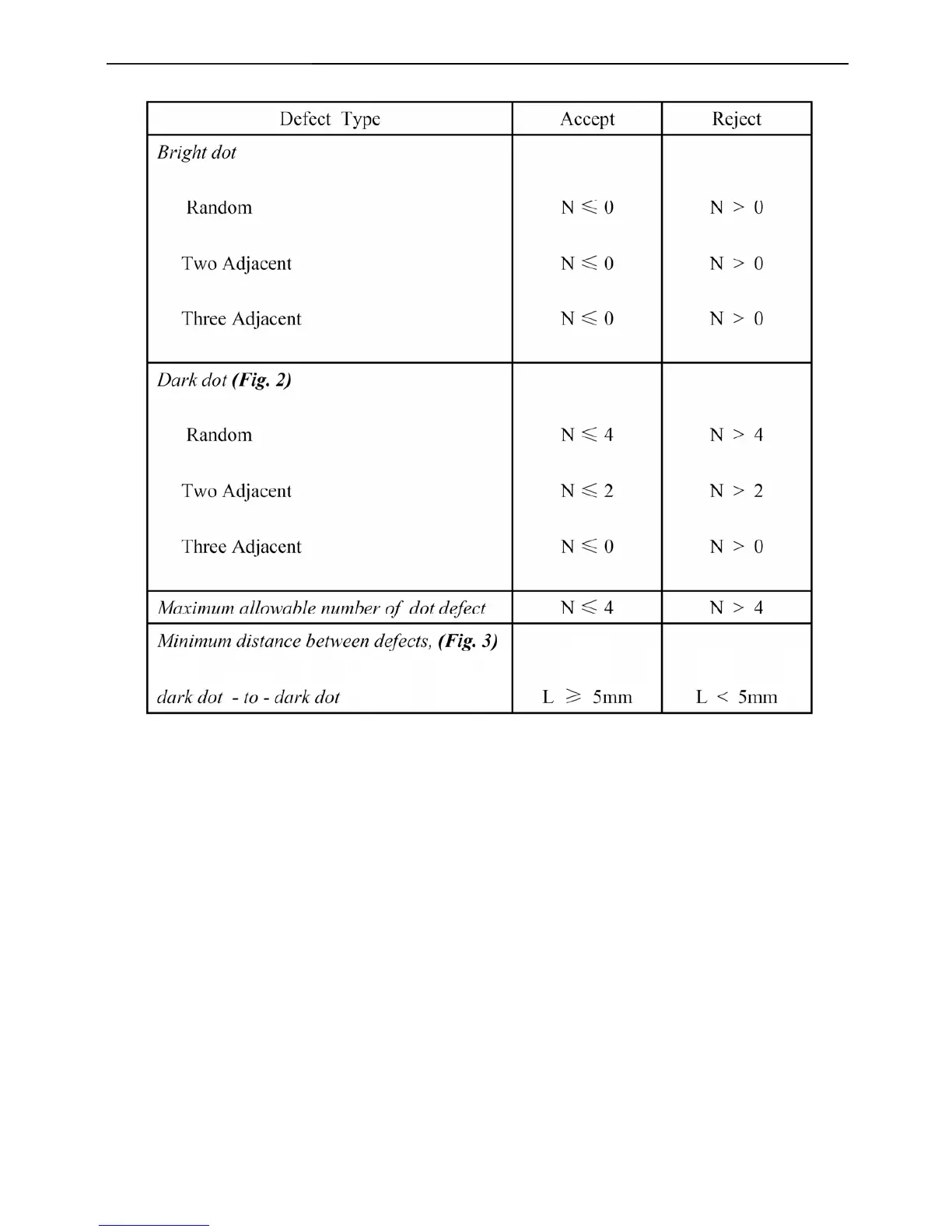

4.5.3 Electrical Inspection
[L: length, N: count]
Definitions/ Notes;
- A bright dot any Red, Green, or Blue pixel suck in the “On” mode.
- A dark dot any Red, Green, or Blue pixel suck in the “Off ” mode.
- Inspection pattern for electrical defect should be pure R, G, B, Black and White.
- Adjacent two dots in horizontal direction will be considered as one dot.
