Dell E2214H - Page 16

16  About Your Monitor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

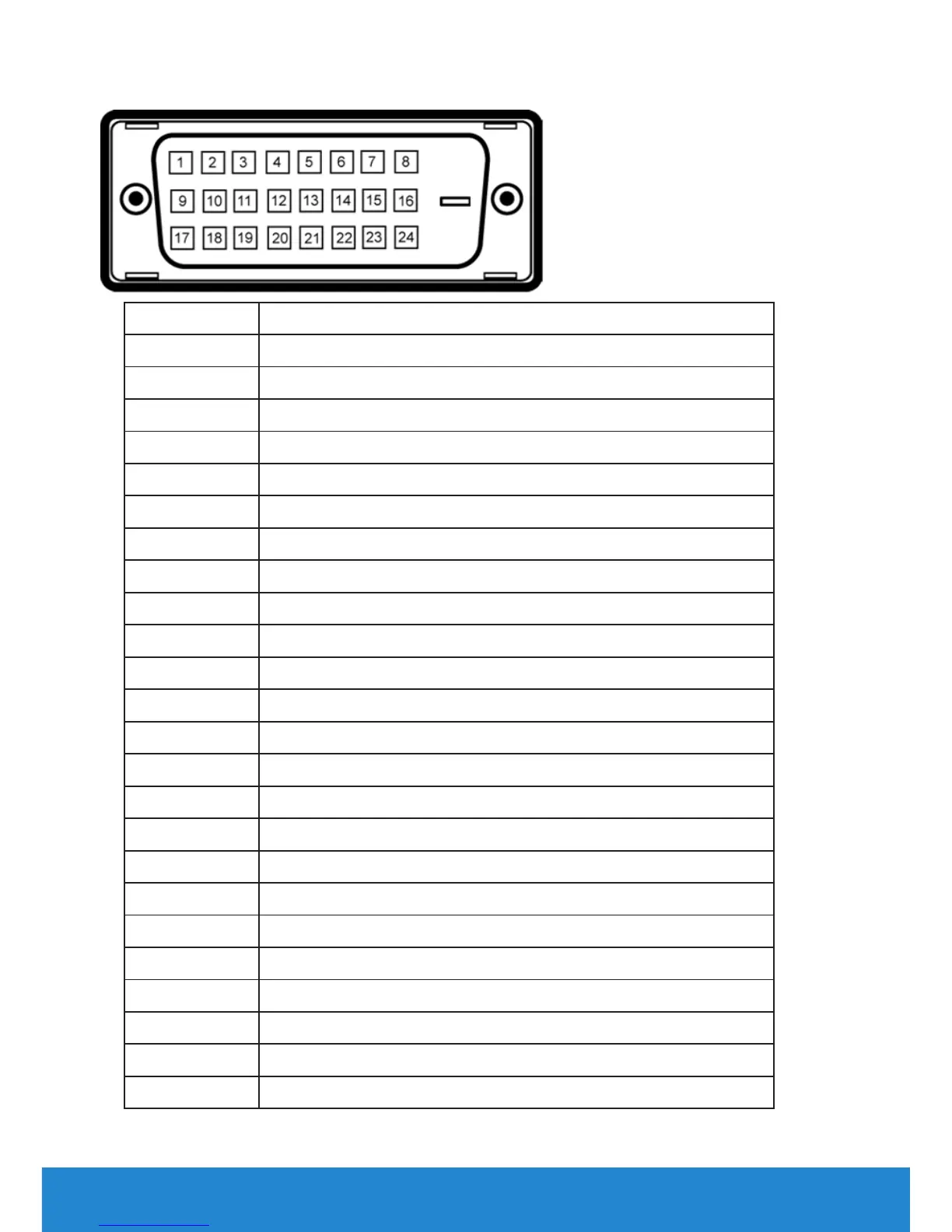

DVI Connector
Pin Number 24-pin Side of the Connected Signal Cable
TMDS RX2-
TMDS RX2+
TMDS Ground
Floating
Floating
DDC Clock
DDC Data
Floating
TMDS RX1-
TMDS RX1+
TMDS Ground
Floating
Floating
+5 V power
Self test
Hot Plug Detect
TMDS RX0-
TMDS RX0+
TMDS Ground
Floating
Floating
TMDS Ground
TMDS Clock+
TMDS Clock-
